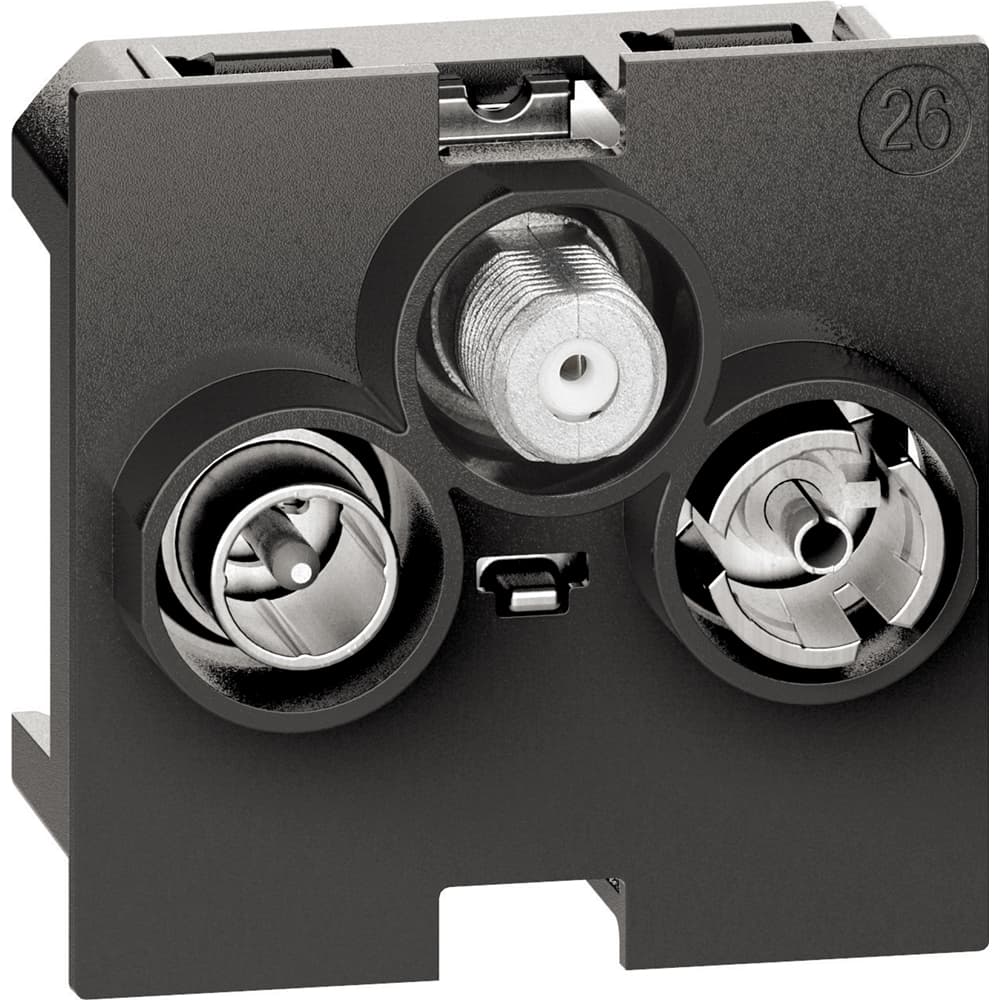

Star demixed TV-R-SAT sockets for DVB-T
رقم القطعة: BT-K4210M2D
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Star demixed TV-R-SAT sockets for DVB-T
المواصفات
| Built-in depth | 27.5 mm |
|---|---|
| Mounting method | Module frame |
| Colour | Black |
| Degree of protection (IP) | IP20 |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature (Min-Max) | -5-35 °C |
| Storage temperature (Min-Max) | -10-70 °C |
| Halogen free | Yes |
| Source URL | https://www.bticino.com/products/bt-k4210m2d |
| Part Number | K4210M2D |
| BTicino Category | TV sockets |
| BTicino Taxonomy Path | Switches, sockets and wiring devices > Living Now premium range > TV sockets |
| BTicino Series | Living NOW |
| Obsolete | No |
| New | No |
| Datasheet URL | https://assets.legrand.com/pim/NP-FT-GT/IDP001790_01-EN.pdf |
| Antimicrobial treatment | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Type of fastening | Snap mounting (engagement) |
| Model | Loop-through socket |
| Terminal marking indication | No |
| RAL-number (similar) | 7015 |
| Assembly arrangement | Basic element with central cover plate |
| Number of modules (module system) | 2 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device depth | 40 mm |
| Min. depth of built-in installation box | 37.5 mm |
| Type of socket outlet | TV/RD/SAT |
| Tap loss at 860 MHz | 1.5 dB |
| Number of outlets | 3 |
| Suitable for cable modem | No |
| Suitable for remote power supply | No |
| Tap loss at 2150 MHz | 2 dB |
| Radio frequency band (Min-Max) | 87.5-108 MHz |
| SAT frequency band (Min-Max) | 950-2400 MHz |
| TV frequency band (Min-Max) | 5-862 MHz |
