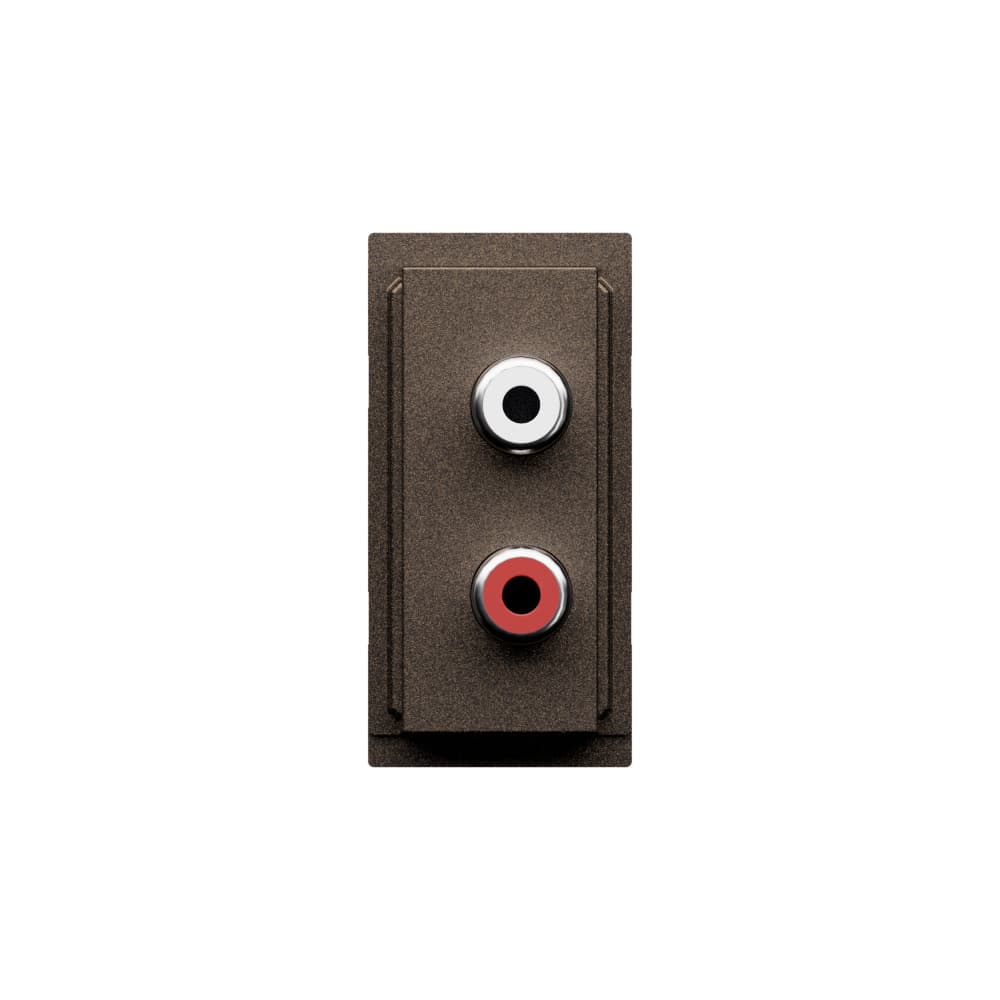

Audio Connector - double RCA module
رقم القطعة: BT-KB4269R
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Audio Connector - double RCA module
المواصفات
| Built-in depth | 21.5 mm |
|---|---|
| Mounting method | Flush-mounted |
| Colour | Bronze |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature (Min-Max) | -5-35 °C |
| Storage temperature (Min-Max) | -10-70 °C |
| Halogen free | Yes |
| Source URL | https://www.bticino.com/products/bt-kb4269r |
| Part Number | KB4269R |
| BTicino Category | Audio video connectors |
| BTicino Taxonomy Path | Switches, sockets and wiring devices > Living Now premium range > Audio video connectors |
| BTicino Series | Living NOW |
| Obsolete | No |
| New | Yes |
| Antimicrobial treatment | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Transparent | No |
| With hinged lid | No |
| Type of fastening | Engage (snap) |
| RAL-number (similar) | 8017 |
| With strain relief | No |
| Assembly arrangement | Basic element |
| Number of modules (module system) | 1 |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 22 mm |
| Device height | 45 mm |
| Device depth | 38 mm |
| Min. depth of built-in installation box | 31.5 mm |
| With lighting | No |
| Contact type | Female |
| Utilization | RCA |
| Support ring | No |
| With dust cover | No |
| Outlet direction | Straight |
| Imprintable label | Without indication field |
| Luster terminal | No |
| With buses/couplings | Yes |
| Suitable for number of connectors | 2 |
| Shielded buses | No |
| Shielded housing | No |
| Isolated connections | No |
