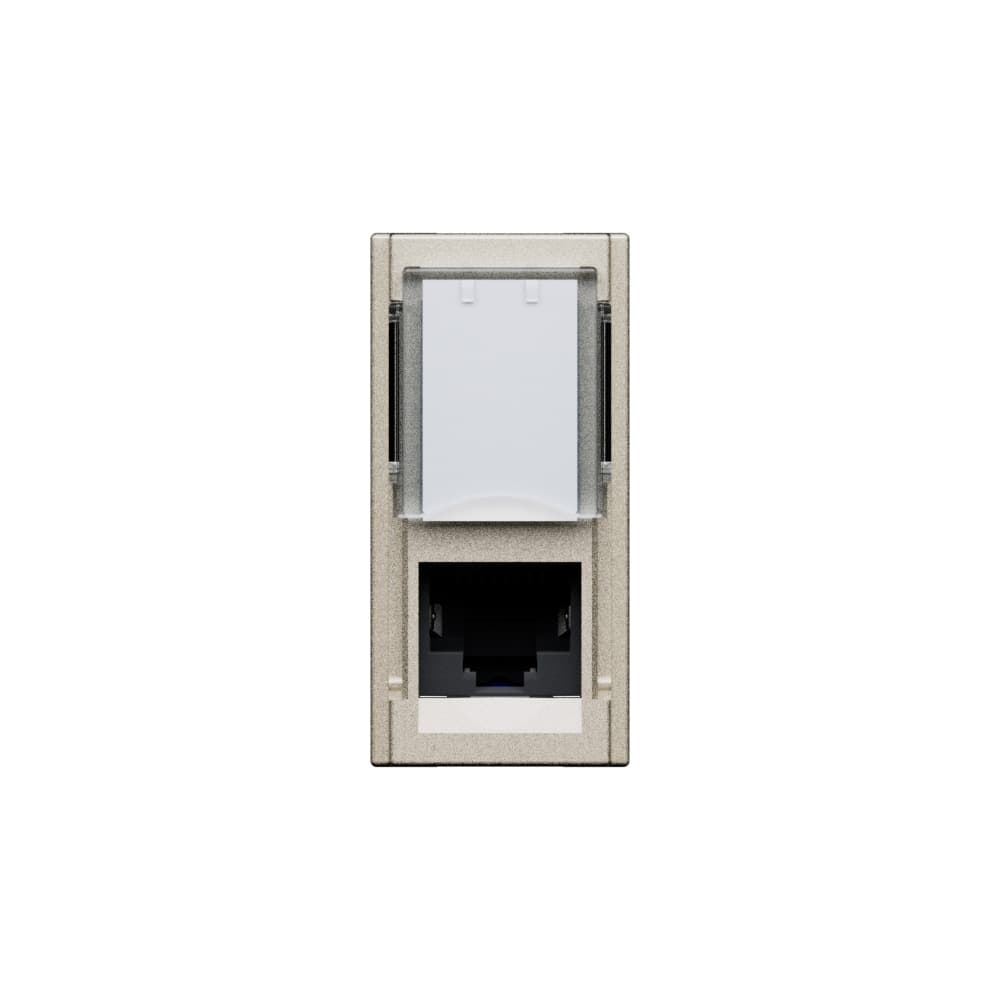

RJ45 connectors for data/telephony transmission 6 UTP
رقم القطعة: BT-KC4279C6
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
RJ45 connectors for data/telephony transmission 6 UTP
المواصفات
| Built-in depth | 31 mm |
|---|---|
| Mounting method | Flush-mounted |
| Colour | Gold |
| Degree of protection (IP) | IP20 |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature (Min-Max) | -5-35 °C |
| Storage temperature (Min-Max) | -10-70 °C |
| Halogen free | Yes |
| Vertical fixing center distance (Min-Max) | 0-0 mm |
| Horizontal fixing center distance (Min-Max) | 0-0 mm |
| Source URL | https://www.bticino.com/products/bt-kc4279c6 |
| Part Number | KC4279C6 |
| BTicino Category | RJ45 connectors |
| BTicino Taxonomy Path | Switches, sockets and wiring devices > Living Now premium range > Telephone and data sockets > RJ45 connectors |
| BTicino Series | Living NOW |
| Obsolete | No |
| New | Yes |
| Antimicrobial treatment | No |
| Flush-mounted installation | Yes |
| Type of fastening | Engage (snap) |
| Terminal marking indication | No |
| RAL-number | 1019 |
| Connection type | Insulation displacement connector |
| Cable support | Not applicable |
| Assembly arrangement | Basic element with central cover plate |
| Number of modules (module system) | 1 |
| Tube diameter for wall mounted product (Min-Max) | 0-0 mm |
| Maximum Input cable diameter | 9 mm |
| Entry membrane gland type | Not applicable |
| Device width | 22 mm |
| Device height | 45 mm |
| Device depth | 41 mm |
| Type of connector | RJ45 8(8) |
| Category | 6 |
| Surface mounting | No |
| With dust cover | Yes |
| Outlet direction | Straight |
| Duct installation | No |
| Floor box/subfloor mounted | No |
| With buses/couplings | Yes |
| Suitable for number of connectors | 1 |
| Shielded buses | No |
| Separate earthing connection | No |
| With label space | Yes |
| Separate strain relief | No |
| Mounting method shielding connection | None |
| Colour coding | Yes |
| Shielded housing | No |
| Mechanical coding | No |
| Compatible with third-party covers | No |
| With terminal resistor | No |
