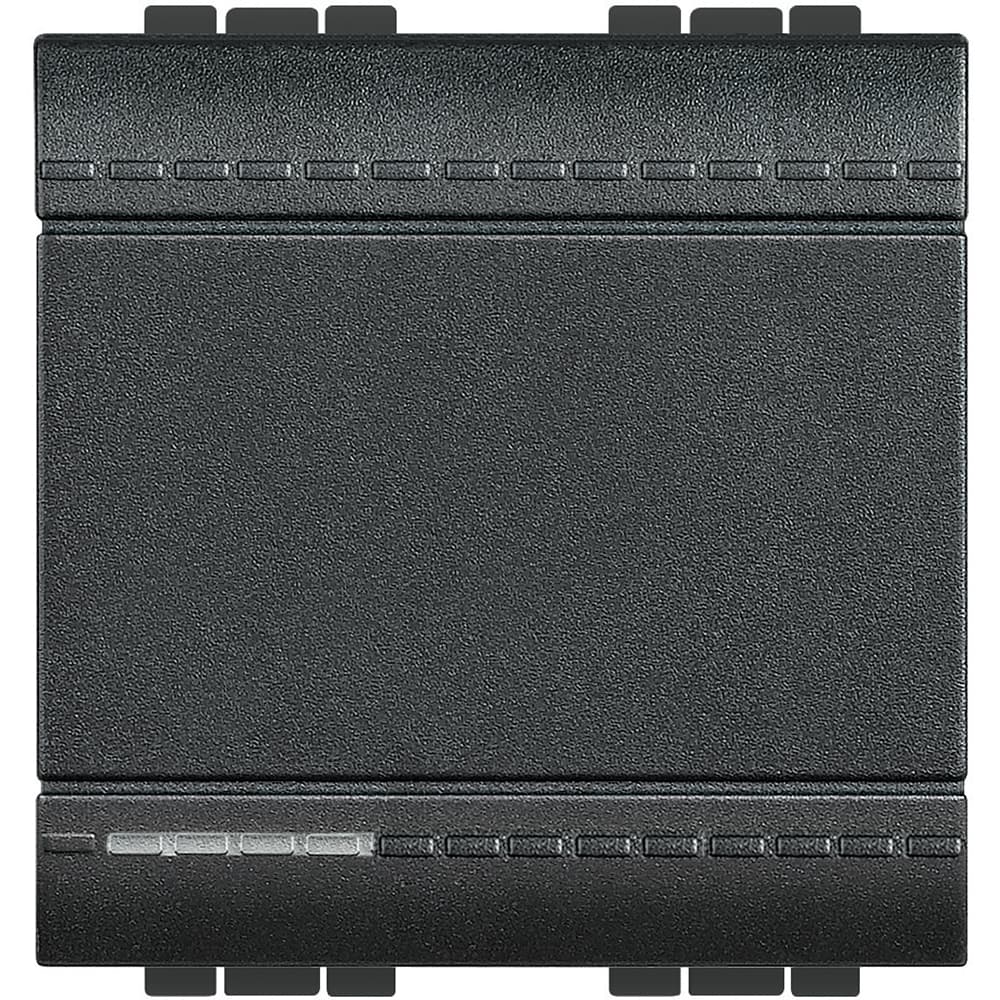

Changeover switch 1P with Light 16A 250 Vac
رقم القطعة: BT-L4004M2N
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Changeover switch 1P with Light 16A 250 Vac
المواصفات
| Built-in depth | 27 mm |
|---|---|
| Mounting method | Flush-mounted |
| Colour | Anthracite |
| Operating / setting temperature (Min-Max) | -5-35 °C |
| Storage temperature (Min-Max) | -5-35 °C |
| Voltage type | AC |
| Frequency (Min-Max) | 50-60 Hz |
| Halogen free | Yes |
| Cable section (Min-Max) | 2.5-2.5 mm² |
| Label space/information surface | No |
| Source URL | https://www.bticino.com/products/bt-l4004m2n |
| Part Number | L4004M2N |
| BTicino Category | Rocker inverters |
| BTicino Taxonomy Path | Switches, sockets and wiring devices > Livinglight premium range > Switch, two-way switch, pushbutton and key cover > Rocker inverters |
| BTicino Series | LivingLight |
| Obsolete | No |
| New | No |
| Datasheet URL | https://assets.legrand.com/pim/NP-FT-GT/F01528EN-00.pdf |
| Antimicrobial treatment | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Type of fastening | Other |
| Nominal voltage | 250 V |
| Connection type | Screwed terminal |
| RAL-number (similar) | 7016 |
| Assembly arrangement | Modular device for domestic switching devices |
| Wiring system | Intermediate switch |
| Method of operation | Rocker/button |
| Push button switch | No |
| Number of rockers | 1 |
| With mounting plate | No |
| Colour of switch operator | Anthracite |
| Lighting | No |
| Function lighting | Other |
| Type of lighting | Other |
| Suitable for degree of protection (IP) | IP20 |
| Rated current | 16 A |
| Switching current for fluorescent lamps | 16 AX |
| Monitoring contact | No |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 44 mm |
| Device height | 44 mm |
| Device depth | 38 mm |
| Min. depth of built-in installation box | 37 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
