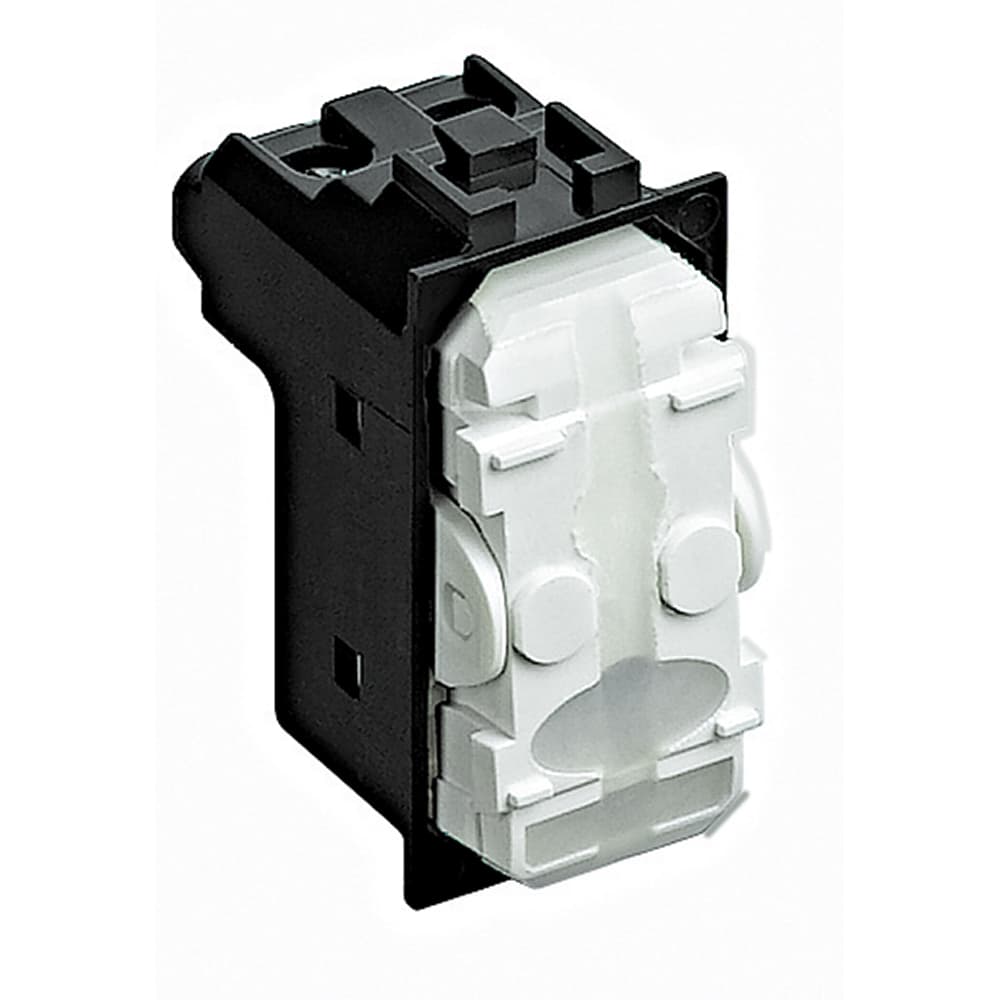

Pushbutton 1P NO 10 A 250 Vac to complete with Key cover
رقم القطعة: BT-L4005/0
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Pushbutton 1P NO 10 A 250 Vac to complete with Key cover
المواصفات
| Built-in depth | 24.6 mm |
|---|---|
| Mounting method | Module frame |
| Colour | Other |
| degree of impact strength (IK) | Other |
| Operating / setting temperature (Min-Max) | -5-35 °C |
| Storage temperature (Min-Max) | -5-35 °C |
| Voltage type | AC |
| Frequency (Min-Max) | 50-60 Hz |
| Halogen free | Yes |
| Cable section (Min-Max) | 2.5-2.5 mm² |
| Label space/information surface | No |
| With complemantary luminous signal | Yes |
| Source URL | https://www.bticino.com/products/bt-l4005-0 |
| Part Number | L4005/0 |
| BTicino Category | Rocker pushbuttons |
| BTicino Taxonomy Path | Switches, sockets and wiring devices > Livinglight premium range > Switch, two-way switch, pushbutton and key cover > Rocker pushbuttons |
| BTicino Series | Livinglight |
| Obsolete | No |
| New | No |
| Datasheet URL | https://assets.legrand.com/pim/NP-FT-GT/F01529EN-00.pdf |
| Antimicrobial treatment | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Transparent | No |
| Type of fastening | Other |
| Model | Single push button |
| Nominal voltage | 250 V |
| Connection type | Screwed terminal |
| Assembly arrangement | Basic element |
| Number of modules (module system) | 2 |
| Method of operation | Push button |
| Number of rockers | 1 |
| Suitable for degree of protection (IP) | IP20 |
| Rated current | 10 A |
| Monitoring contact | No |
| Device width | 22 mm |
| Device height | 44 mm |
| Device depth | 35.6 mm |
| Min. depth of built-in installation box | 40 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Contactless type | No |
| Number of poles | 1 |
| With lighting | Yes |
| Imprint | None |
