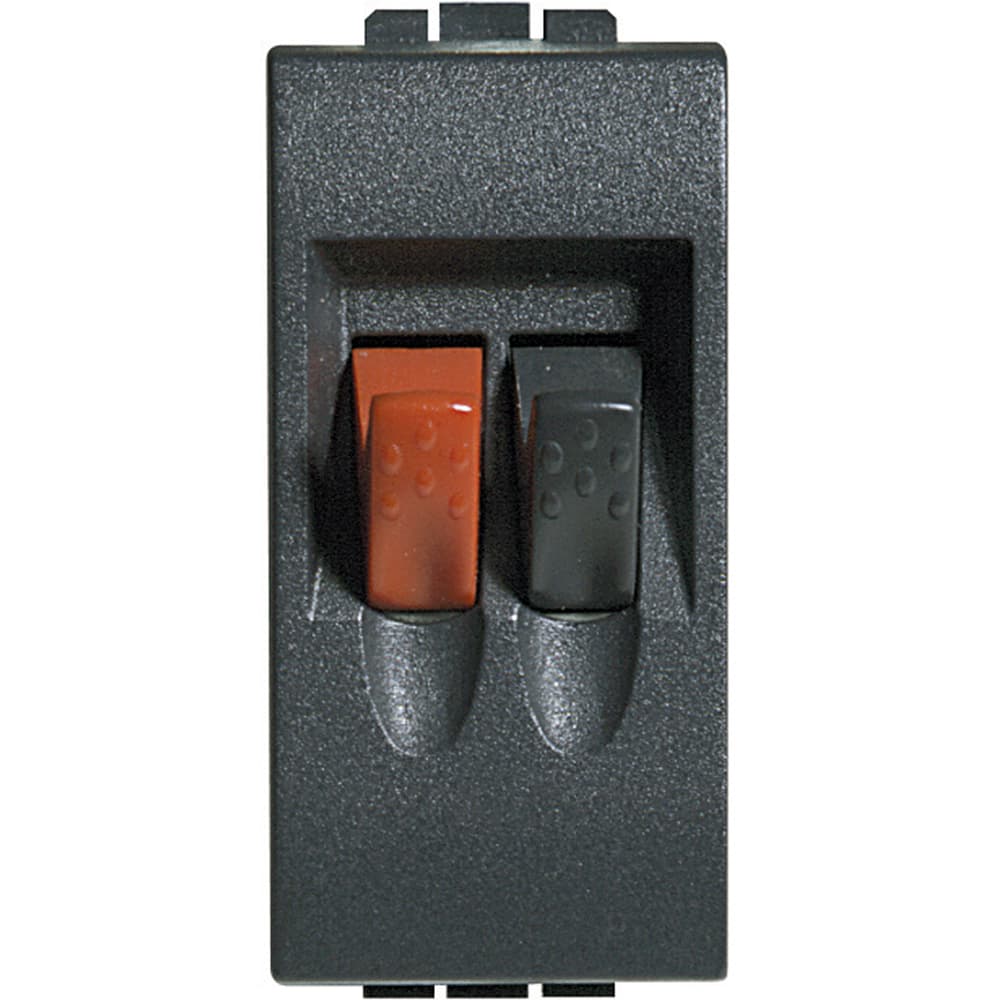

Connector for speakers home cinema
رقم القطعة: BT-L4294
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Connector for speakers home cinema
المواصفات
| Built-in depth | 14 mm |
|---|---|
| Mounting method | Flush-mounted |
| Colour | Anthracite |
| degree of impact strength (IK) | IK06 |
| Operating / setting temperature (Min-Max) | -5-50 °C |
| Storage temperature (Min-Max) | -10-70 °C |
| Halogen free | Yes |
| Source URL | https://www.bticino.com/products/bt-l4294 |
| Part Number | L4294 |
| BTicino Category | Audio video connectors |
| BTicino Taxonomy Path | Switches, sockets and wiring devices > Livinglight premium range > Telephone and data sockets > Audio video connectors |
| BTicino Series | Livinglight |
| Obsolete | No |
| New | No |
| Datasheet URL | https://assets.legrand.com/pim/DOCUMENT/Catalogue%20Livinglight_2M.pdf |
| Antimicrobial treatment | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Transparent | No |
| With hinged lid | No |
| Type of fastening | Engage (snap) |
| RAL-number (similar) | 7016 |
| With strain relief | No |
| Assembly arrangement | Basic element with central cover plate |
| Number of modules (module system) | 1 |
| Suitable for degree of protection (IP) | IP30 |
| Device width | 22 mm |
| Device height | 44 mm |
| Device depth | 33.5 mm |
| Utilization | Loudspeaker connection |
| Support ring | No |
| With dust cover | No |
| Outlet direction | Straight |
| Imprintable label | Without indication field |
| With imprint | Yes |
| Luster terminal | Yes |
