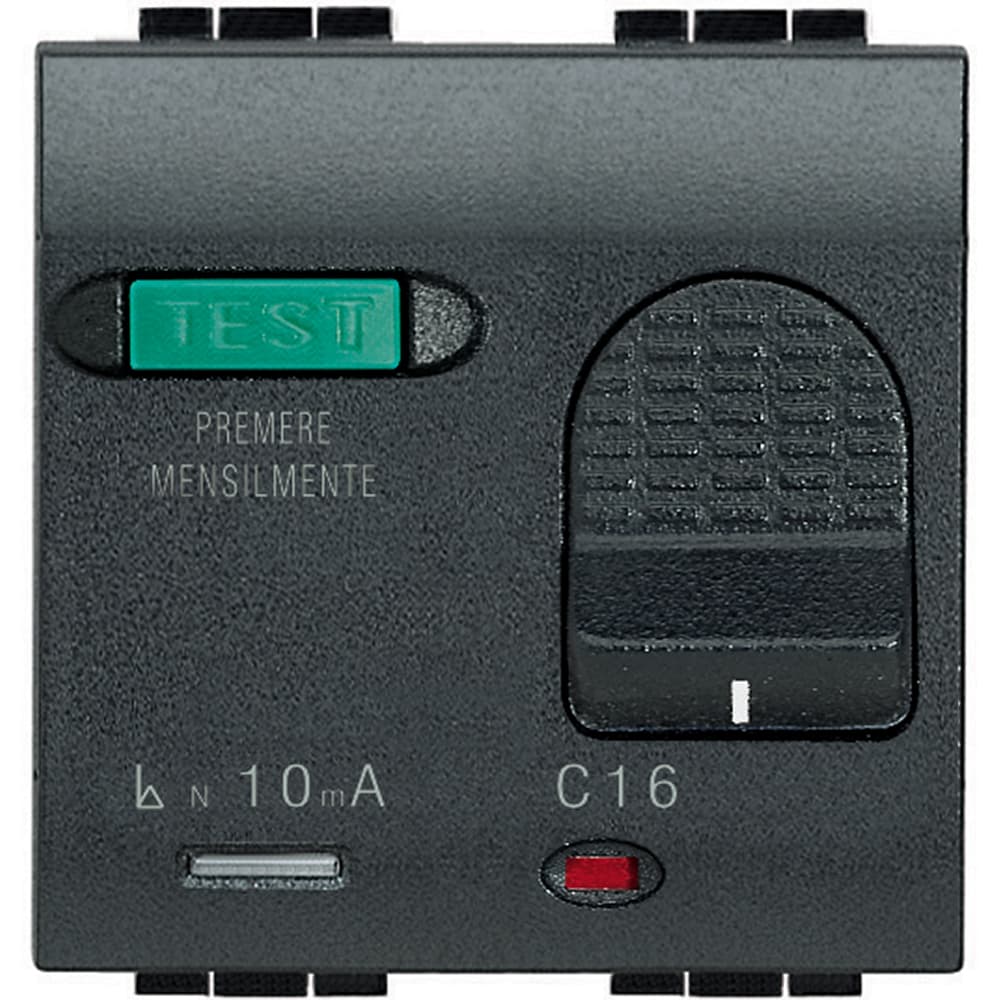

Salvavita thermal magnetic circuit breaker with earth leakage protection - 16A 230 Vac Icn 3kA
رقم القطعة: BT-L4305/16
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Salvavita thermal magnetic circuit breaker with earth leakage protection - 16A 230 Vac Icn 3kA
المواصفات
| Built-in depth | 33.5 mm |
|---|---|
| Degree of protection (IP) | IP20 |
| degree of impact strength (IK) | Not applicable |
| Storage temperature (Min-Max) | -10-70 °C |
| Source URL | https://www.bticino.com/products/bt-l4305-16 |
| Part Number | L4305/16 |
| BTicino Category | Salvavita earth leakage circuit breakers |
| BTicino Taxonomy Path | Switches, sockets and wiring devices > Livinglight premium range > Electrical safety devices > Salvavita earth leakage circuit breakers |
| BTicino Series | Livinglight |
| Obsolete | No |
| New | No |
| Datasheet URL | https://assets.legrand.com/pim/NP-FT-GT/B2912F.pdf |
| Width | 44 mm |
| Depth | 44.5 mm |
| Height | 44 mm |
| Connection type | Screwed terminal |
| Rated current | 16 A |
| Concurrently switching neutral conductor | Yes |
| Rated voltage | 230 V |
| Release characteristic | C |
| Number of poles (total) | 1 |
| Number of protected poles | 1 |
| Current limiting class | 1 |
| Ambient temperature during operating (Min-Max) | -5-50 °C |
| Connectable conductor cross section solid-core (Min-Max) | 2.5-2.5 mm² |
| Leakage current type | Other |
| Rated short-circuit breaking capacity according to EN 61009 | 3 kA |
| Rated short-circuit breaking capacity according to IEC 60947-2 | 3 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 3 kA |
| Frequency | 50/60 Hz |
