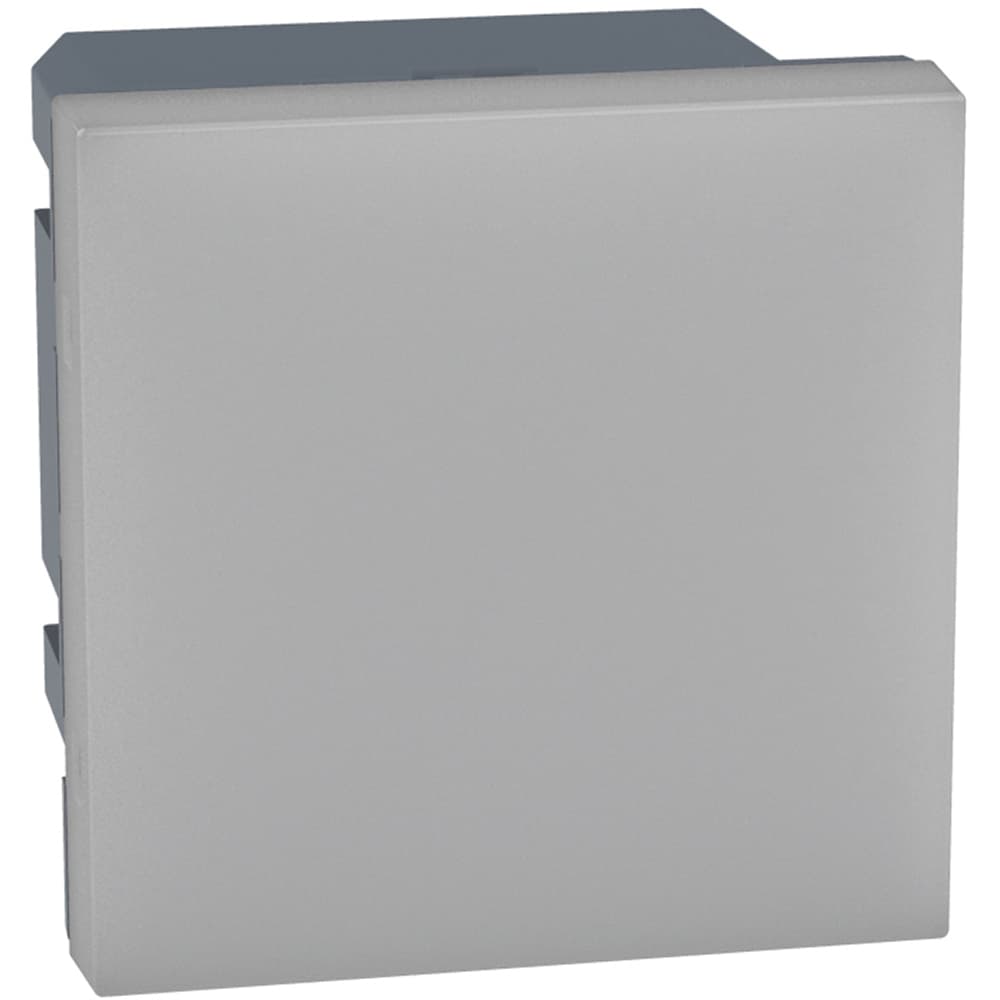

Flush Light indicator unit - red, green, blue, white colour - 2 modules
رقم القطعة: BT-Y4370V12
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Flush Light indicator unit - red, green, blue, white colour - 2 modules
المواصفات
| Built-in depth | 30.5 mm |
|---|---|
| Mounting method | Flush-mounted |
| Colour | Grey |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature (Min-Max) | -5-35 °C |
| Storage temperature (Min-Max) | -10-70 °C |
| Voltage type | AC |
| Frequency (Min-Max) | 50-60 Hz |
| Halogen free | Yes |
| Cable nature for connection | Flexible or rigid |
| Cable section (Min-Max) | 1.5-2.5 mm² |
| Label space/information surface | No |
| Source URL | https://www.bticino.com/products/bt-y4370v12 |
| Part Number | Y4370V12 |
| BTicino Category | Luminous and audible notification |
| BTicino Taxonomy Path | Switches, sockets and wiring devices > Light Now premium range > Luminous and audible notification |
| BTicino Series | Light NOW |
| Obsolete | No |
| New | No |
| Datasheet URL | https://assets.legrand.com/pim/NP-FT-GT/IDP001927_01-EN.pdf |
| Antimicrobial treatment | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Transparent | No |
| Type of fastening | Engage (snap) |
| Nominal voltage | 24 V |
| Terminal marking indication | No |
| Connection type | Screwed terminal |
| Terminals capacity (Min-Max) | 1.5-2.5 mm² |
| RAL-number (similar) | 7030 |
| Assembly arrangement | Complete device |
| Number of modules (module system) | 2 |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device depth | 38.5 mm |
| Min. depth of built-in installation box | 40.5 mm |
| Mandatory neutral | No |
| Stress test conformity (1000V) | No |
| With light source | Yes |
| Lamp holder | None |
| With flashlight | No |
| With fixed symbol/imprint | No |
| With exchangeable symbol | No |
| Application as button | No |
| Colour light source | Other |
| Max. lamp power | 0.5 W |
| Lamp type | LED not exchangeable |
