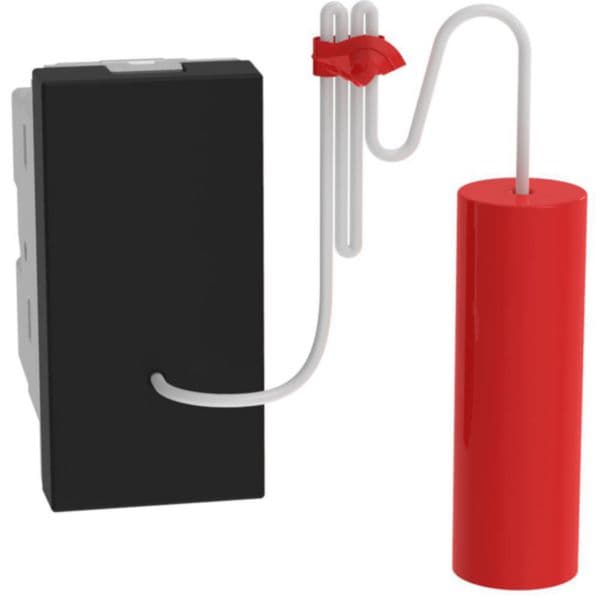

Cord pushbutton 1P NO/NC 10 A 250 V - cord length 1,8 m - 1 module - dark
رقم القطعة: BT-YD4033
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Cord pushbutton 1P NO/NC 10 A 250 V - cord length 1,8 m - 1 module - dark
المواصفات
| Built-in depth | 27 mm |
|---|---|
| Mounting method | Flush-mounted |
| Colour | Black |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature (Min-Max) | -5-35 °C |
| Storage temperature (Min-Max) | -10-70 °C |
| Voltage type | AC |
| Frequency (Min-Max) | 50-60 Hz |
| Halogen free | Yes |
| Cable nature for connection | Flexible or rigid |
| Cable section (Min-Max) | 1.5-2.5 mm² |
| Label space/information surface | No |
| With complemantary luminous signal | No |
| Source URL | https://www.bticino.com/products/bt-yd4033 |
| Part Number | YD4033 |
| BTicino Category | Other pushbuttons |
| BTicino Taxonomy Path | Switches, sockets and wiring devices > Light Now premium range > Other control devices > Other pushbuttons |
| BTicino Series | Light NOW |
| Obsolete | No |
| New | No |
| Datasheet URL | https://assets.legrand.com/pim/NP-FT-GT/IDP001864_01-EN.pdf |
| Antimicrobial treatment | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Transparent | Yes |
| Type of fastening | Engage (snap) |
| Model | Single push button |
| Nominal voltage | 250 V |
| Terminal marking indication | No |
| Connection type | Screwed terminal |
| Terminals capacity (Min-Max) | 1.5-2.5 mm² |
| RAL-number (similar) | 9011 |
| Assembly arrangement | Basic element |
| Number of modules (module system) | 1 |
| Method of operation | Pull cord |
| Number of rockers | 1 |
| Suitable for degree of protection (IP) | IP20 |
| Rated current | 10 A |
| Monitoring contact | No |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Device depth | 35 mm |
| Min. depth of built-in installation box | 37 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Contactless type | No |
| Number of poles | 1 |
| With lighting | No |
| Imprint | None |
| Mandatory neutral | No |
| With light source | No |
| Operating principle | Electromechanical |
| Number of revolving contacts | 0 |
