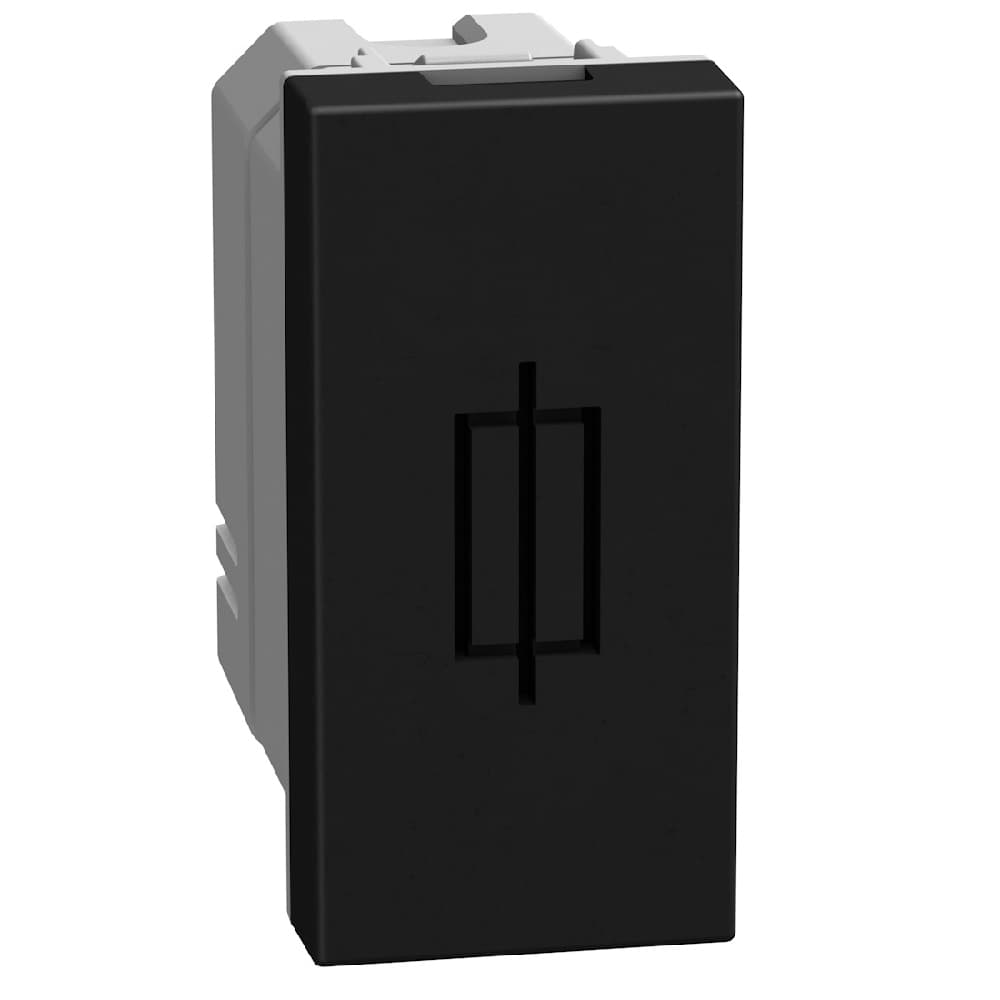

Fuse-carrier for 5 x 20 and 6.3 x 32 fuse - 1 module - dark
رقم القطعة: BT-YD4321
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Fuse-carrier for 5 x 20 and 6.3 x 32 fuse - 1 module - dark
المواصفات
| Built-in depth | 31 mm |
|---|---|
| Mounting method | Front mounting |
| Colour | Black |
| Degree of protection (IP) | IP20 |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature (Min-Max) | -5-35 °C |
| Storage temperature (Min-Max) | -10-70 °C |
| Voltage type | AC |
| Nominal voltage (Min-Max) | 230-250 V |
| Supply current (Min-Max) | 10-13 A |
| Frequency (Min-Max) | 50-60 Hz |
| Halogen free | Yes |
| Cable nature for connection | Flexible or rigid |
| Cable section (Min-Max) | 1.5-2.5 mm² |
| Source URL | https://www.bticino.com/products/bt-yd4321 |
| Part Number | YD4321 |
| BTicino Category | Electrical safety devices |
| BTicino Taxonomy Path | Switches, sockets and wiring devices > Light Now premium range > Electrical safety devices |
| BTicino Series | Light NOW |
| Obsolete | No |
| New | No |
| Datasheet URL | https://assets.legrand.com/pim/DOCUMENT/Brochure_LHNOW_2M.pdf |
| Antimicrobial treatment | No |
| Width | 22.5 mm |
| Depth | 39 mm |
| Height | 45 mm |
| Terminal marking indication | No |
| RAL-number | 9011 |
| Connection type | Other |
| Terminals capacity (Min-Max) | 1.5-2.5 mm² |
| Rated current | 13 A |
| Type of current | AC |
| Number of terminals | 2 |
| Mandatory neutral | No |
| Rated voltage | 250 V |
| Dimensions glass fuse | 6.3x32 mm |
