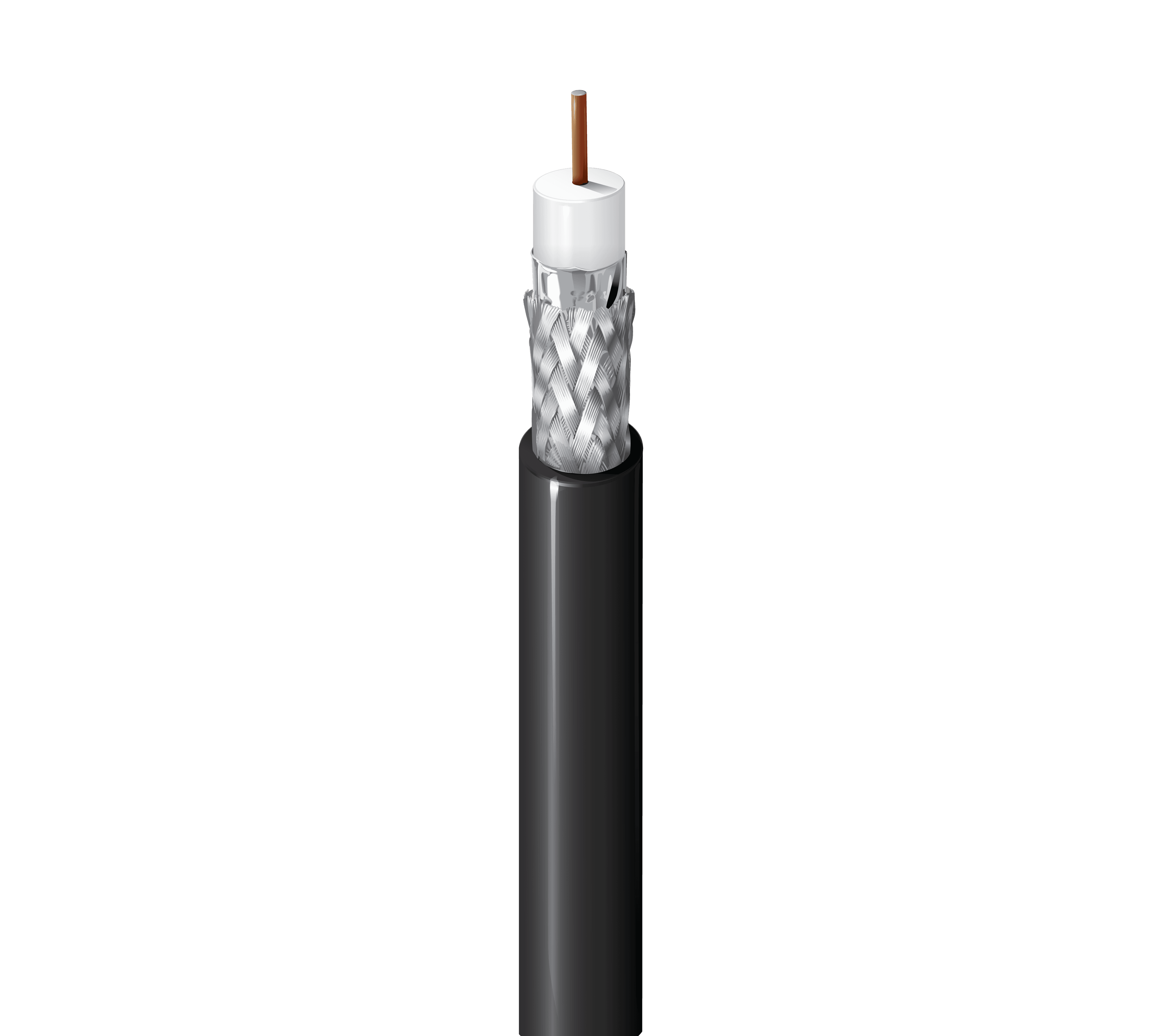

50 Ohm Wireless Transmission Coax, RF 400, RG-8, 10 AWG Solid BCCA, Foil + 95% TC Braid, PE Jkt

Name: 50 Ohm Wireless Transmission Coax, RF 400, RG-8, 10 AWG Solid BCCA, Foil + 95% TC Braid, PE Jkt
Brand: Belden
SKU: 7810A

رقم القطعة: 7810A

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

50 Ohm Wireless Transmission Coax, RF 400, RG-8, 10 AWG Solid BCCA, Foil + 95% TC Braid, PE Jkt

Update and Revision	Revision Number: 0.529 Revision Date: 02-20-2026
Source URL	https://www.belden.com/products/cable/coax-triax-cable/50-ohm-coax-cable/7810a
Belden Taxonomy Path	cable > coax-triax-cable > 50-ohm-coax-cable
Belden Category	cable
Belden Subcategory	coax-triax-cable
Belden Sub-subcategory	50-ohm-coax-cable
Datasheet URL	https://catalog.belden.com/techdata/EN/7810A_techdata.pdf
CEC / C(UL) Compliance	.
Frequency	Max. VSWR
Suitable Applications	Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)
Max. Pull Tension	145 lbs (65.8 kg)
Bulk Cable Weight	77 lbs/1000ft
Environmental Suitability	Outdoor, Outdoor, Sunlight Resistance, UV Resistance, Aerial - When supported by messenger wire
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Footnote	C - CRATE REEL PUT-UP.
RoHS Document URL	https://catalog.belden.com/assets/docs/7810A_rohs.pdf
Overall Cable Diameter (Nominal)	0.403 in (10.2 mm)
PE - Polyethylene	0.403 in (10.2 mm)
Sustainability	CA Prop 65
RG Type	8
