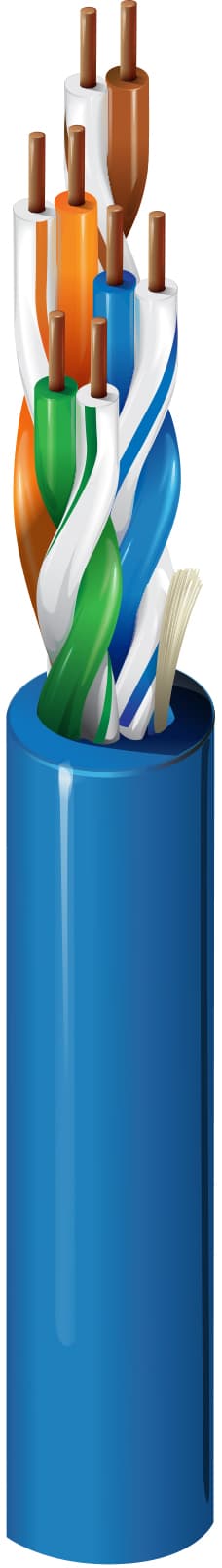

CAT 5E 4P 24AWG, U/UTP, LSZH Jkt, Indoor

Name: CAT 5E 4P 24AWG, U/UTP, LSZH Jkt, Indoor
Brand: Belden
SKU: 1583ANS

رقم القطعة: 1583ANS

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

CAT 5E 4P 24AWG, U/UTP, LSZH Jkt, Indoor

Update and Revision	Revision Number: 0.52 Revision Date: 02-20-2026
Source URL	https://www.belden.com/products/cable/ethernet-cable/category-5e-cable/1583ans
Belden Taxonomy Path	cable > ethernet-cable > category-5e-cable
Belden Category	cable
Belden Subcategory	ethernet-cable
Belden Sub-subcategory	category-5e-cable
Datasheet URL	https://catalog.belden.com/techdata/EN/1583ANS_techdata.pdf
CEC / C(UL) Compliance	.
Suitable Applications	Premise Horizontal Cable, 1000BaseT, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422
Max. Pull Tension	110 N (25 lbf)
Bulk Cable Weight	32.5 kg/km (21.8 lbs/1000ft)
Environmental Suitability	Indoor, Indoor, Non-Halogenated, Oil Resistance
Flammability / Reaction to Fire	IEC 60332-1-2
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2)
APAC Compliance	China RoHS II (GB/T 26572-2011)
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
NEMA Compliance	NEMA WC-63.1 Category 5E
Data Category	Category 5e
TIA/EIA Compliance	ANSI/TIA 568.2-D
ISO/IEC Compliance	ISO/IEC 11801-1, IEC 61156-5
