FX Brilliance OM4 ST Erika Violet Connector
رقم القطعة: FX Brilliance OM4 ST EV
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
FX Brilliance OM4 ST Erika Violet Connector
المواصفات
| Weight | 0.004 kg |
|---|---|
| Update and Revision | Revision Number: 0.53 Revision Date: 02-20-2026 |
| Source URL | https://www.belden.com/products/cable/fiber-optic-cable/breakout-fiber-cable/fx-brilliance-om4-st-ev |
| Belden Taxonomy Path | cable > fiber-optic-cable > breakout-fiber-cable |
| Belden Category | cable |
| Belden Subcategory | fiber-optic-cable |
| Belden Sub-subcategory | breakout-fiber-cable |
| Datasheet URL | https://catalog.belden.com/techdata/EN/FXBrillianceOM4STEV_techdata.pdf |
| Part Number (normalized) | FXBrillianceOM4STEV |
| Suitable Applications | Field-termination of fiber optic cables within Patch Panels, Distribution Frames, Workstation Outlets for FTTD (Fiber to the Desk), drops for FTTH (Fiber to the home) and MDU (Multiple Dwelling Units). |
| Notes | Refer to Installation Guide PX105234 for installation procedures. Fiber can be reterminated up to 5 times with the same connector. |
| Operating Temperature Range | -40°C to +75°C |
| Environmental Space | Indoor |
| MII Order #39 (China RoHS) | EUP 50 |
| Storage Temperature Range | -40°C to +60°C |
| TIA/EIA Compliance | TIA 568-C.3 |
| Test | TIA 568.3-D (MM) |
| Intermateability Requirement | Compliant with TIA/EIA-604-3 (FOCIS 3) |
| Operating Temp Range | -40°C to +75°C |
| Storage Temp Range | -40°C to +60°C |
| Durability | 500 cycles, less than 0.2 dB change, FOTP-21 |
| Maximum Insertion Loss | 0.50 dB |
| Typical Insertion Loss | 0.20 dB |
| Minimum Reflectance @ 1550nm | -30 dB |
| Termination Style | Mechanical |
| Durabilities@Termination1 | 500 cycles, less than 0.2 dB change, FOTP-21 |
| Ferrule | Ceramic |
| Safety Listing | ACA |
| Included Parts | 900 µm boot, dust cap |
| Related Parts | FX Brilliance Precision Installation Kit, Boots for 2mm and 3mm Jacketed Fiber, 250µm to 900µm break out kits. |
| Packaging | Individually packaged in a sealed plastic bag. Twenty-five (25) connectors come in a dust and moisture resistant blister package. |
منتجات مشابهة
الكابلات والأسلاكBelden
FX Brilliance OM4 SC Erika Violet Connector
اطلب عرض سعر
Belden

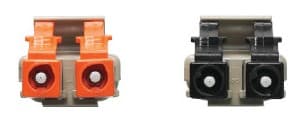

FX Brilliance OS2 LC Keyed Connector
