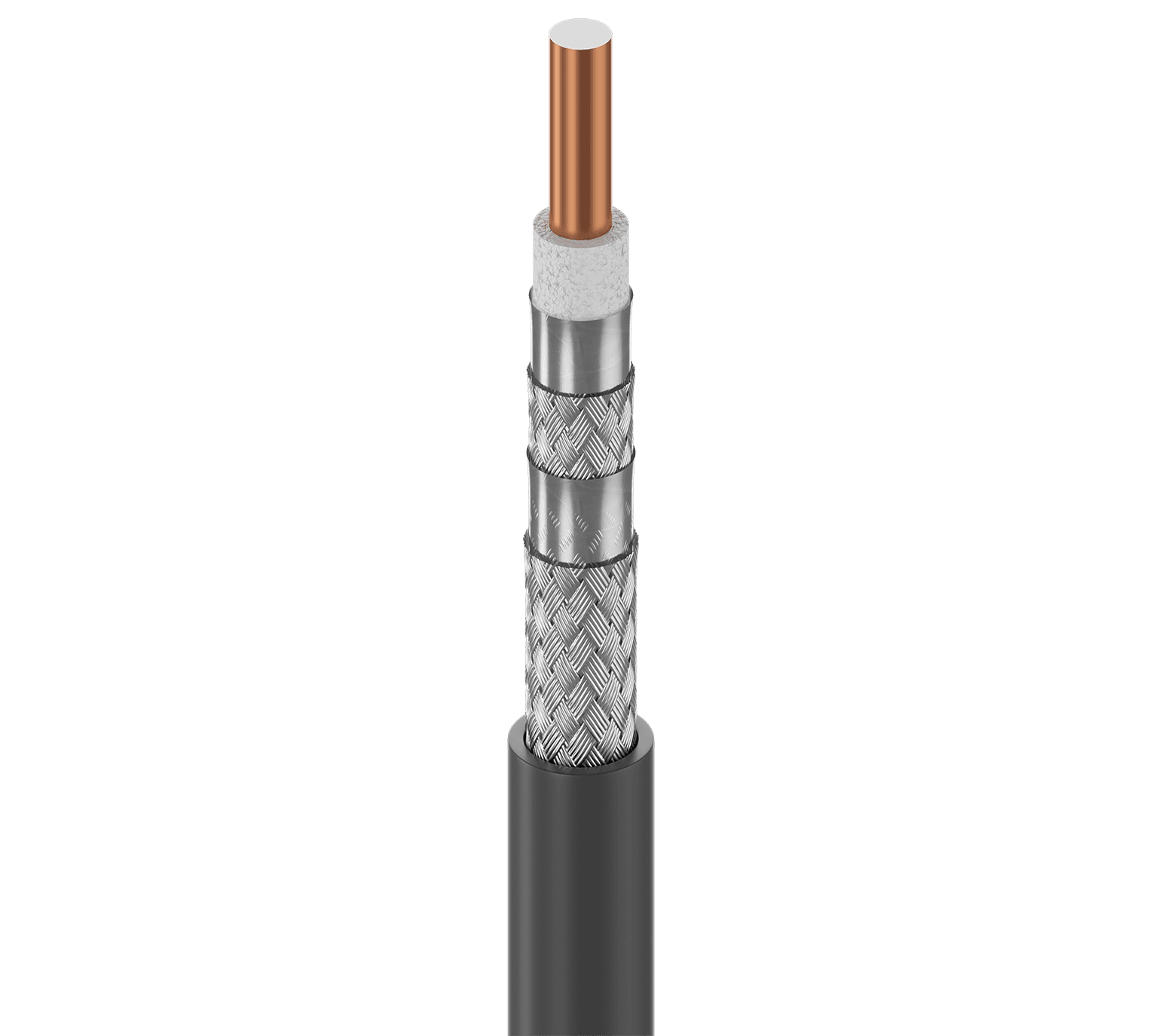

ControlBus™, Coax RG-6, #18 Sol BCCS, FPE Ins, QUAD AL Shld, PVC Jkt, CMR

Name: ControlBus™, Coax RG-6, #18 Sol BCCS, FPE Ins, QUAD AL Shld, PVC Jkt, CMR
Brand: Belden
SKU: 3092A

رقم القطعة: 3092A

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

ControlBus™, Coax RG-6, #18 Sol BCCS, FPE Ins, QUAD AL Shld, PVC Jkt, CMR

المواصفات

Update and Revision	Revision Number: 0.602 Revision Date: 02-20-2026
Source URL	https://www.belden.com/products/cable/fieldbus-cable/modbus-cable/3092a
Belden Taxonomy Path	cable > fieldbus-cable > modbus-cable
Belden Category	cable
Belden Subcategory	fieldbus-cable
Belden Sub-subcategory	modbus-cable
Datasheet URL	https://catalog.belden.com/techdata/EN/3092A_techdata.pdf
CEC / C(UL) Compliance	CMG.
Frequency	Min. Structural Return Loss
Suitable Applications	Harsh environment, factory automation, ControlNet™, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications
PVC - Polyvinyl Chloride	0.303 in (7.70 mm)
Max. Pull Tension	162 lbs (73.5 kg)
Bulk Cable Weight	33 lbs/1000ft
Environmental Suitability	Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Aerial - When supported by messenger wire
Flammability / Reaction to Fire	UL1666 Vertical Shaft
NEC / UL Compliance	CMR, CL2R, CMG
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Footnote	C - CRATE REEL PUT-UP.
RoHS Document URL	https://catalog.belden.com/assets/docs/3092A_rohs.pdf
CPR Compliance	CPR Euroclass: Eca
UK Regulation Compliance	UKCA Mark
Overall Cable Diameter (Nominal)	0.303 in (7.70 mm)
UL Temperature	Operating
Plenum Number	3093A
Sustainability	CA Prop 65
RG Type	6
