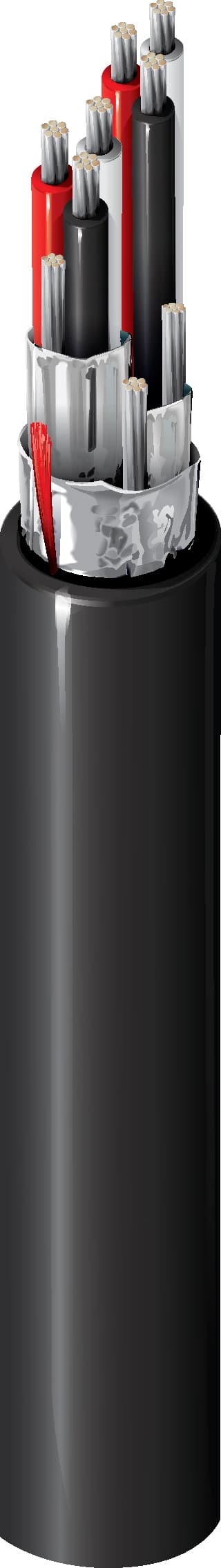

CIC 300V, 1 Tri #18 Str TC, PVC Ins E1, OS, Blk PVC Jkt, 105C Dry 75C Wet SUN RES -25C

Belden

CIC 300V, 1 Tri #18 Str TC, PVC Ins E1, OS, Blk PVC Jkt, 105C Dry 75C Wet SUN RES -25C

رقم القطعة: 22677

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

CIC 300V, 1 Tri #18 Str TC, PVC Ins E1, OS, Blk PVC Jkt, 105C Dry 75C Wet SUN RES -25C

المواصفات

Update and RevisionRevision Number: 0.407 Revision Date: 06-10-2026
Source URLhttps://www.belden.com/products/cable/instrumentation-cable/acic-cable/22677
Belden Taxonomy Pathcable > instrumentation-cable > acic-cable
Belden Categorycable
Belden Subcategoryinstrumentation-cable
Belden Sub-subcategoryacic-cable
Datasheet URLhttps://catalog.belden.com/techdata/EN/22677_techdata.pdf
Bulk Cable Weight121 lbs/1000ft
Conductor Count3
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Shield
Non-UL Temp Rating105°C
Operating Temperature Range-40°C To +105°C
Maximum Recommended Pulling Tension23 lbs
Minimum Minor Axis Bend Radius3 in
EU Directive 2000/53/EC (ELV)Yes
EU Directive 2003/11/EC (BFR)Yes
EU Directive 2011/65/EU (RoHS 2)Yes
EU Directive 2012/19/EU (WEEE)Yes
EU Directive ComplianceEU Directive 2003/11/EC (BFR)
EU CE MarkYes
MII Order #39 (China RoHS)Yes
Suitability - IndoorYes
Plenum (Y/N)No
CEC/C(UL) ComplianceCIC
Suitability - OutdoorYes
Suitability - Sunlight ResistanceYes
Installation Temperature Range-25°C To +105
CSA/C(UL) FlammabilityFT4
CSA AWM ComplianceC22.2#239, Type CIC, C22.2#0.3, Clause 4.31, Low Acid Test
Max. Outer Shield DCRNominal Conductor DCR
Non-UL DescriptionNon-UL Voltage Rating
Drainwire AWGDrainwire Construction n x D
Total Number of Triads1
CSA CIC300 V
