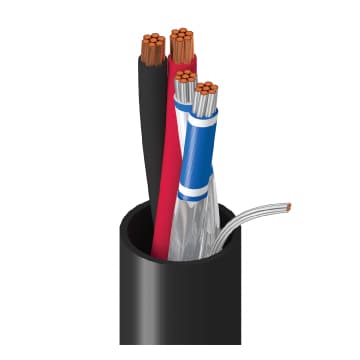

Access Control, 16c (#18-3pr, #16-4c, #18-6c), Shielded, Outer Jacket, CMP

Name: Access Control, 16c (#18-3pr, #16-4c, #18-6c), Shielded, Outer Jacket, CMP
Brand: Belden
SKU: 638AFJ

رقم القطعة: 638AFJ

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Access Control, 16c (#18-3pr, #16-4c, #18-6c), Shielded, Outer Jacket, CMP

Update and Revision	Revision Number: 0.108 Revision Date: 05-31-2024
Source URL	https://www.belden.com/products/cable/safety-sound-security/access-control-cable/638afj
Belden Taxonomy Path	cable > safety-sound-security > access-control-cable
Belden Category	cable
Belden Subcategory	safety-sound-security
Belden Sub-subcategory	access-control-cable
Datasheet URL	https://catalog.belden.com/techdata/EN/638AFJ_techdata.pdf
CEC / C(UL) Compliance	CMP.
Suitable Applications	Access Control, Security System, Power Limited Controls
Max. Pull Tension	253 lbs (115 kg)
Bulk Cable Weight	181 lbs/1000ft (269 kg/km)
Environmental Suitability	Indoor - Plenum, Indoor
Flammability / Reaction to Fire	NFPA 262
NEC / UL Compliance	Article 800, CMP
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
RoHS Document URL	https://catalog.belden.com/assets/docs/638AFJ_rohs.pdf
Overall Cable Diameter (Nominal)	0.582 in (14.8 mm)
Non-Plenum Number	538AFJ
