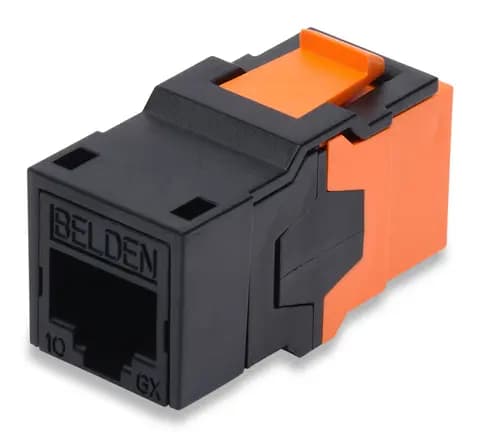

DataTuff Industrial REVConnect Coupler CAT6A UTP

Name: DataTuff Industrial REVConnect Coupler CAT6A UTP
Brand: Belden
SKU: Ind REVConn C6A UTP Couplers

رقم القطعة: Ind REVConn C6A UTP Couplers

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

DataTuff Industrial REVConnect Coupler CAT6A UTP

المواصفات

Overall Width	0.63
Overall Height	0.87
Overall Depth	1.43
Weight	0.018 lbs
Update and Revision	Revision Number: 0.172 Revision Date: 09-19-2024
Source URL	https://www.belden.com/products/connectors/copper-rj45-connectors/copper-rj45-couplers/ind-revconn-c6a-utp-couplers
Belden Taxonomy Path	connectors > copper-rj45-connectors > copper-rj45-couplers
Belden Category	connectors
Belden Subcategory	copper-rj45-connectors
Belden Sub-subcategory	copper-rj45-couplers
Datasheet URL	https://catalog.belden.com/techdata/EN/IndREVConnC6AUTPCouplers_techdata.pdf
Part Number (normalized)	IndREVConnC6AUTPCouplers
Suitable Applications	TIA Category 6A, ISO Class EA, 10GBASE-T
Notes	Please see Installation Guide PX106876.
Operating Temperature Range	-40°C To +70°C
Environmental Space	Indoor
MII Order #39 (China RoHS)	EUP 50
UL Flammability	UL2043 Air Handling Spaces
Storage Temperature Range	-40°C To +70°C
IEEE Compliance	Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
TIA/EIA Compliance	Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2
Installation Temperature Range	-40°C To +70°C
Item #	Color
UL Rating	UL94V-0
Safety Listing	c(UL)us Listed
Related Parts	Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels
Packaging	Individually packaged in a plastic bag.
Current Rating	1.500 A
Insulation Resistance	500 M-Ohm Minimum
EU Directive 2002/95/EC (RoHS)	Yes
Connector System Compatibility	KeyConnect
Tool Compatibility	RVUTT01 Termination Tool
Wiring Scheme	T568A/B
Dielectric Strength	1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)
Max Contact Resistance	20 mOhm
Connector Body	Polycarbonate - UL94V-0
Termination Resistance	2.5 m-Ohm
Termination Front Connection	Mated Connection
Termination Front Connection Durability	200 cycles
Termination Rear Connection	Mated Connection
Termination Rear Connection Durability	200 cycles
Connector/Hardware Retention	20 lbs
Cable/Connector Retention	25 lbs.
Plug/Connector Retention	11.250 lbs
RVAIU2UBK-S1	Black
RVAIU2UEW-S1	Electric White
