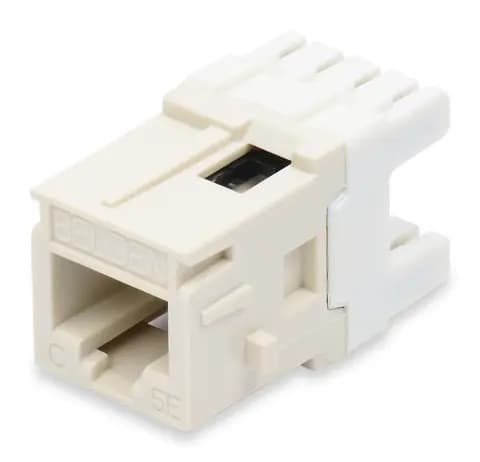

CAT5E Modular Jack, RJ45, KeyConnect Style

Name: CAT5E Modular Jack, RJ45, KeyConnect Style
Brand: Belden
SKU: CAT5E KEYCONNECT JACKS

رقم القطعة: CAT5E KEYCONNECT JACKS

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

CAT5E Modular Jack, RJ45, KeyConnect Style

المواصفات

Overall Width	0.64 in
Overall Height	0.88 in
Overall Depth	1.29 in
Weight	0.014 lbs
Update and Revision	Revision Number: 0.360 Revision Date: 02-20-2026
Source URL	https://www.belden.com/products/connectors/copper-rj45-connectors/copper-rj45-jacks/cat5e-keyconnect-jacks
Belden Taxonomy Path	connectors > copper-rj45-connectors > copper-rj45-jacks
Belden Category	connectors
Belden Subcategory	copper-rj45-connectors
Belden Sub-subcategory	copper-rj45-jacks
Datasheet URL	https://catalog.belden.com/techdata/EN/CAT5EKEYCONNECTJACKS_techdata.pdf
Part Number (normalized)	CAT5EKEYCONNECTJACKS
Suitable Applications	IBDN System 1200, TIA Category 5E, ISO Class D, 1000 BASE-T
Notes	Please see Installation Guide PX103329
Operating Temperature Range	-10°C to +60°C
Environmental Space	Indoor
MII Order #39 (China RoHS)	EUP 50
Storage Temperature Range	-40°C to +70°C
Data Category	Category 5e
TIA/EIA Compliance	Category 5 - ISO/IEC 11801:2002 Ed.2
Installation Temperature Range	-10°C to +60°C
Third Party Performance Verification	ETL - Verified Category 5e
Other Standards	FCC Part 68, Subpart F, IEC 60603-7
Safety Listing	ACA, c(UL)us Listed
Included Parts	1 T-Bar
Related Parts	Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels
Packaging	Individually packaged in a plastic bag. Standard pack of 50 units.
Current Rating	1.500 A
Insulation Resistance	500 M-Ohm Minimum
EU Directive 2002/95/EC (RoHS)	Yes
Connector System Compatibility	KeyConnect
Tool Compatibility	Belden 110 Connecting Tool, MediaFlex Termination Station
Wiring Scheme	T568A/B
Dielectric Strength	1,000V RMS @ 60 Hz for 1 minute
Max Contact Resistance	20 mOhm
Plug /Jack Compatibility	RJ45, RJ11
Connector Body	Plastic - UL940V-0
Termination Resistance	2.5 mOhm
Termination Front Connection	Mated Connection
Termination Front Connection Durability	1,000 cycles
Termination Rear Connection	Gas Tight IDC Connection
Termination Rear Connection Durability	20 terminations
Connector/Hardware Retention	20 lbs
Plug/Connector Retention	11.250 lbs
