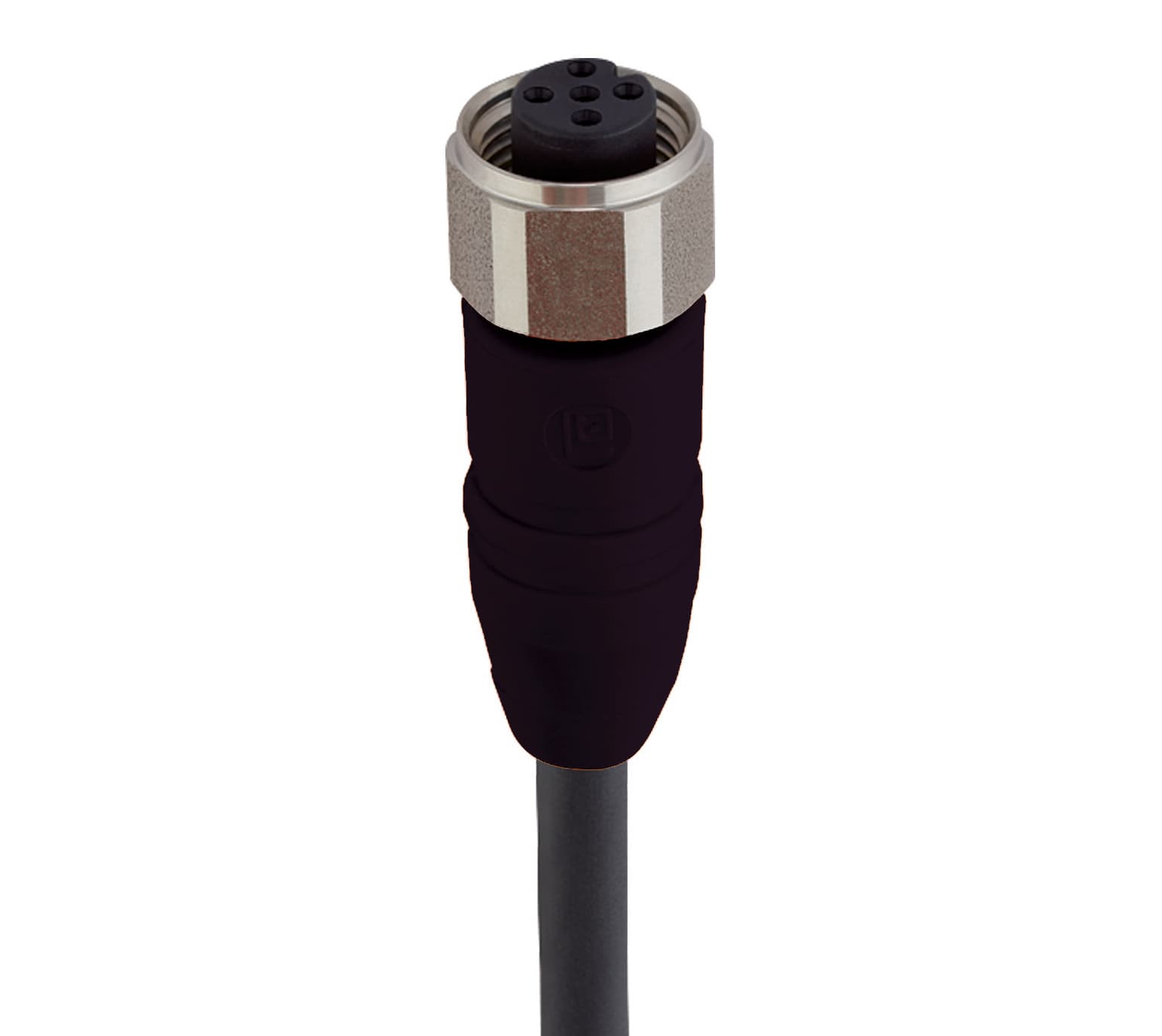

CANopen / DeviceNet Data Single-Ended Cordset: M12 Standard, female, straight, 5-pin, A-coded, black
رقم القطعة: 0935 253 122
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
CANopen / DeviceNet Data Single-Ended Cordset: M12 Standard, female, straight, 5-pin, A-coded, black body, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, Data: 2x0.25 mm² + Power: 2x0.34 mm²
المواصفات
| Source URL | https://www.belden.com/products/connectors/industrial-connectors/data-connectors/0935-253-122 |
|---|---|
| Belden Taxonomy Path | connectors > industrial-connectors > data-connectors |
| Belden Category | connectors |
| Belden Subcategory | industrial-connectors |
| Belden Sub-subcategory | data-connectors |
| Datasheet URL | https://catalog.belden.com/techdata/EN/0935253122_techdata.pdf |
| Operating Voltage | 50 V AC / 60 V DC |
| Part Number (normalized) | 0935253122 |
| RoHS Compliant | yes |
| Conductor Size | Data: 2x0.25 mm² + Power: 2x0.34 mm² |
| Voltage Rating | 60 V |
| Shielding Type | Unshielded |
| Product Family | Data Connectors |
| Side 1 Product Sub Family | M12 Standard |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Female |
| Connector Design | Straight |
| Number of Pins | 5 |
| Coding, Side 1 | A |
| Attachment Type | Coupling Nut |
| Rated Impulse Voltage | 1.5 kV |
| Current Rating | 4 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 80 °C |
| Protection Degree / IP Rating** | IP65, IP67, IP68 (1 m / 24 h), IP69K |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | CuSn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | TPU |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | TPU |
| Molded Body Color | Black |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | Stainless Steel |
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
| Cable Number | 253 |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 1 M |
| Conductor Material | Cu |
| Cable Jacket Material | PUR |
| Cable Jacket Color | black matt similarly RAL 9005 |
| Cable Diameter D | ø 6.70 ± 0.20 mm |
| Wire Insulation Material | Data: PE + Power: PE or PP |
| Insulated Wire Diameter | Data: ø 2.05 ± 0.10 mm + Power: ø 1.40 ± 0.05 mm |
| Ambient Temperature (Fixed Installation) | - 50 °C - + 80 °C |
| Ambient Temperature (Flex Installation) | - 25 °C - + 80 °C |
| Ambient Temperature (Drag Chain Inst) | - 25 °C - + 60 °C |
| UL Cable Type | AWM: 20549 or 21198 |
| Flammability Class (Cable Jacket) | DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, UL VW-1, CSA FT-1 |
| Cable Characteristics | Exclusion of dangerous materials; Line construction acc. CAN-Bus and DeviceNET specification; Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Good chemical and oil resistance; Exclusion of PVC and Silicone; Free of lacquer wetting disturbing substances; Coldness flexibility |
| Halogenfree | DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1 |
| Note Derating | Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
| Data Transmission Type | CANopen / DeviceNet |
| Core Colors | Data: blue, white + Power: red, black |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Element Shield | Al-PT Foil |
| Foil shield | Al-PT Foil |
منتجات مشابهة
الموصلات والنهايات
Belden

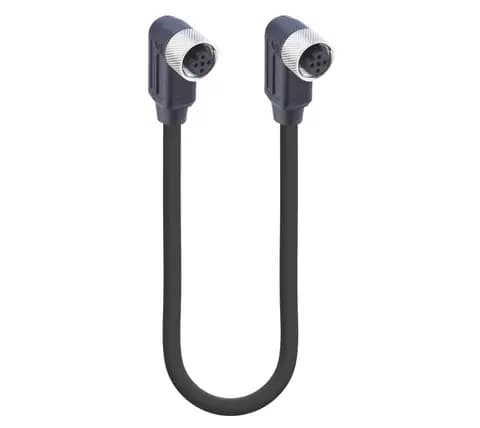

CANopen / DeviceNet Data Double-Ended Cordset: Male angled A-coded black M12 Standard to female stra
