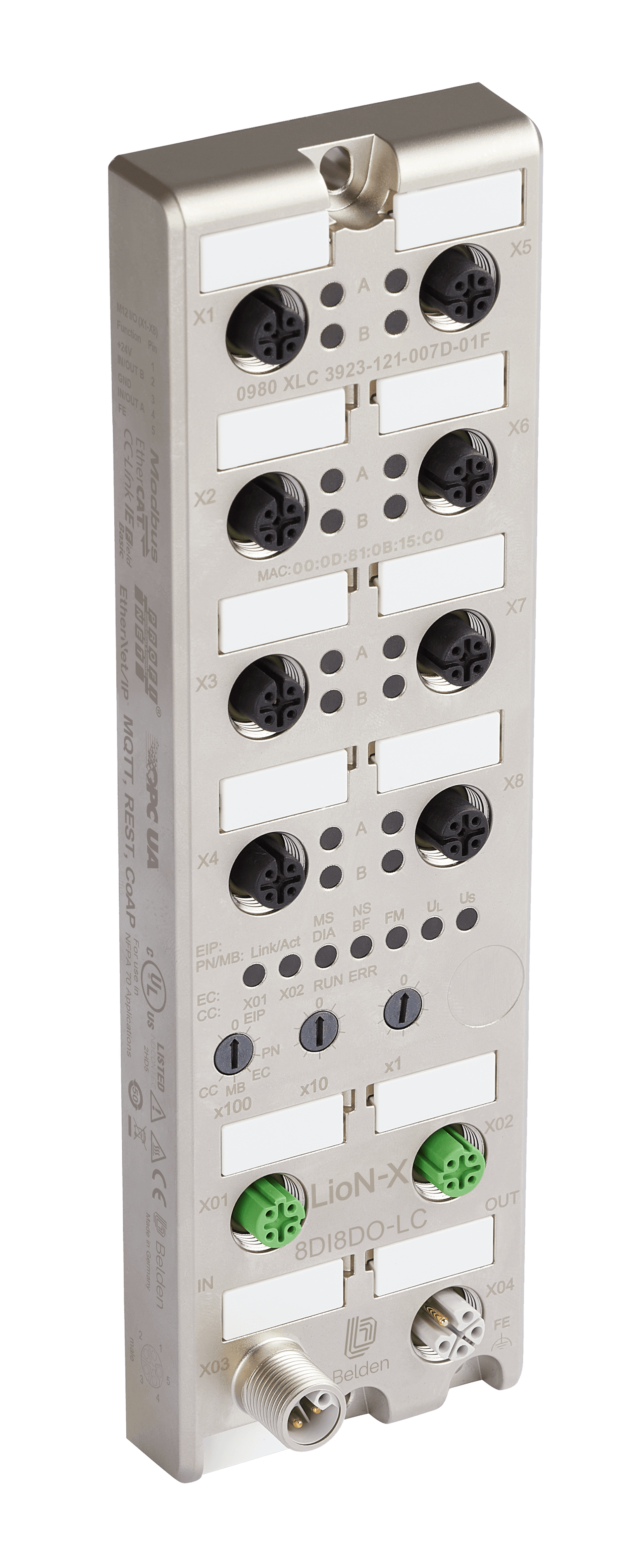

LioN-X low current 8DI/8DO Digital without galvanic isolation, Multip.
رقم القطعة: 0980 XLC 3923-121-007D-01F
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
LioN-X low current 8DI/8DO Digital without galvanic isolation, Multip.
المواصفات
| Weight | 460 g |
|---|---|
| Mount Type | 2 hole screw mounting. Use standard M4 x 25 / 30 screws with toothed lock washer (as per DIN 125) and self-locking nuts. |
| Update and Revision | Revision Number: 0.18 Revision Date: 02-26-2026 |
| Source URL | https://www.belden.com/products/i-o-systems/digital-i-o-modules-for-industrial-ethernet/lion-x-lc/0980-xlc-3923-121-007d-01f |
| Belden Taxonomy Path | i-o-systems > digital-i-o-modules-for-industrial-ethernet > lion-x-lc |
| Belden Category | i-o-systems |
| Belden Subcategory | digital-i-o-modules-for-industrial-ethernet |
| Belden Sub-subcategory | lion-x-lc |
| Datasheet URL | https://catalog.belden.com/techdata/EN/0980XLC3923-121-007D-01F_techdata.pdf |
| Part Number (normalized) | 0980XLC3923-121-007D-01F |
| CE | Yes |
| RoHS Compliant | Yes |
| Accessories to Order Separately | Ethernet cable, mounting adapter, sensor/actuator cable, power cable |
| Product Family | I/O Systems: Active - Standalone |
| Side 1 Product Sub Family | LioN-X low current |
| Ambient Temperature (Operation)* | -40 °C to 70 °C |
| Protection Degree / IP Rating** | IP65, IP67, IP69K |
| Side 1 Pollution Degree | 3 acc. to EN 60664-1, VDE 0110-1 |
| Contact Bearer Material | PA / TPU |
| O-Ring Material | FKM |
| UL | cULus Listed, UL 61010-1 |
| Protection Degree / IP Rating Note | *only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Housing Color | Grey Metallic |
| Housing Material | Metal, zinc die-cast |
| Housing Plating | Nickel, matt |
| Vibration Resistance | 15 g / 5 -500 Hz |
| Potted | Yes |
| Item Description | 0980 XLC 3923-121-007D-01F |
| CSA | Yes, via UL |
| Protective Circuit | Electronicaly: Overload protection, short-circuit protection |
| Device Type | I/O Device |
| Protocol Compatibility | Multiprotocol |
| I/O Function | 8DI 8DO |
| Power Supply Connection | M12 Power, 5-poles, L-coded |
| I/O Connection | M12, 5-poles, A-coded |
| I/O Type | Digital Input and Digital Output |
| Dimensions (W x H x D) | 60 mm x 31 mm x 200 mm |
| Ambient Temperature (Storage/Transport) | -40 °C to 70 °C |
| Permissible Humidity (Operation) | 5 % ... 95 % (For UL applications max. 80 %) |
| Permissible Humidity (Storage/Transport) | 5 % ... 95 % (For UL applications max. 80 %) |
| Air Pressure (Operation) | 80 kPa … 106 kPa (up to 2000 m above sea level) |
| Air Pressure (Storage/Transport) | 80 kPa … 106 kPa (up to 2000 m above sea level) |
| Flammabilty Class | UL 94 (IEC 61010) |
| Protection Class | III, IEC 61140, EN 61140, VDE 0140-1 |
| Shock Resistance | 50 g / 11ms |
| Fastening Torque (Fixing Screw) | M4: 1 Nm |
| Fastening Torque (Ground Connection (FE)) | M4: 1 Nm |
| Fastening Torque (Bus Connection) | M12: 0.5 Nm |
| Fastening Torque (Power Connection) | M12: 0.5 Nm |
| Fastening Torque (I/O Connection) | M12: 0.5 Nm |
| Included in Delivery | Attachable Labels: 15x, Sealing Caps: 5x M12 |
| Protocol | PROFINET |
| Connection | M12 4-poles, D-coded |
| Number of Connections | 2 |
| Specification | V2.4 |
| Conformance Class | C (CC-C) |
| Performance Class | RT (switch supports IRT) |
| Netload Class | III |
| Transmission Rate | Fast Ethernet (10/100 Mbit/s), Full Duplex |
| Transmission Method | 100 BASE-TX, with auto negotiation and auto crossing |
| Cycle Time / Update Rate | min. 1 ms |
| Addressing | DCP |
| Media Redundancy Protocol (MRP) | Supported, MRP client |
| Shared Device | Supported |
| Shared Input | not supported |
| Topology Detection | LLDP, SNMP V3 |
| Easy Device Replacement | Supported, based on LLDP |
| Supported Network Protocols (Other) | ARP, HTTP, Ping, SNMP V1, TCP/IP |
| Protocol (EtherNet/IP) | EtherNet/IP |
| Cycle Time / Requested Packet Interval (RPI) | min. 1 ms |
| Address Switches Range | 0 to 255 dec |
| Connection Types | Exclusive Owner, Input Only, Listen Only |
| CIP Msg Connection Limit | 6 |
| CIP I/O Connection Limit | 3 |
| Device Level Ring (DLR) | Supported, beacon based |
| Quick Connect (QC) | Supported, ≤ 500 ms |
| Mailbox Protocols | CANopen over EtherCAT (CoE), File access over EtherCAT (FoE), Ethernet over EtherCAT (EoE) |
| Number of stations | 4 |
| Supported Network Protocols | SNMP, ACD, ARP, HTTP, IGMP, Ping, TCP/IP |
| Supported IIoT Protocols | OPC UA, MQTT, CoAP, Syslog, Node Red |
| Connection Module Supply Voltage | M12 Power, 5-poles, L-coded |
| Current Carrying Capacity of Connector | max. 16 A |
| Module Supply Voltage (Nominal) | 24 V DC (SELV/PELV) |
| Module Supply Voltage (Range) | 18 V DC to 30 V DC |
| Current Consumption (typ.) | 130 mA (at 24 V DC) |
| Reverse Polarity Protection | Yes |
| Status Indicator (System Supply) | LED green |
| Diagnostic Indicator | LED red |
| Connection Sensor Supply Voltage | M12 Power, 5-poles, L-coded |
| Sensor Supply Voltage (Nominal) | 24 V DC (SELV/PELV) |
| Sensor Supply Voltage (Range) | 18 V DC to 30 V DC |
| Status Indicator (Sensor Supply) | LED green |
| Actuator Supply Voltage (Nominal) | 24 V DC (SELV/PELV) |
| Actuator Supply Voltage (Range) | 18 V DC to 30 V DC |
| Status Indicator (Actuator Supply) | LED green |
| Number of Digital Input Channels | up to 8 |
| Number of Ports | 4x, X1 to X4 |
| Channel Type | Type 3 acc. to IEC 61131-2 |
| Input Wiring | 2-, 3-, 4-wire |
| Nominal Voltage | 24 V DC via US (module power supply) |
| Nominal Current | typ. 5 mA |
| Sensor Current Supply | max. 200mA per port |
| Sensor Type | PNP |
| Input Voltage Range "0" signal | -3 V DC …+5 V DC |
| Input Voltage Range "1" signal | 11 V DC … 30 V DC |
| Status Indicator (Inputs) | LED white or yellow per channel |
| Number of Digital Output Channels | up to 8 |
| Output Wiring | 2-wire |
| Output Current per Channel | max. 2 A |
| Output Current per Module | max. 12 A (for UL compliance: max 9A) |
| Galvanically Isolated | No |
| Overload Behavior | Auto off and on switching / Manual restart |
| Status Indicator (Outputs) | LED white or yellow per channel |
| Diagnostic Idicator | LED red per module |
| US (System Supply Voltage) / FE | 500 V DC |
| UL / FE | 500 V DC |
| Bus connection / FE | 2000 V DC |
| EMC Directive | 2014/30/EU |
| EN 61000-4-2 Electrostatic Discharge (ESD) | Criterion B; 4 kV contact discharge, 8 kV air discharge |
| EN 61000-4-3 Electromagnetic Field | Criterion A; Field intensity: 10 V/m |
| EN 61000-4-4 Fast Transients (Burst) | Criterion B, 2 kV |
| EN 61000-4-5 Surge Voltage | Criterion B; DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical); For I/O ports with cables ≤ 30m |
| EN 61000-4-6 Conducted immunity | Criterion A; Test voltage 10 V |
| EN 55032 Radio Interference Properties | Class A |
| China RoHS-Compliant | Yes |
| PNO | Yes |
| ODVA | Yes |
| ETG | Yes |
| System Power Supply Connection Note | *do not connect / disconnect under voltage! |
