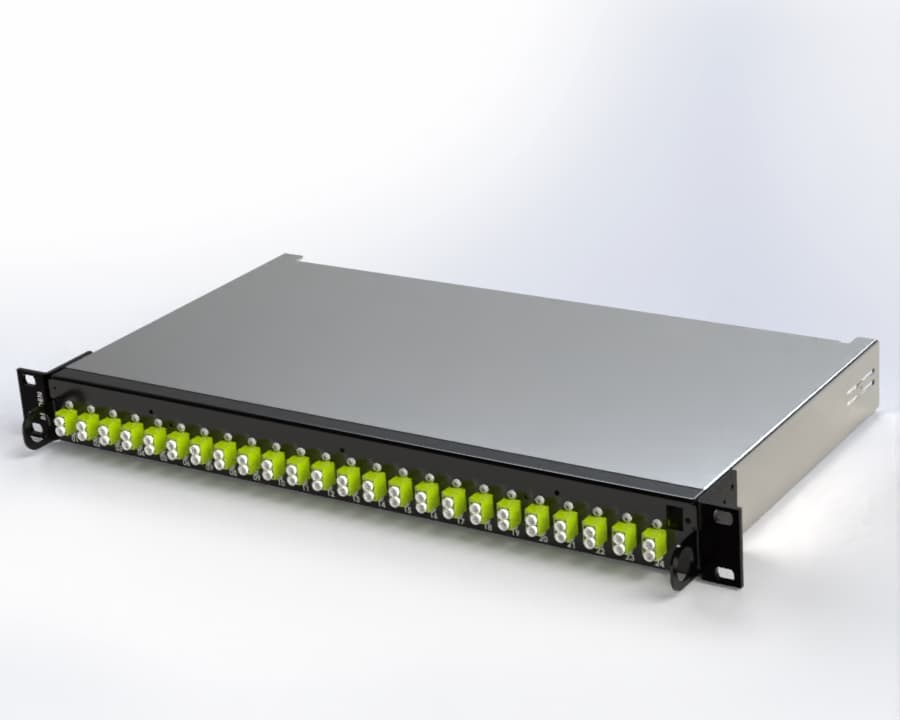

PatchPro 24-Port (48-Fiber) LC OM5 iPLM Ready Term/Splice Panel Set attached with 24 simplex Pigtail

Name: PatchPro 24-Port (48-Fiber) LC OM5 iPLM Ready Term/Splice Panel Set attached with 24 simplex Pigtail
Brand: Belden
SKU: PPL5TSN-H

رقم القطعة: PPL5TSN-H

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

PatchPro 24-Port (48-Fiber) LC OM5 iPLM Ready Term/Splice Panel Set attached with 24 simplex Pigtails and 4 Splice Cassettes

Overall Width	482 mm
Overall Height	44 mm
Overall Depth	300 mm
Weight	1.5 kg
Update and Revision	Revision Number: 0.21 Revision Date: 01-07-2025
Source URL	https://www.belden.com/products/panels-patching-systems/intelligent-patching-systems/connectivity/ppl5tsn-h
Belden Taxonomy Path	panels-patching-systems > intelligent-patching-systems > connectivity
Belden Category	panels-patching-systems
Belden Subcategory	intelligent-patching-systems
Belden Sub-subcategory	connectivity
Datasheet URL	https://catalog.belden.com/techdata/EN/PPL5TSN-H_techdata.pdf
Suitable Applications	Panel for Intelligent Ready (RFID based) Patching. Support current and future applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM
Operating Temperature Range	-10°C To +60°C
Environmental Space	Indoor
MII Order #39 (China RoHS)	EUP 50
Storage Temperature Range	-10 to 75°C
TIA/EIA Compliance	TIA 568-C.3
ISO/IEC Compliance	ISO/IEC 11801-1:2017
Installation Temperature Range	-10°C To +60°C
Maximum Insertion Loss	0.15 dB
Related Parts	PP-52LDLDxxxxX Intelligent Fiber Patchcords, GP-5xLDLDxxxxX Fiber Patchcords, PPFOUK-N Antenna Kit, PPIRRC Rack Manager
Packaging	Individually packaged in a box.
Connector System Compatibility	LC
Front Connection	Flush
Max Capacity	24 Duplex LC Ports
Minimum Reflectance	-28 dB
