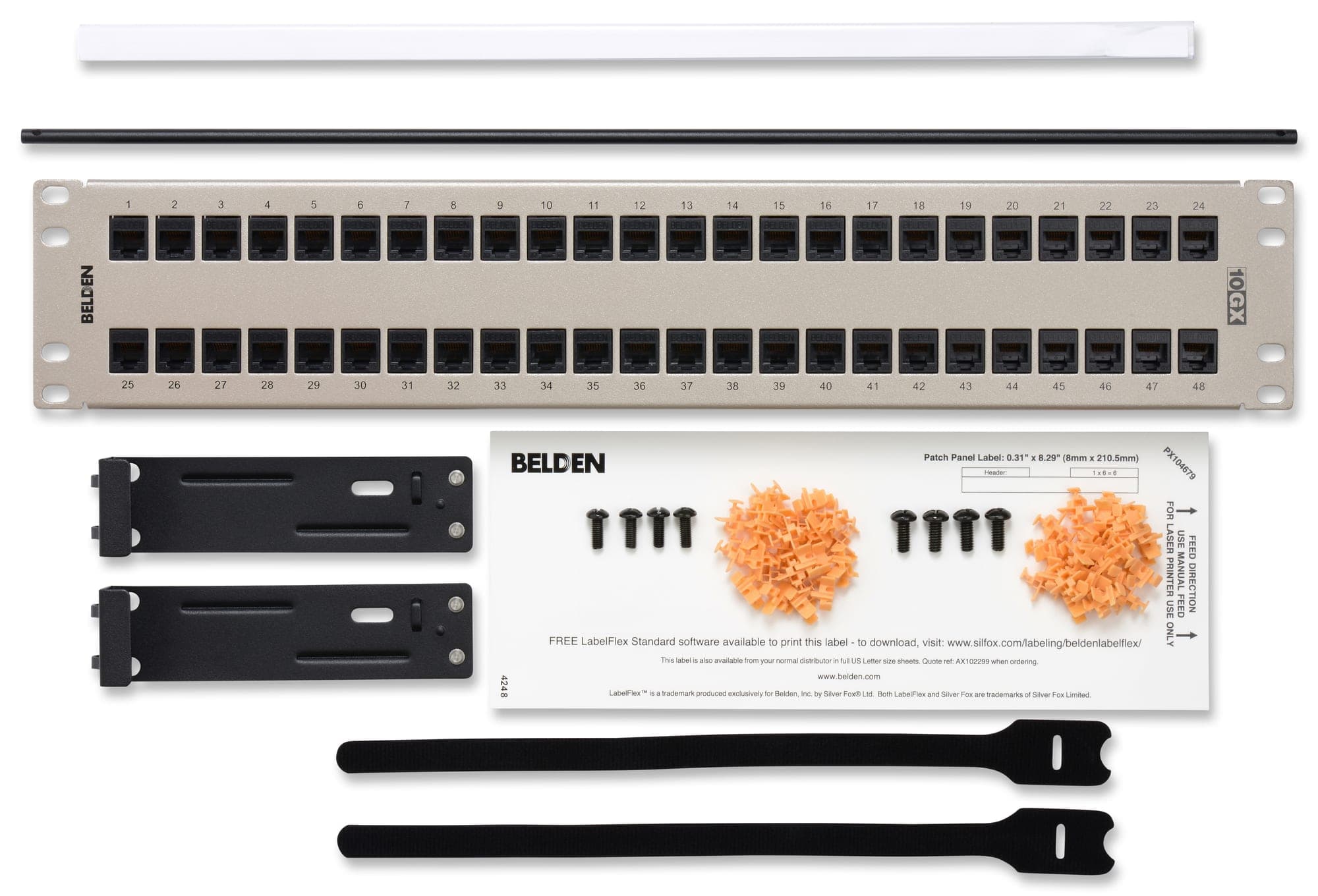

AX103256-10GX KeyConnect Patch Panel 48 Port 2U, UTP, Preloaded

Name: AX103256-10GX KeyConnect Patch Panel 48 Port 2U, UTP, Preloaded
Brand: Belden
SKU: 10GX KCONN PP 48 2U

رقم القطعة: 10GX KCONN PP 48 2U

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

AX103256-10GX KeyConnect Patch Panel 48 Port 2U, UTP, Preloaded

المواصفات

Description	Material
Overall Width	482.600 mm
Overall Height	88.9 mm
Overall Depth	33.020 mm
Weight	1.134 kg
Update and Revision	Revision Number: 0.310 Revision Date: 12-03-2025
Source URL	https://www.belden.com/products/panels-patching-systems/rj45-patch-panels/rack-mount-panel/10gx-kconn-pp-48-2u
Belden Taxonomy Path	panels-patching-systems > rj45-patch-panels > rack-mount-panel
Belden Category	panels-patching-systems
Belden Subcategory	rj45-patch-panels
Belden Sub-subcategory	rack-mount-panel
Datasheet URL	https://catalog.belden.com/techdata/EN/10GXKCONNPP482U_techdata.pdf
Part Number (normalized)	10GXKCONNPP482U
Suitable Applications	IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T
Notes	For proper installation refer to Installation Guide PX104691 included with the product
Operating Temperature Range	-10°C To +60°C
Environmental Space	Indoor
EU Directive 2011/65/EU (RoHS 2)	Yes
MII Order #39 (China RoHS)	EUP 50
Storage Temperature Range	-40°C To +70°C
Data Category	Category 6A
TIA/EIA Compliance	Category 6A - TIA 568.B.2-10, ISO/IEC 11801:2002 Amendment 2
Installation Temperature Range	-10°C To +60°C
Other Standards	FCC Part 68, Subpart F, IEC 60603-7
Safety Listing	ACA, Bi-national Standard Listed
Included Parts	4 Screws (10x32); 4 Screws (12x24); 1 Label Holder; 1 Printable LabelFlex Half-Sheet; 2 Velcro Straps; 2 cable management brakets; 1 Installation Guide; 1 kit 10GX X-BAR
Related Parts	10GX Modular Cords
Packaging	Individually packaged in a cardboard box.
Current Rating	1.500 A
Insulation Resistance	500 M-Ohm Minimum
Connector System Compatibility	KeyConnect
Dielectric Strength	1,000 V RMS @ 60Hz for 1 minute
Plug /Jack Compatibility	RJ45
Termination Resistance	2.5 mOhm
Front Connection	Flush
Max Capacity	48 connectors
Number of Ports	48 Port
Panel	Steel
