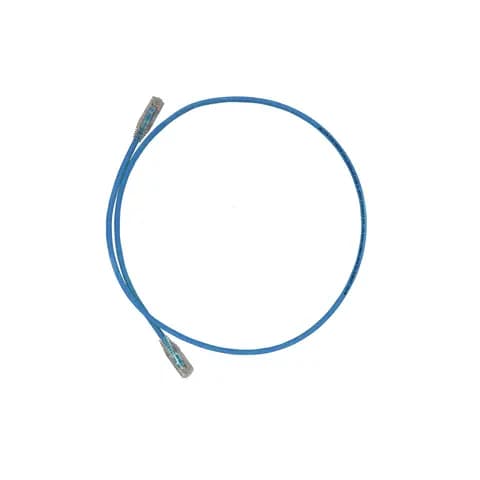

26AWG Category 6A Shielded Patch Cord

Name: 26AWG Category 6A Shielded Patch Cord
Brand: Belden
SKU: CACxxxx

رقم القطعة: CACxxxx

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

26AWG Category 6A Shielded Patch Cord

Update and Revision	Revision Number: 0.12 Revision Date: 07-08-2026
Source URL	https://www.belden.com/products/patch-cords-cordsets-assemblies/copper-pre-term-assemblies/copper-patch-cords/cacxxxx
Belden Taxonomy Path	patch-cords-cordsets-assemblies > copper-pre-term-assemblies > copper-patch-cords
Belden Category	patch-cords-cordsets-assemblies
Belden Subcategory	copper-pre-term-assemblies
Belden Sub-subcategory	copper-patch-cords
Datasheet URL	https://catalog.belden.com/techdata/EN/CACxxxx_techdata.pdf
Suitable Applications	IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T.
Notes	Belden guarantees the patch cord performance in accordance with “Annex - Modeling configurations and length scaling” in the latest ANSI/TIA-568 standard. The fourth letter represents jacket material: 9 - PVC and 4 - LSZH.
Environmental Space	Indoor
MII Order #39 (China RoHS)	EUP 50
UL Temperature Rating	-25°C To +70°C
Data Category	Category 6A
TIA/EIA Compliance	Category 6A - TIA-568.2-D ISO/IEC 11801-1
Total Number of Pairs	4
Other Standards	FCC Part 68, Subpart F, IEC 60603-7
Min Bend Radius (Overall Cable)	1.040 in
Voltage Rating	72VDC
Related Parts	10GX Modular Jacks and Couplers, 10GX Patch Panels
Packaging	Individually packaged in a clear plastic bag.
Current Rating	1.5 A
Insulation Resistance	100 M-Ohm Minimum
AWG	Material
Dielectric Strength	1000 VAC (RMS)
Max Contact Resistance	20 mOhm
Overall Nominal Diameter	6.2mm
Cable Type	S/FTP Cat6A
