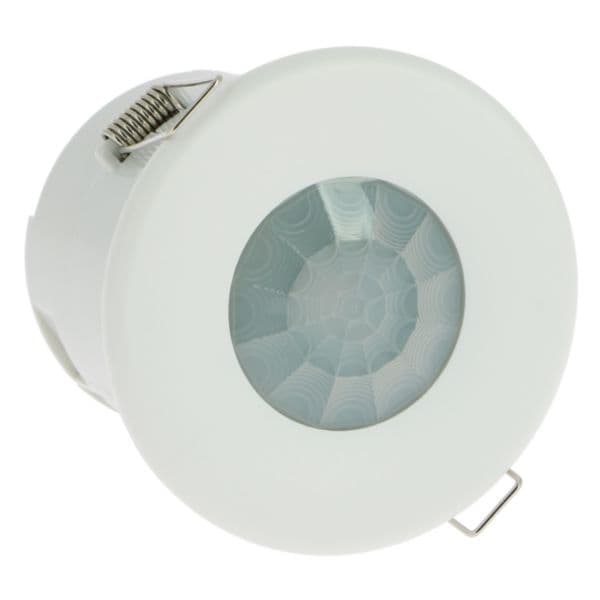

PIR mid range sensor 1-10V

Name: PIR mid range sensor 1-10V
Brand: Legrand
SKU: 048969

رقم القطعة: 048969

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

PIR mid range sensor 1-10V

المواصفات

Mounting method	Flush-mounted
Colour	White
Degree of protection (IP)	IP40
Width	76 mm
Depth	77 mm
degree of impact strength (IK)	IK05
Operating / setting temperature (Min-Max)	-10-30 °C
Storage temperature (Min-Max)	-10-50 °C
Halogen free	Yes
Source URL	https://www.legrand.com/ecatalogue/en/catalog/products/pir-mid-range-sensor-1-10v-048969
Legrand Category	Ceiling,Sensor,Presence sensors
Legrand Taxonomy Path	Wiring devices, connected home and building control > Home and building wiring devices > Motion and presence sensors > Ceiling
Datasheet URL	https://assets.legrand.com/pim/DOCUMENT/ex223001_0889.pdf
Material	Plastic
Surface protection	Untreated
Model	Presence detector
Surface finishing	Matt
Label space/information surface	No
Material quality	Thermoplastic
Substation input	Yes
Max. switching power	2300 W
Suitable for C-load	No
Frequency (Min-Max)	50-50 Hz
Mandatory neutral	Yes
Connection type	Screwed terminal
RAL-number (similar)	9002
Transparent	No
Voltage type	AC
Terminal marking indication	Yes
Nominal voltage (Min-Max)	230-230 V
Terminals capacity (Min-Max)	2.5-2.5 mm²
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Standby consumption	3.52173913 mA
Antimicrobial treatment	No
Cable nature for connection	Flexible or rigid
Diameter	76 mm
Built-in diameter	65 mm
Suitable for wall mounting	No
Entry membrane gland type	Not applicable
Tube diameter for wall mounted product (Min-Max)	64-64 mm
Maximum Input cable diameter	2.5 mm
Suitable for ceiling mounting	Yes
With connection cable	No
Ambient temperature (Min-Max)	-10-30 °C
Movement sensor/presence detector technology	Passive infrared
Constant light control	Yes
HVAC-control	No
Animal zone	No
Creep-under protection	No
Background monitoring	No
Networkable	No
Optimum mounting height	2.8 m
Staircase light controller	Yes
Bridging switch	No
Max. presence range	2.5 m²
Diameter reach on floor	15 m
Suitable for wireless transmission	No
Remote operation	Yes
Supplied remote control	Yes
Response value sensitivity adjustable	Yes
Response value luminosity adjustable	Yes
With signal unit	No
Teach-function for response value luminosity	No
Dim function with dimmer basic element	Yes
Min. switch-on time	0.5 s
Max. duty cycle	99 min
Detection angle horizontal (Min-Max)	360-360 °
Response value luminosity (Min-Max)	0-2000 lx
Number of switching zones	1
With alarm function	No
With acoustic sensor	No
Auto switch	Yes
Max. reach sideways	7.5 m
Pivoting range sensor, vertical (Min-Max)	0-0 °
Max. reach frontally	7.5 m
Pivoting range sensor, horizontal (Min-Max)	0-0 °
Forced switch off	Yes
Max. starting current	80 A
Control current	3.147826087 mA
Connection cable length	0 mm
Switch-off delay	10 s
Switching-on delay	1 s
