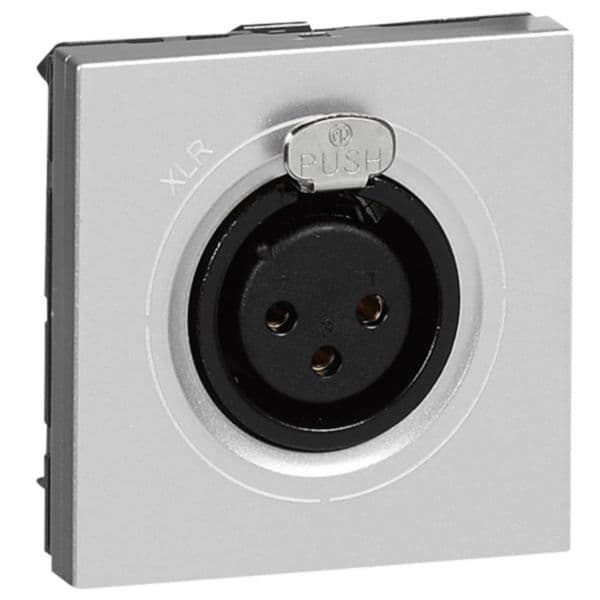

Mosaic™ - Audio socket - XLR 3-pin - female - 2-modules - alu

Name: Mosaic™ - Audio socket - XLR 3-pin - female - 2-modules - alu
Brand: Legrand
SKU: 079255

رقم القطعة: 079255

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Mosaic™ - Audio socket - XLR 3-pin - female - 2-modules - alu

Mounting method	Flush-mounted
Built-in depth	23 mm
Colour	Aluminium
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-50 °C
Storage temperature (Min-Max)	-10-70 °C
Halogen free	Yes
Source URL	https://www.legrand.com/ecatalogue/en/catalog/products/mosaic-audio-socket-xlr-3-pin-female-2-modules-alu-079255
Legrand Category	Other outlets (audio/video, loudspeaker, TV, phone...),Power outlet, USB outlet, data outlet and other outlets
Legrand Taxonomy Path	Wiring devices, connected home and building control > Home and building wiring devices > Sockets, USB sockets, data sockets and other sockets > Other outlets (audio/video, loudspeaker, TV, phone...)
Datasheet URL	https://assets.legrand.com/pim/DOCUMENT/ex223001_1007.pdf
Material	Plastic
With strain relief	No
Surface finishing	Matt
Material quality	Thermoplastic
Assembly arrangement	Modular device for domestic switching devices
Type of fastening	Engage (snap)
Transparent	No
Suitable for degree of protection (IP)	IP40
Device width	45 mm
Device height	45 mm
Antimicrobial treatment	No
With hinged lid	No
Suitable for number of connectors	1
Shielded buses	No
Shielded housing	No
Outlet direction	Straight
With dust cover	No
Number of modules (module system)	2
Min. depth of built-in installation box	40 mm
Utilization	XLR
Support ring	Yes
Imprintable label	Without indication field
With imprint	Yes
Luster terminal	No
