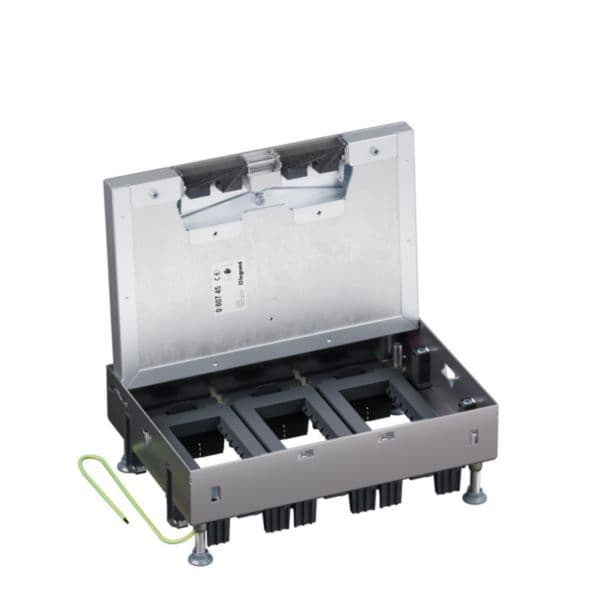

Mosaic - Floorbox flush metal concrete floor 12 modules HZ - IP20 - Steel side walls - Removable lid

Name: Mosaic - Floorbox flush metal concrete floor 12 modules HZ - IP20 - Steel side walls - Removable lid
Brand: Legrand
SKU: 080745

رقم القطعة: 080745

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Mosaic - Floorbox flush metal concrete floor 12 modules HZ - IP20 - Steel side walls - Removable lid

Degree of protection (IP)	IP20
Height	87.1 mm
Width	180.9 mm
Depth	264.1 mm
Source URL	https://www.legrand.com/ecatalogue/en/catalog/products/mosaic-floorbox-flush-metal-concrete-floor-12-modules-hz-ip20-steel-side-walls-removable-lid-080745
Legrand Category	Floor boxes and sockets,Complete
Legrand Taxonomy Path	Wiring devices, connected home and building control > Flush mounting boxes, junction boxes, DCL and floor boxes > Floor boxes and sockets
Datasheet URL	https://assets.legrand.com/pim/DOCUMENT/LGRP-02137-V01.01-EN.pdf
Number of appliances to build in	6
Suitable for subfloor duct countersunk (closed)	No
Suitable for subfloor duct overhead closed	No
Built-in opening for floor column	No
Built-in opening for built-in unit	Rectangular
Material side wall	Steel
Suitable for placing of sealing	No
Decoupling possibility cover from base unit	Yes
Bottom plate	No
