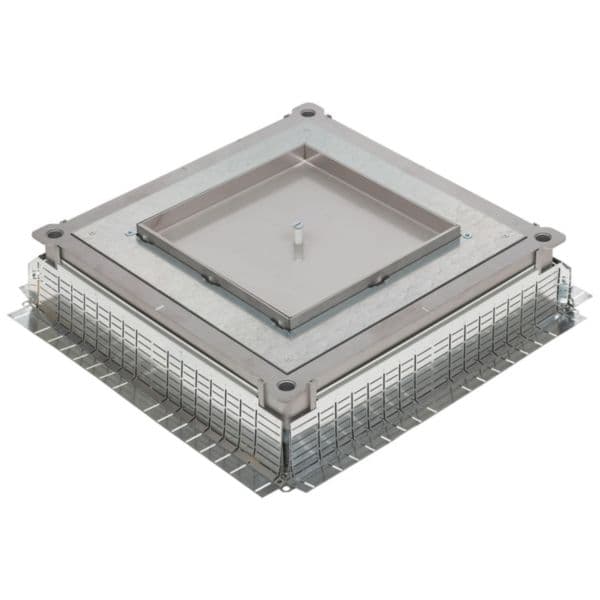

Floor box for heavy load up to 15KN - IP40 - with cable exit

Name: Floor box for heavy load up to 15KN - IP40 - with cable exit
Brand: Legrand
SKU: 089686

رقم القطعة: 089686

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Floor box for heavy load up to 15KN - IP40 - with cable exit

number of rows	0
Cover model	Square
Housing material	Stainless steel
Colour	Other
Depth	30 mm
degree of impact strength (IK)	IK08
Operating / setting temperature (Min-Max)	-5-60 °C
Storage temperature (Min-Max)	-25-60 °C
Halogen free	Yes
Source URL	https://www.legrand.com/ecatalogue/en/catalog/products/floor-box-for-heavy-load-up-to-15kn-ip40-with-cable-exit-089686
Legrand Category	Floor boxes and sockets,Mosaic,Complete
Legrand Taxonomy Path	Wiring devices, connected home and building control > Flush mounting boxes, junction boxes, DCL and floor boxes > Floor boxes and sockets
Datasheet URL	https://assets.legrand.com/pim/DOCUMENT/LG_CAT_EXB25037-HEAVY-DUTY-FLOOR-BOXES_EN.pdf
Fitted with USB plug	No
Number of socket outlets with protective contact CEE 7/3 (type F)	0
Number of socket outlets British Standard BS 1363	0
Number of device cups	1
With opening carpeting	Yes
Depth of flooring recess	24 mm
Protective frame carpeting	No
Suitable for subfloor duct	Yes
Suitable for hollow floor	Yes
Suitable for double floor built-in	Yes
Suitable for wet cleaning	Yes
Outer width	266 mm
Outer length	266 mm
Length built-in dimension	266 mm
Width built-in dimension	266 mm
Min. built-in depth	65 mm
Degree of protection (IP) when in use (cable outlet open)	IP40
