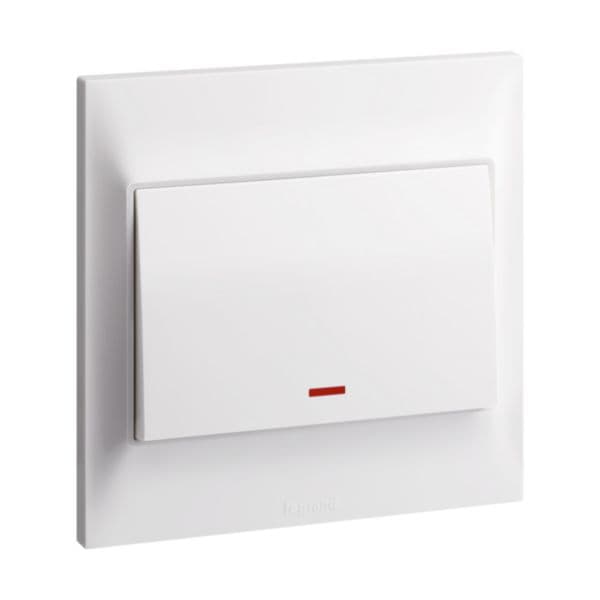

Belanko S - 1 gang double pole switch + neon + earth terminal - 20A - White

Name: Belanko S - 1 gang double pole switch + neon + earth terminal - 20A - White
Brand: Legrand
SKU: 617671

رقم القطعة: 617671

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Belanko S - 1 gang double pole switch + neon + earth terminal - 20A - White

المواصفات

Mounting method	Flush-mounted
Built-in depth	20.5 mm
With mounting plate	Yes
Colour	White
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-50 °C
Storage temperature (Min-Max)	-10-70 °C
Halogen free	Yes
Source URL	https://www.legrand.com/ecatalogue/en/catalog/products/belanko-s-1-gang-double-pole-switch-neon-earth-terminal-20a-white-617671
Legrand Category	Switches,Switch
Legrand Taxonomy Path	Wiring devices, connected home and building control > Home and building wiring devices > Switches, push-buttons and dimmers > Switches
Datasheet URL	https://assets.legrand.com/pim/Certif/LGDAIUYTSD.PDF
Material	Plastic
Surface protection	Untreated
Surface finishing	Matt
Label space/information surface	No
Material quality	Thermoplastic
Assembly arrangement	Basic element with full cover plate
Method of operation	Rocker/button
Mandatory neutral	Yes
Rated current	20 A
Connection type	Screwed terminal
Type of fastening	Screw mounting
Cable section (Min-Max)	1-4 mm²
RAL-number (similar)	9003
Voltage type	AC
Suitable for degree of protection (IP)	IP20
Terminal marking indication	Yes
Terminals capacity (Min-Max)	1-4 mm²
Device width	86 mm
Device height	86 mm
Device depth	33.6 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Antimicrobial treatment	No
Cable nature for connection	Flexible or rigid
Wiring system	Switch 2-pole
Nominal voltage	250 V
Lighting	No
Min. depth of built-in installation box	35 mm
Colour of switch operator	White
Monitoring contact	No
Heating switch	No
Washing machine switch	No
Number of rockers	1
