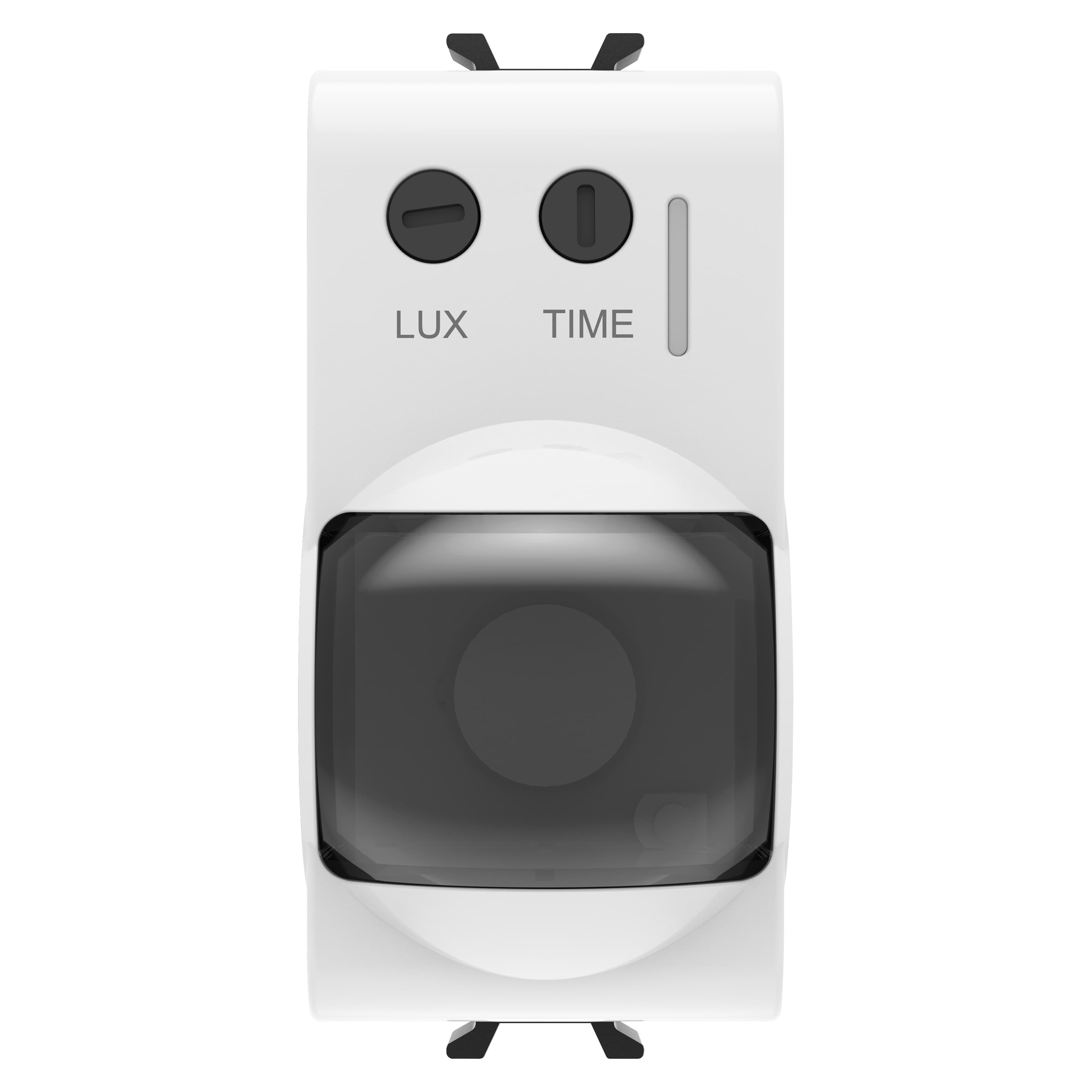

INFRARED MOVEMENT DETECTOR - 230 V ac 50/60 Hz - GLOSSY WHITE - 1 MODULE - CHORUSMART

Name: INFRARED MOVEMENT DETECTOR - 230 V ac 50/60 Hz - GLOSSY WHITE - 1 MODULE - CHORUSMART
Brand: GEWISS
SKU: GW10594

رقم القطعة: GW10594

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

INFRARED MOVEMENT DETECTOR - 230 V ac 50/60 Hz - GLOSSY WHITE - 1 MODULE - CHORUSMART

Colour	Glossy white
Material	Technopolymer
Glow Wire Test	850 °C
Standard	EN 60669-1, EN 60669-2-1
Ware Number	85365080
Source URL	https://www.gewiss.com/ww/en/products/product.1000000.1000040.GW10594
GEWISS Family	Building
GEWISS Series	CHORUSMART - Domestic range-Glossy white modular devices
GEWISS Taxonomy Path	Building > CHORUSMART - Domestic range-Glossy white modular devices
Datasheet URL	https://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000000.1000040.GW10594.pdf
Electrocod	0513
Insulation resistance	> 5 MOhm
Category	Movement detector
Resistance at test voltage	2000 V at 50 Hz for 1 minute
Wiring terminals	With screw
Prolonged operation switch (no.of position changes)	40.000 at In 250 V ac cosφ=0.6
Thermo-pressure with ball	125 °C
Terminal grip on cable traction	> 50 N
Terminal tightening capacity stranded cables (mm²)	min. 0.75 - max. 2x4
Terminal tightening capacity solid cables (mm²)	min. 0.5 - max. 2x2.5
No. modules	1
Supply voltage	230 V ac - 50/60 Hz
Technology	Infrared
Output contacts	1NO 3 A (AC1) 230 V ac
