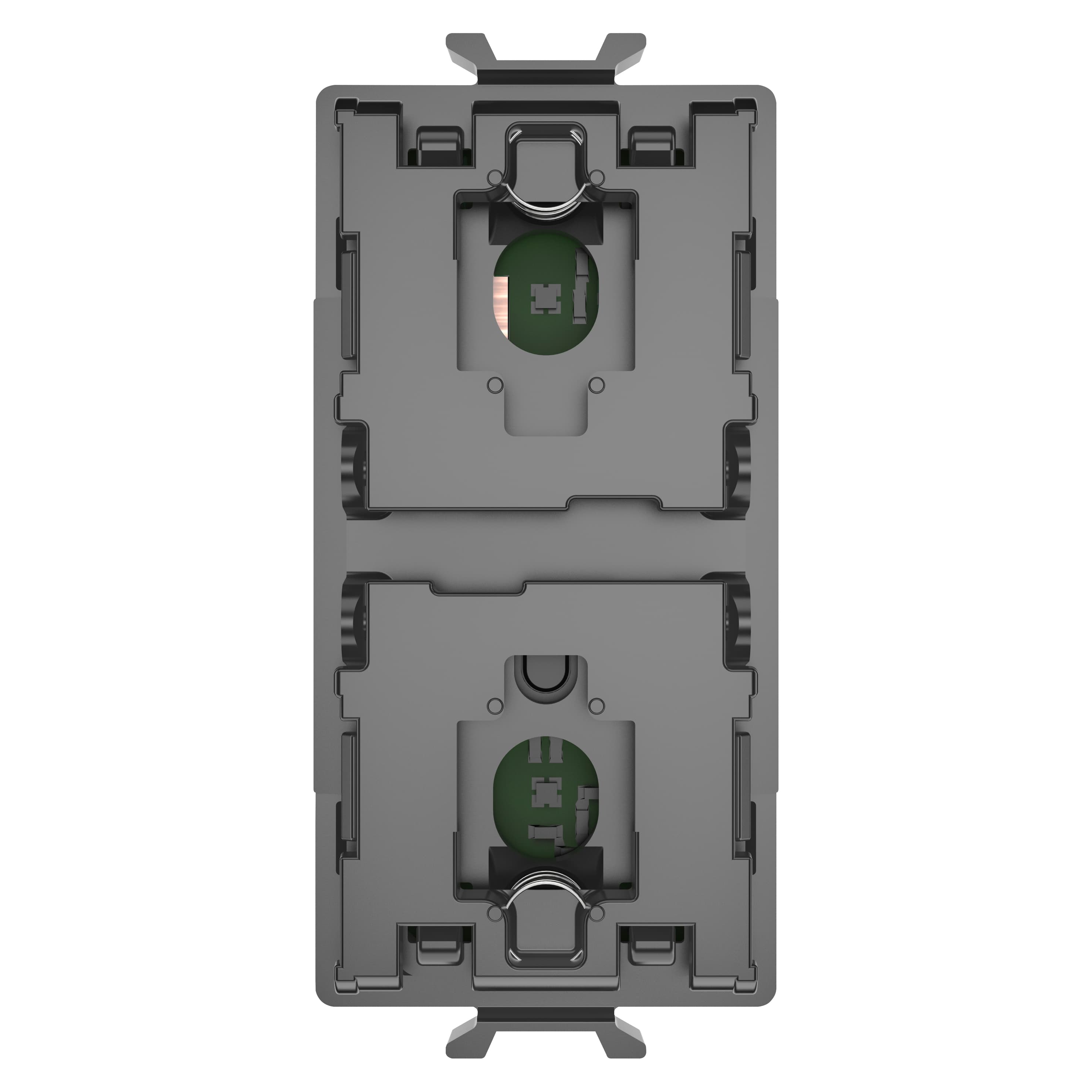

AXIAL ROLLER SHUTTER/VENETIAN MODULE EVO - 100-240 V ac - 50/60 Hz - 1 MODULE - CHORUSMART
رقم القطعة: GW10675
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
AXIAL ROLLER SHUTTER/VENETIAN MODULE EVO - 100-240 V ac - 50/60 Hz - 1 MODULE - CHORUSMART
المواصفات
| Standard | 2014/35/EU (LVD), 2014/30/EU (EMC), 2011/65/EU + 2015/863 (RoHS), EN 60669-2-1, EN 60669-1, EN IEC 63000 |
|---|---|
| Ware Number | 85365080 |
| Source URL | https://www.gewiss.com/ww/en/products/product.1000000.1000040.GW10675 |
| GEWISS Family | Building |
| GEWISS Series | CHORUSMART - Domestic range-Glossy white modular devices |
| GEWISS Taxonomy Path | Building > CHORUSMART - Domestic range-Glossy white modular devices |
| Datasheet URL | https://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000000.1000040.GW10675.pdf |
| GEWISS Taxonomy Paths | Building > CHORUSMART - Domestic range-Glossy white modular devices | Building > CHORUSMART - domestic range-Satin natural beige modular devices | Building > CHORUSMART - Domestic range-Glossy titanium modular devices | Building > CHORUSMART - Domestic range-Black modular devices | Building > CHORUSMART - Domestic range-Satin white modular devices |
| GEWISS Series (all) | CHORUSMART - Domestic range-Glossy white modular devices | CHORUSMART - domestic range-Satin natural beige modular devices | CHORUSMART - Domestic range-Glossy titanium modular devices | CHORUSMART - Domestic range-Black modular devices | CHORUSMART - Domestic range-Satin white modular devices |
| IP degree | IP20 (with button key) |
| Description | Axial roller shutter module |
| Wiring terminals | With screw |
| Terminal tightening capacity stranded cables (mm²) | Max. 1.5 |
| Terminal tightening capacity solid cables (mm²) | Max. 1.5 |
| No. modules | 1 |
| Working temperature | -5 ÷ +45 °C |
| Stocking temperature | -25 ÷ +70 °C |
| Relative humidity (non-condensative) | Max 93% |
| Output contacts | n. 2 x 2.3 A cosφ 0.6 |
| Power supply | 100 ÷ 240 V ac - 50/60 Hz |
| No. input channels | 2 |
| Local control | Via 2 front push buttons (to complete with button key) |
| Auxiliary input channel voltage | 100 ÷ 240 V ac - 50/60 Hz |
| N. of LED input channels | - |
| LED input channels voltage | - |
| No. output channels | 2 |
| Front light signaling | Blue led |
| 240 V ac Incandescent-halogen lamps | - |
| 240 V ac LED lamps | - |
| Loads piloted from electronic transf. 240 V ac | - |
| Context | Dry indoor places |
| 240 V Fluorescent lamps | - |
| Load control | - |
