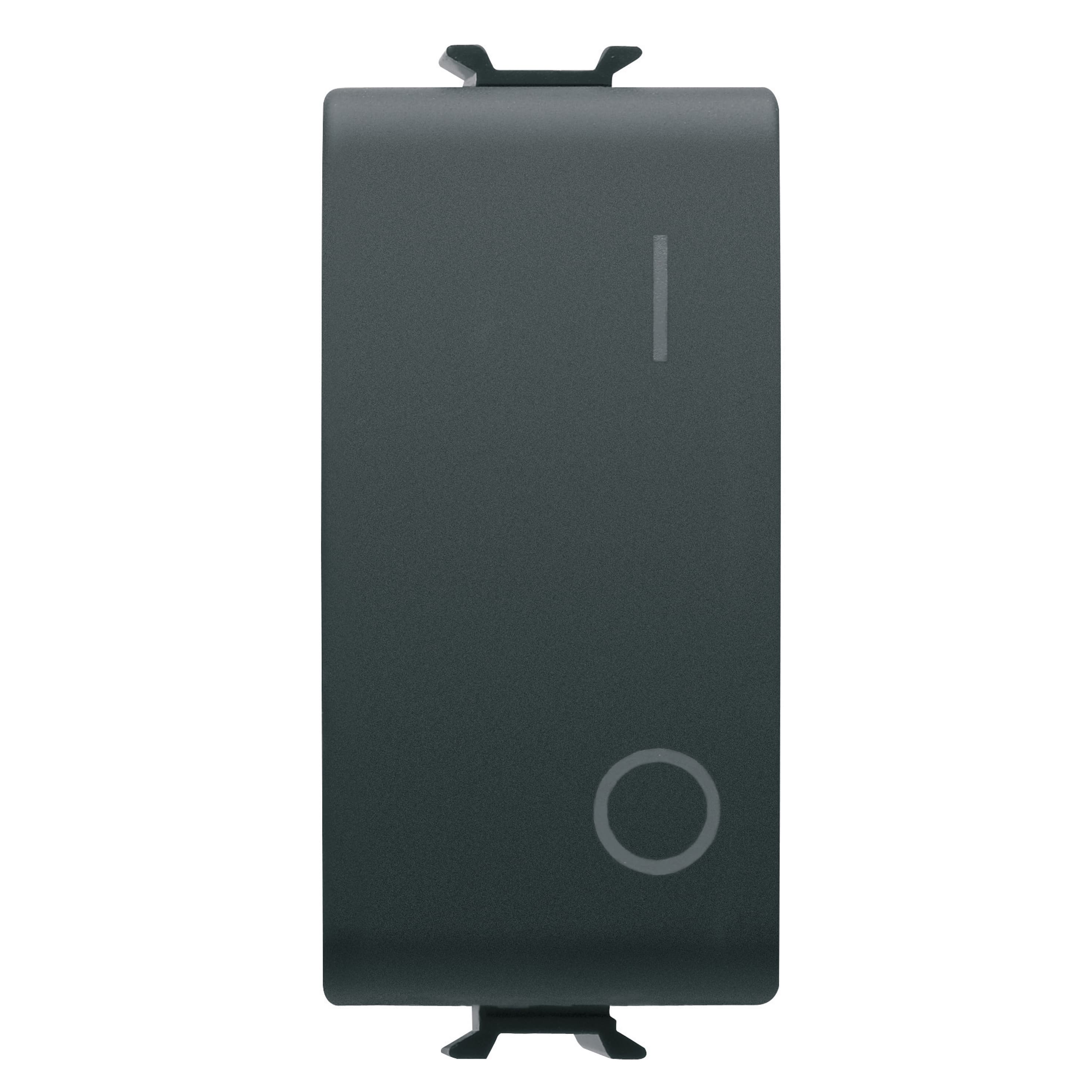

ONE-WAY SWITCH 2P 250V ac - 16AX - NEUTRAL BUTTON - SYMBOL 0/1 - 1 MODULE - SATIN BLACK - CHORUSMART

GEWISS

ONE-WAY SWITCH 2P 250V ac - 16AX - NEUTRAL BUTTON - SYMBOL 0/1 - 1 MODULE - SATIN BLACK - CHORUSMART

رقم القطعة: GW12004

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

ONE-WAY SWITCH 2P 250V ac - 16AX - NEUTRAL BUTTON - SYMBOL 0/1 - 1 MODULE - SATIN BLACK - CHORUSMART

المواصفات

ColourSatin black
MaterialTechnopolymer
Glow Wire Test850 °C
StandardEN 60669-1
Ware Number85365080
Source URLhttps://www.gewiss.com/ww/en/products/product.1000000.1000041.GW12004
GEWISS FamilyBuilding
GEWISS SeriesCHORUSMART - Domestic range-Black modular devices
GEWISS Taxonomy PathBuilding > CHORUSMART - Domestic range-Black modular devices
Datasheet URLhttps://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000000.1000041.GW12004.pdf
Electrocod0130
Insulation resistance> 5 MOhm
Description2P - 16 AX
CategoryOne-way switch
Button keyNeutral
Voltage250 V ac
Resistance at test voltage2000 V at 50 Hz for 1 minute
Rated power of 230V LED lamps200 W
Wiring terminalsWith screw
Prolonged operation switch (no.of position changes)40.000 at In 250 V ac cosφ=0.6
Thermo-pressure with ball125 °C
Terminal grip on cable traction> 50 N
Terminal tightening capacity stranded cables (mm²)min. 0.75 - max. 2x4
Terminal tightening capacity solid cables (mm²)min. 0.5 - max. 2x2.5
No. modules1
Symbol0/1
