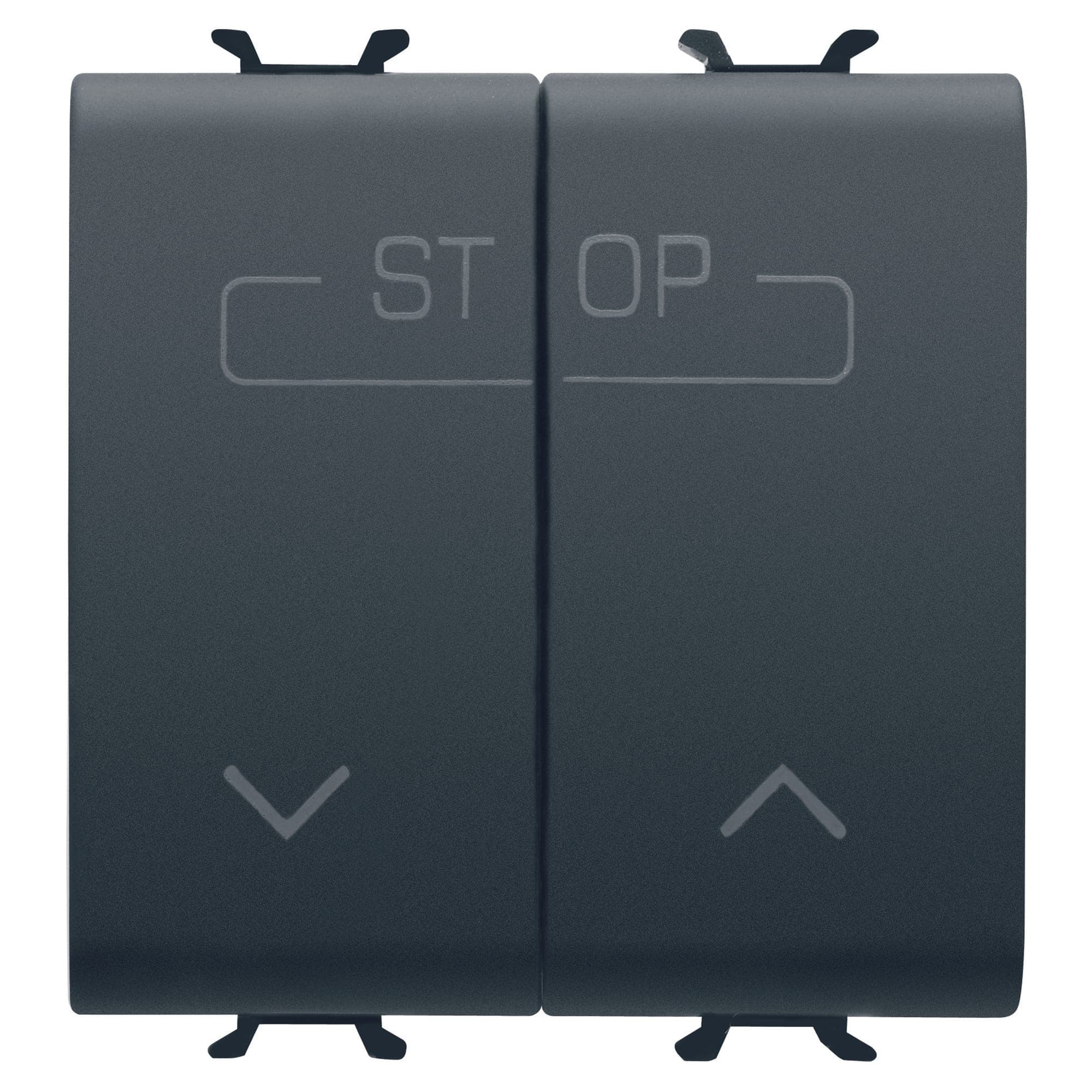

TWIN PUSH-BUTTON 250V ac - QUICK WIRING TERMINALS - 1P NO 16A - SYMBOL UP-DOWN-STOP - 2 MODULES - SA

GEWISS

TWIN PUSH-BUTTON 250V ac - QUICK WIRING TERMINALS - 1P NO 16A - SYMBOL UP-DOWN-STOP - 2 MODULES - SA

رقم القطعة: GW12160F

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

TWIN PUSH-BUTTON 250V ac - QUICK WIRING TERMINALS - 1P NO 16A - SYMBOL UP-DOWN-STOP - 2 MODULES - SATIN BLACK - CHORUSMART

المواصفات

ColourSatin black
MaterialTechnopolymer
Glow Wire Test850 °C
StandardEN 60669-1
Ware Number85365080
Source URLhttps://www.gewiss.com/ww/en/products/product.1000000.1000041.GW12160F
GEWISS FamilyBuilding
GEWISS SeriesCHORUSMART - Domestic range-Black modular devices
GEWISS Taxonomy PathBuilding > CHORUSMART - Domestic range-Black modular devices
Datasheet URLhttps://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000000.1000041.GW12160F.pdf
Electrocod0130
Insulation resistance> 5 MOhm
DescriptionTwin push-button 1P NO - 16 A
CategoryDouble push-button
Button keyNeutral
Voltage250 V ac
Resistance at test voltage2000 V at 50 Hz for 1 minute
Wiring terminalsQuick, with spring
Prolonged operation switch (no.of position changes)40.000 at In 250 V ac cosφ=0.6
Thermo-pressure with ball125 °C
Terminal grip on cable traction> 50 N
Terminal tightening capacity stranded cables (mm²)min. 0.75 - max. 2x2.5
Terminal tightening capacity solid cables (mm²)min. 0.5 - max. 2x2.5
No. modules2
SymbolUP - DOWN - STOP
