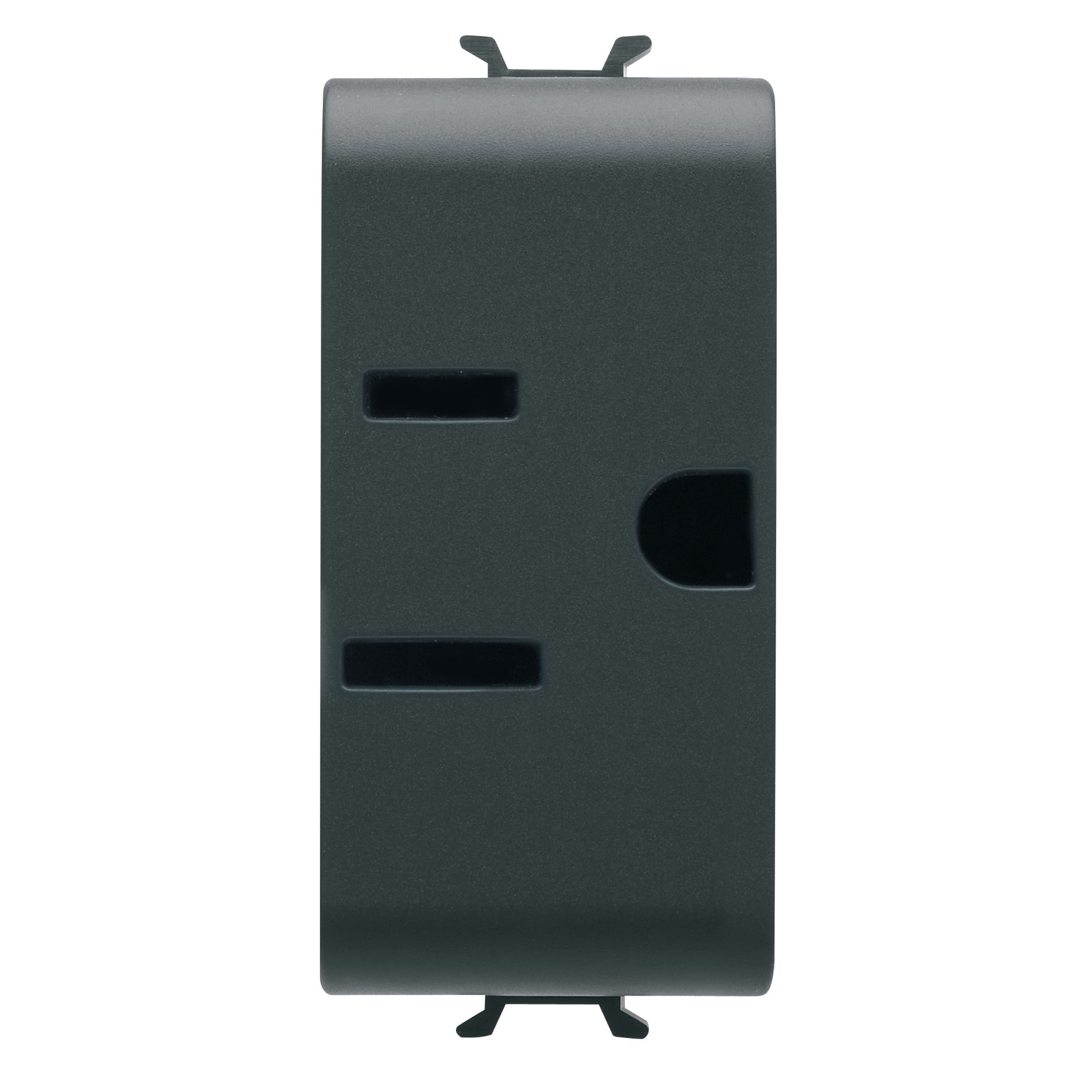

USA STANDARD SOCKET-OUTLET 250/125V ac - 2P+E 15A - 1 MODULE - SATIN BLACK - CHORUSMART

GEWISS

USA STANDARD SOCKET-OUTLET 250/125V ac - 2P+E 15A - 1 MODULE - SATIN BLACK - CHORUSMART

رقم القطعة: GW12286

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

USA STANDARD SOCKET-OUTLET 250/125V ac - 2P+E 15A - 1 MODULE - SATIN BLACK - CHORUSMART

المواصفات

ColourSatin black
MaterialTechnopolymer
Glow Wire Test850 °C
StandardUSA
Ware Number85366990
Source URLhttps://www.gewiss.com/ww/en/products/product.1000000.1000041.GW12286
GEWISS FamilyBuilding
GEWISS SeriesCHORUSMART - Domestic range-Black modular devices
GEWISS Taxonomy PathBuilding > CHORUSMART - Domestic range-Black modular devices
Datasheet URLhttps://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000000.1000041.GW12286.pdf
Electrocod0131
Insulation resistance> 5 MOhm
Description2P+E - 15 A
CategorySocket-outlet
Voltage250/125 V AC
Resistance at test voltage2000 V at 50 Hz for 1 minute
Wiring terminalsWith screw
Thermo-pressure with ball125 °C
Terminal grip on cable traction> 50 N
Terminal tightening capacity stranded cables (mm²)min. 0.75 - max. 2x4
Terminal tightening capacity solid cables (mm²)min. 0.5 - max. 2x2.5
No. modules1
For plug pinsFlat parallel horizontal
Prolonged operation socket (no.of position changes)10.000 at In 250 V ac cosφ=0.8
