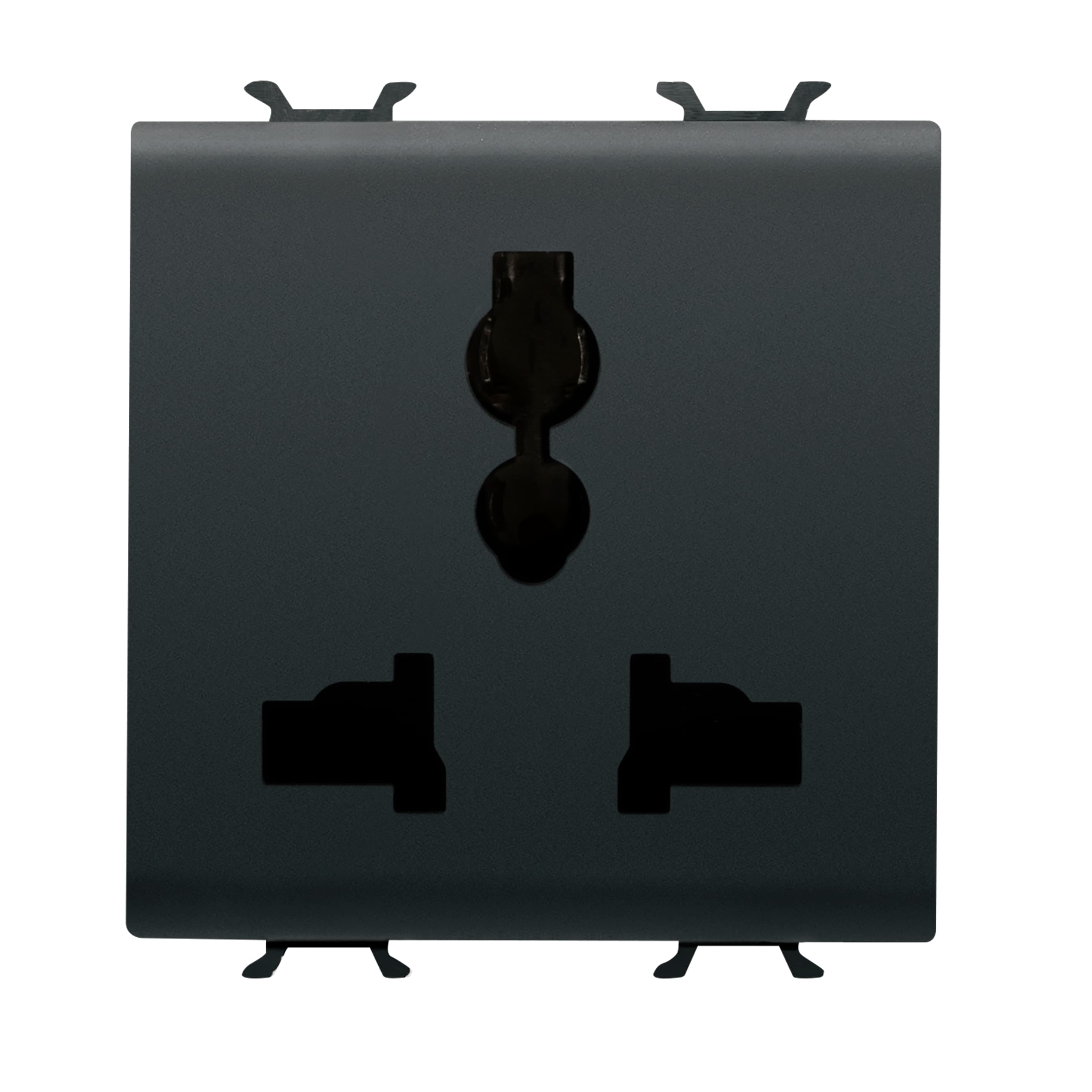

MULTISTANDARD SOCKET-OUTLET 2P+E - 13 A/250 V ac - 15 A/127 V ac - 2 MODULES - SATIN BLACK - CHORUSM

Name: MULTISTANDARD SOCKET-OUTLET 2P+E - 13 A/250 V ac - 15 A/127 V ac - 2 MODULES - SATIN BLACK - CHORUSM
Brand: GEWISS
SKU: GW12310

رقم القطعة: GW12310

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

MULTISTANDARD SOCKET-OUTLET 2P+E - 13 A/250 V ac - 15 A/127 V ac - 2 MODULES - SATIN BLACK - CHORUSMART

Colour	Satin black
Material	Technopolymer
Glow Wire Test	850 °C
Standard	Multistandard
Ware Number	85366990
Source URL	https://www.gewiss.com/ww/en/products/product.1000000.1000041.GW12310
GEWISS Family	Building
GEWISS Series	CHORUSMART - Domestic range-Black modular devices
GEWISS Taxonomy Path	Building > CHORUSMART - Domestic range-Black modular devices
Datasheet URL	https://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000000.1000041.GW12310.pdf
Electrocod	0131
Insulation resistance	> 5 MOhm
Description	2P+E - 13 A/250 V ac - 15 A/127 V ac
Characteristics	With safety shutters
Category	Socket-outlet
Voltage	250/127 V ac
Resistance at test voltage	2000 V at 50 Hz for 1 minute
Wiring terminals	With screw
Thermo-pressure with ball	125 °C
Terminal grip on cable traction	> 50 N
Terminal tightening capacity stranded cables (mm²)	min. 1.5 - max. 2x2.5
Terminal tightening capacity solid cables (mm²)	min. 1.5 - max. 2x2.5
No. modules	2
