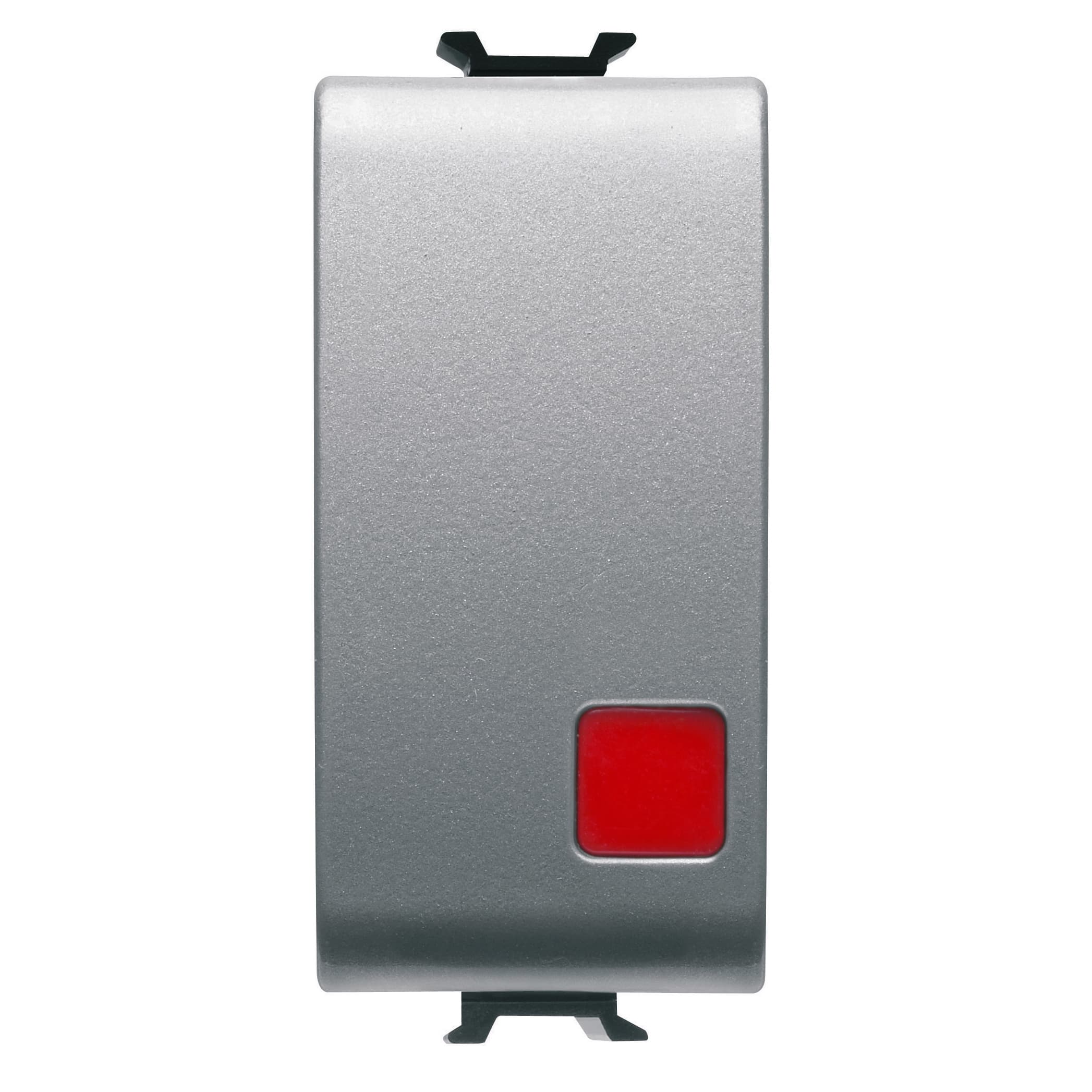

PUSH-BUTTON 1P 250V ac - NC+NO 16A - STOP - RED LENS - 1 MODULE - TITANIUM - CHORUSMART

GEWISS

PUSH-BUTTON 1P 250V ac - NC+NO 16A - STOP - RED LENS - 1 MODULE - TITANIUM - CHORUSMART

رقم القطعة: GW14138

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

PUSH-BUTTON 1P 250V ac - NC+NO 16A - STOP - RED LENS - 1 MODULE - TITANIUM - CHORUSMART

المواصفات

ColourGlossy Titanium
MaterialTechnopolymer
Glow Wire Test850 °C
StandardEN 60669-1
Ware Number85365080
Source URLhttps://www.gewiss.com/ww/en/products/product.1000000.1000042.GW14138
GEWISS FamilyBuilding
GEWISS SeriesCHORUSMART - Domestic range-Glossy titanium modular devices
GEWISS Taxonomy PathBuilding > CHORUSMART - Domestic range-Glossy titanium modular devices
Datasheet URLhttps://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000000.1000042.GW14138.pdf
Electrocod0130
Insulation resistance> 5 MOhm
Description1P NC+NO - 16 A
CategoryPush-button
Button keyStop
Voltage250 V ac
Resistance at test voltage2000 V at 50 Hz for 1 minute
Wiring terminalsWith screw
Prolonged operation switch (no.of position changes)40.000 at In 250 V ac cosφ=0.6
Thermo-pressure with ball125 °C
Terminal grip on cable traction> 50 N
Terminal tightening capacity stranded cables (mm²)min. 0.75 - max. 2x4
Terminal tightening capacity solid cables (mm²)min. 0.5 - max. 2x2.5
No. modules1
SymbolRed
