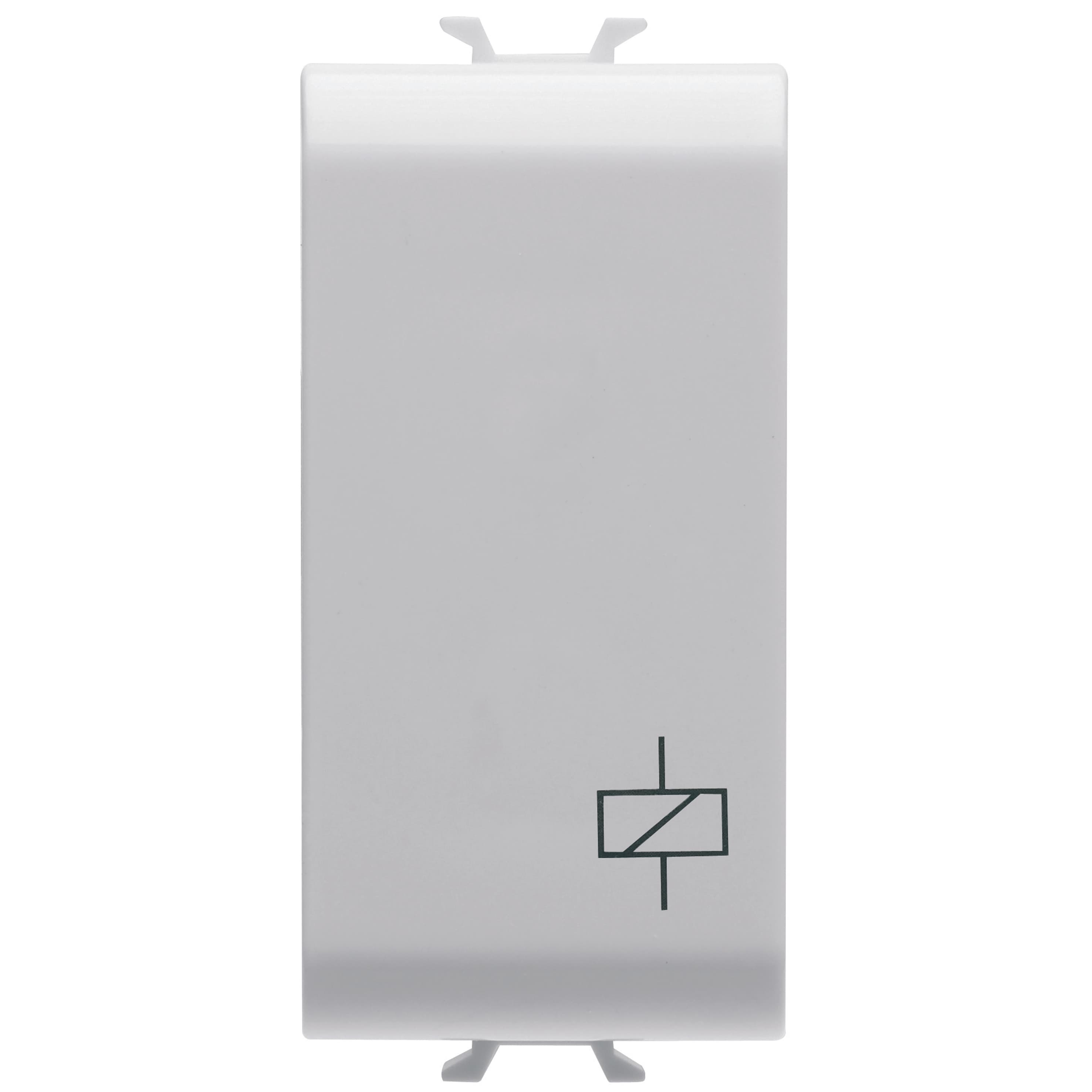

MOMENTARY RELAY 230V ac 50/60Hz - 1P 1NO/NC 10A(AC1)/2A(AC15)250Vac - 1 MODULE - SATIN WHITE - CHORU

GEWISS

MOMENTARY RELAY 230V ac 50/60Hz - 1P 1NO/NC 10A(AC1)/2A(AC15)250Vac - 1 MODULE - SATIN WHITE - CHORU

رقم القطعة: GW15724

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

MOMENTARY RELAY 230V ac 50/60Hz - 1P 1NO/NC 10A(AC1)/2A(AC15)250Vac - 1 MODULE - SATIN WHITE - CHORUSMART

المواصفات

ColourSatin white
MaterialTechnopolymer
TypeMonostable relay
Glow Wire Test850 °C
StandardEN 60669-1 / EN 60669-2-2
Ware Number85364900
Source URLhttps://www.gewiss.com/ww/en/products/product.1000000.1007558.GW15724
GEWISS FamilyBuilding
GEWISS SeriesCHORUSMART - Domestic range-Satin white modular devices
GEWISS Taxonomy PathBuilding > CHORUSMART - Domestic range-Satin white modular devices
Datasheet URLhttps://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000000.1007558.GW15724.pdf
Electrocod140
Insulation resistance> 5 MOhm
DescriptionMonostable relay
CategoryRelay
Voltage230 V ac
Resistance at test voltage2000 V at 50 Hz for 1 minute
Wiring terminalsWith screw
Prolonged operation switch (no.of position changes)40.000 at In 250 V ac cosφ=0.6
Thermo-pressure with ball125 °C
Terminal grip on cable traction> 50 N
Terminal tightening capacity stranded cables (mm²)min. 1 - max. 2x4
Terminal tightening capacity solid cables (mm²)min. 1 - max. 2x2.5
No. modules1
Frequency50/60 Hz
Output contacts1NO/NC 10 A (AC1)/2 A (AC15) 250 V ac
No. of poles1P
