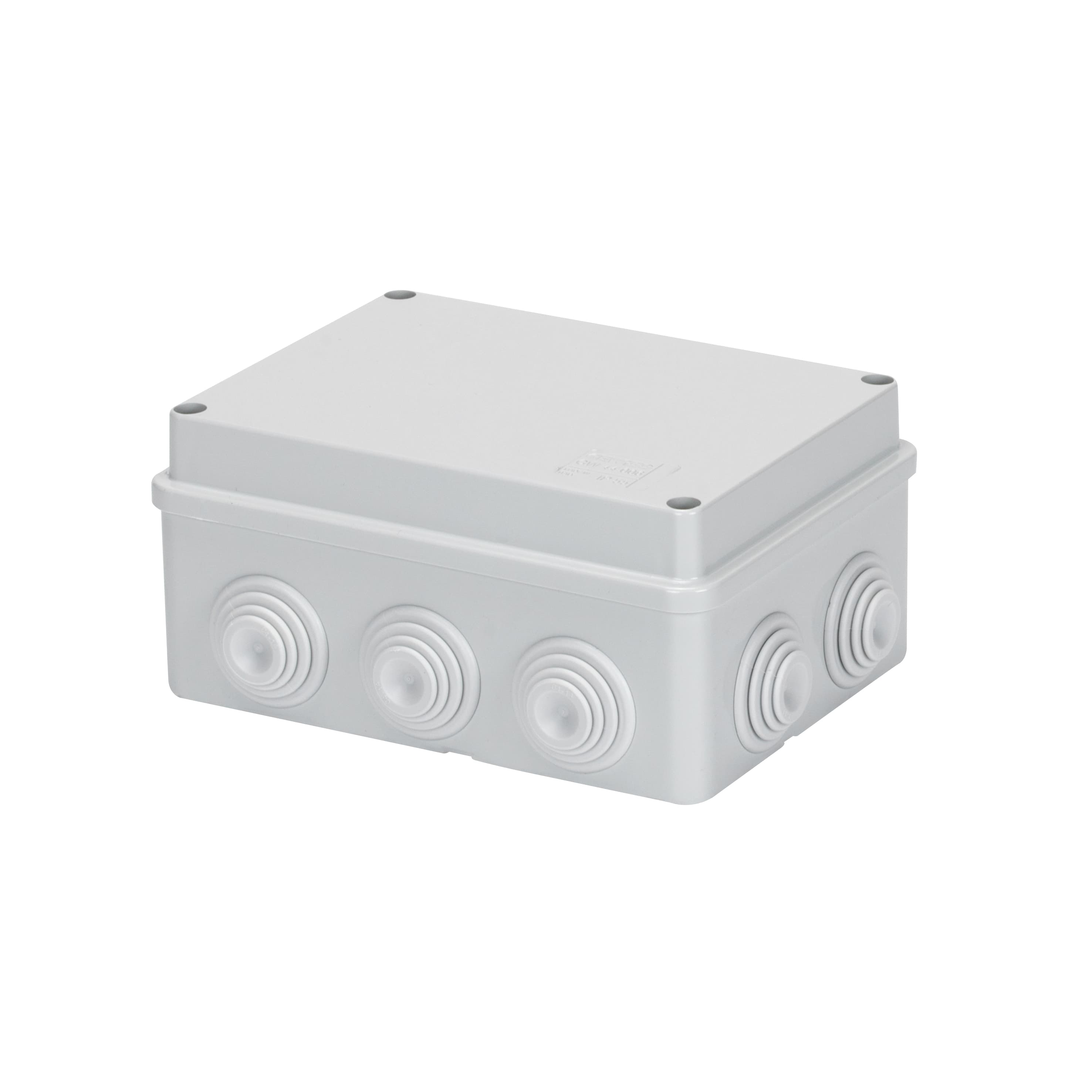

JUNCTION BOX WITH PLAIN SCREWED LID - IP55 - INTERNAL DIMENSIONS 150X110X70 - WALLS WITH CABLE GLAND

GEWISS

JUNCTION BOX WITH PLAIN SCREWED LID - IP55 - INTERNAL DIMENSIONS 150X110X70 - WALLS WITH CABLE GLAND

رقم القطعة: GW44006

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

JUNCTION BOX WITH PLAIN SCREWED LID - IP55 - INTERNAL DIMENSIONS 150X110X70 - WALLS WITH CABLE GLANDS - GREY RAL 7035

المواصفات

ColourGrey RAL 7035
MaterialTechnopolymer GWPLAST 75
Glow Wire Test650 °C
Ware Number85381000
Source URLhttps://www.gewiss.com/ww/en/products/product.1000002.1000088.GW44006
GEWISS FamilyInstallation
GEWISS Series44 CE Range-Technopolymer surface-mounting watertight junction boxes
GEWISS Taxonomy PathInstallation > 44 CE Range-Technopolymer surface-mounting watertight junction boxes
Datasheet URLhttps://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000002.1000088.GW44006.pdf
Electrocod02210
Operating temperature-25 +60 °C
IP degreeIP55
Type of materialHalogen-free in compliance with EN 60754-2
Thermo-pressure with ball85 °C
Insulation classII (according to IEC 61140 standards)
Mechanical resistanceIK08
Torque screws tightening1.2 NM
LidLow screwed
Accessories for insulation restoringGW44622
Internal dim. LxHxD (mm)150x110x70
Entries No. holes / Ø10 / 29
ApplicationOrdinary junctions
WallsWith cable glands
Lid screws (no. and type)4 - Stainless steel
