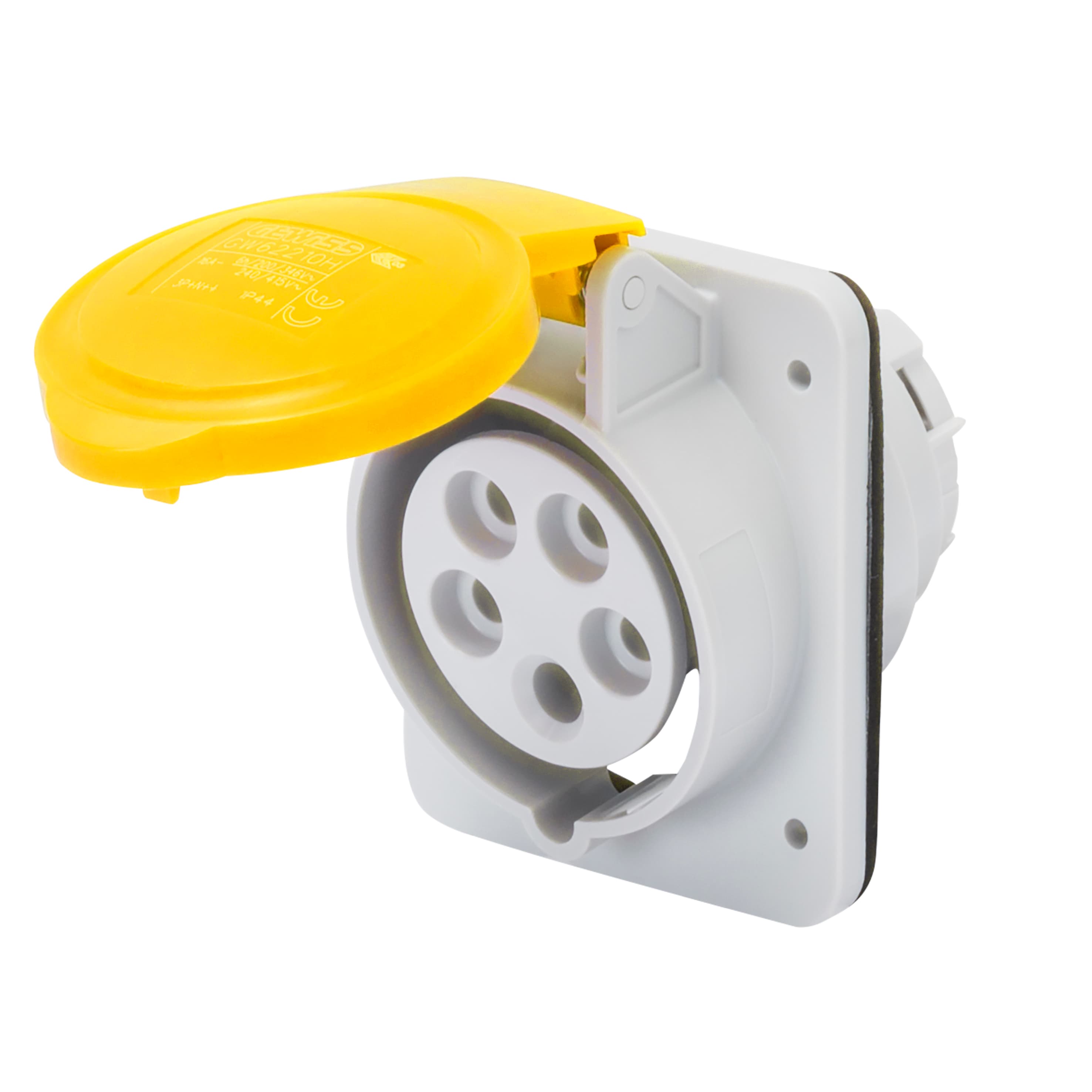

10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET HP - IP44/IP54 - 3P+N+E 16A 100-130V 50/60HZ - YELLOW - 4H -

Name: 10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET HP - IP44/IP54 - 3P+N+E 16A 100-130V 50/60HZ - YELLOW - 4H -
Brand: GEWISS
SKU: GW62203H

رقم القطعة: GW62203H

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET HP - IP44/IP54 - 3P+N+E 16A 100-130V 50/60HZ - YELLOW - 4H - SCREW WIRING

Colour	Yellow
Type	10° angled flush-mounting socket-outlet
Glow Wire Test	850 °C (active parts) - 650 °C (passive parts)
Ware Number	85366990
Source URL	https://www.gewiss.com/ww/en/products/product.1000002.1000073.GW62203H
GEWISS Family	Installation
GEWISS Series	IEC 309 HP range-Plugs and socket-outlets IEC 309 Standard
GEWISS Taxonomy Path	Installation > IEC 309 HP range-Plugs and socket-outlets IEC 309 Standard
Datasheet URL	https://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000002.1000073.GW62203H.pdf
Electrocod	2210
Insulation resistance	> 10 MΩ
Operating temperature	-25 +55 °C
IP degree	IP44/IP54
Type of material	Halogen-free in compliance with EN 60754-2
Thermo-pressure with ball	125 °C (active parts) - 80 °C (passive parts)
Frequency	50/60 Hz
Rated current (A)	16
No. of poles	3P+N+E
Mechanical resistance	IK09
Rated voltage	100 - 130 V
Reference h	4
Terminal tightening capacity	1-2.5 mm² flexible cables - 1.5-4 mm² rigid cables
Type of wiring	With screw
Total number of operations	> 5000
Permissible overload	22 A
Breaking capacity at 1.1 Un	20 A
Flange dimensions (mm)	85x75
