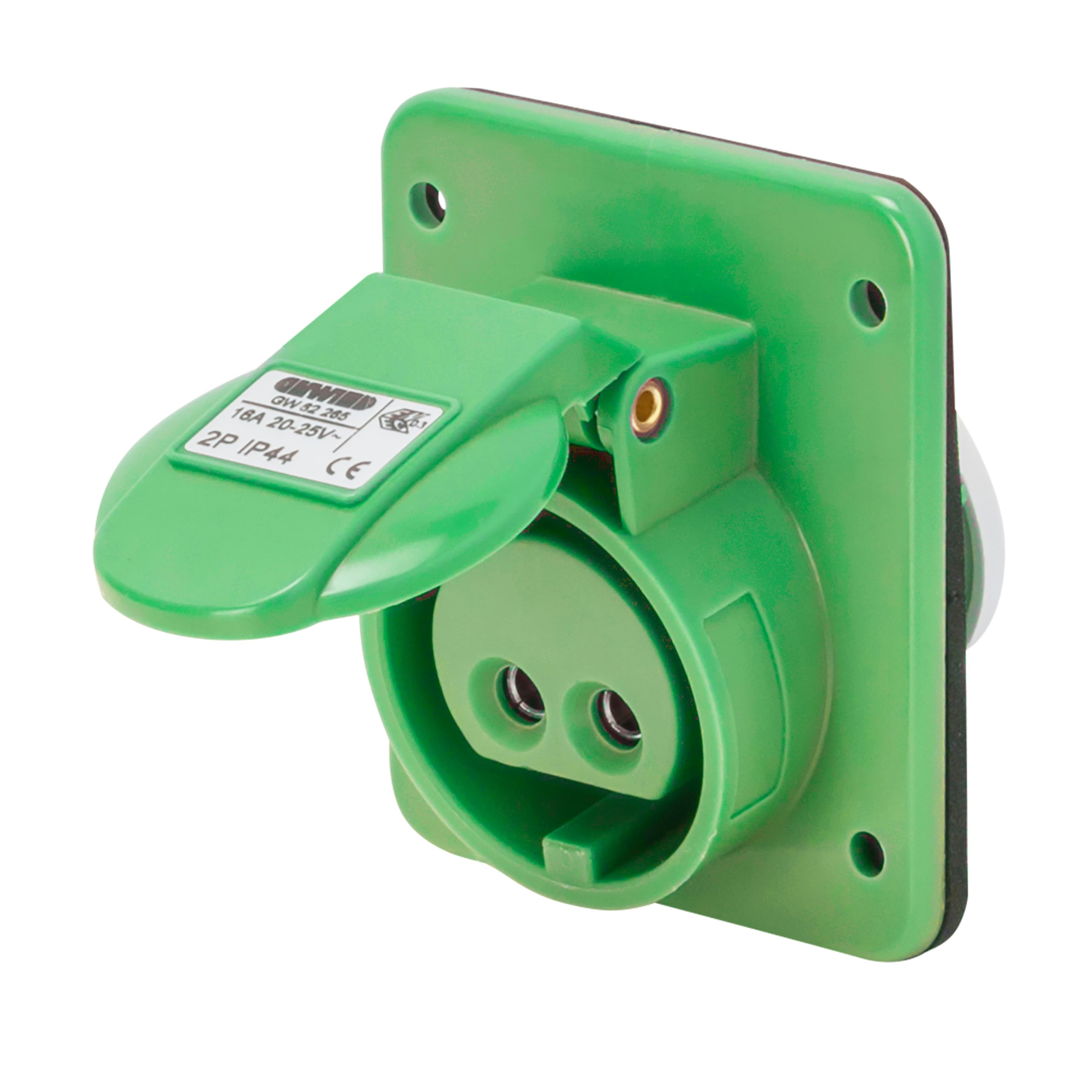

10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET - IP44 - 2P 16A 20-25V and 40-50V 401-500HZ - GREEN - 11H -

GEWISS

10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET - IP44 - 2P 16A 20-25V and 40-50V 401-500HZ - GREEN - 11H -

رقم القطعة: GW62271

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET - IP44 - 2P 16A 20-25V and 40-50V 401-500HZ - GREEN - 11H - SCREW WIRING

المواصفات

ColourGreen
Type10° angled flush-mounting socket-outlet
Glow Wire Test850 °C (active parts) - 650 °C (passive parts)
Ware Number85366990
Source URLhttps://www.gewiss.com/ww/en/products/product.1000002.1000074.GW62271
GEWISS FamilyInstallation
GEWISS SeriesIEC 309 BTS Range-Extra-low voltage plugs and socket-outlets IEC 309 standard
GEWISS Taxonomy PathInstallation > IEC 309 BTS Range-Extra-low voltage plugs and socket-outlets IEC 309 standard
Datasheet URLhttps://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000002.1000074.GW62271.pdf
Electrocod2210
Insulation resistance> 10 MΩ
Operating temperature-25 +40 °C
IP degreeIP44
Thermo-pressure with ball125 °C (active parts) - 80 °C (passive parts)
Frequency401 - 500 Hz
Rated current (A)16
No. of poles2P
Mechanical resistanceIK08
Rated voltage20-25 V and 40-50 V
Reference h11
Terminal tightening capacity1-2.5 mm² flexible cables - 1.5-4 mm² rigid cables
Type of wiringWith screw
Total number of operations> 5000
Permissible overload22 A
Breaking capacity at 1.1 Un20 A
Flange dimensions (mm)85x75
