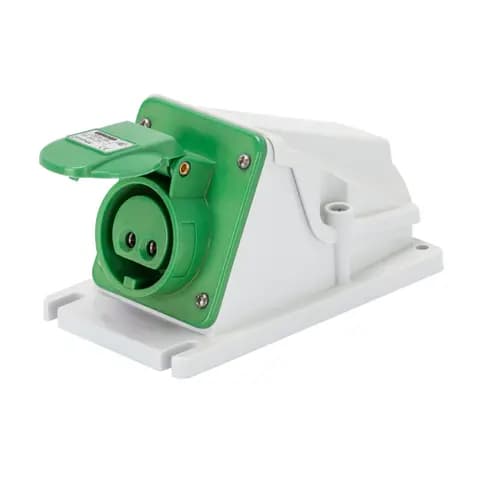

90° ANGLED SURFACE-MOUNTING SOCKET-OUTLET - IP44 - 2P 32A 20-25V and 40-50V 100-200HZ - GREEN - 4H -

رقم القطعة: GW62551

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

90° ANGLED SURFACE-MOUNTING SOCKET-OUTLET - IP44 - 2P 32A 20-25V and 40-50V 100-200HZ - GREEN - 4H - SCREW WIRING

المواصفات

ColourGreen
Type90° angled surface-mounting socket-outlet
Glow Wire Test850 °C (active parts) - 650 °C (passive parts)
Ware Number85366990
Source URLhttps://www.gewiss.com/ww/en/products/product.1000002.1000074.GW62551
GEWISS FamilyInstallation
GEWISS SeriesIEC 309 BTS Range-Extra-low voltage plugs and socket-outlets IEC 309 standard
GEWISS Taxonomy PathInstallation > IEC 309 BTS Range-Extra-low voltage plugs and socket-outlets IEC 309 standard
Datasheet URLhttps://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000002.1000074.GW62551.pdf
Electrocod2210
Insulation resistance> 10 MΩ
Operating temperature-25 +40 °C
IP degreeIP44
Thermo-pressure with ball125 °C (active parts) - 80 °C (passive parts)
Frequency100 - 200 Hz
Rated current (A)32
No. of poles2P
Mechanical resistanceIK08
Rated voltage20-25 V and 40-50 V
Reference h4
Terminal tightening capacity2.5-6 mm² flexible cables - 2.5-10 mm² rigid cables
Type of wiringWith screw
Total number of operations> 2000
Permissible overload42 A
Breaking capacity at 1.1 Un40 A
