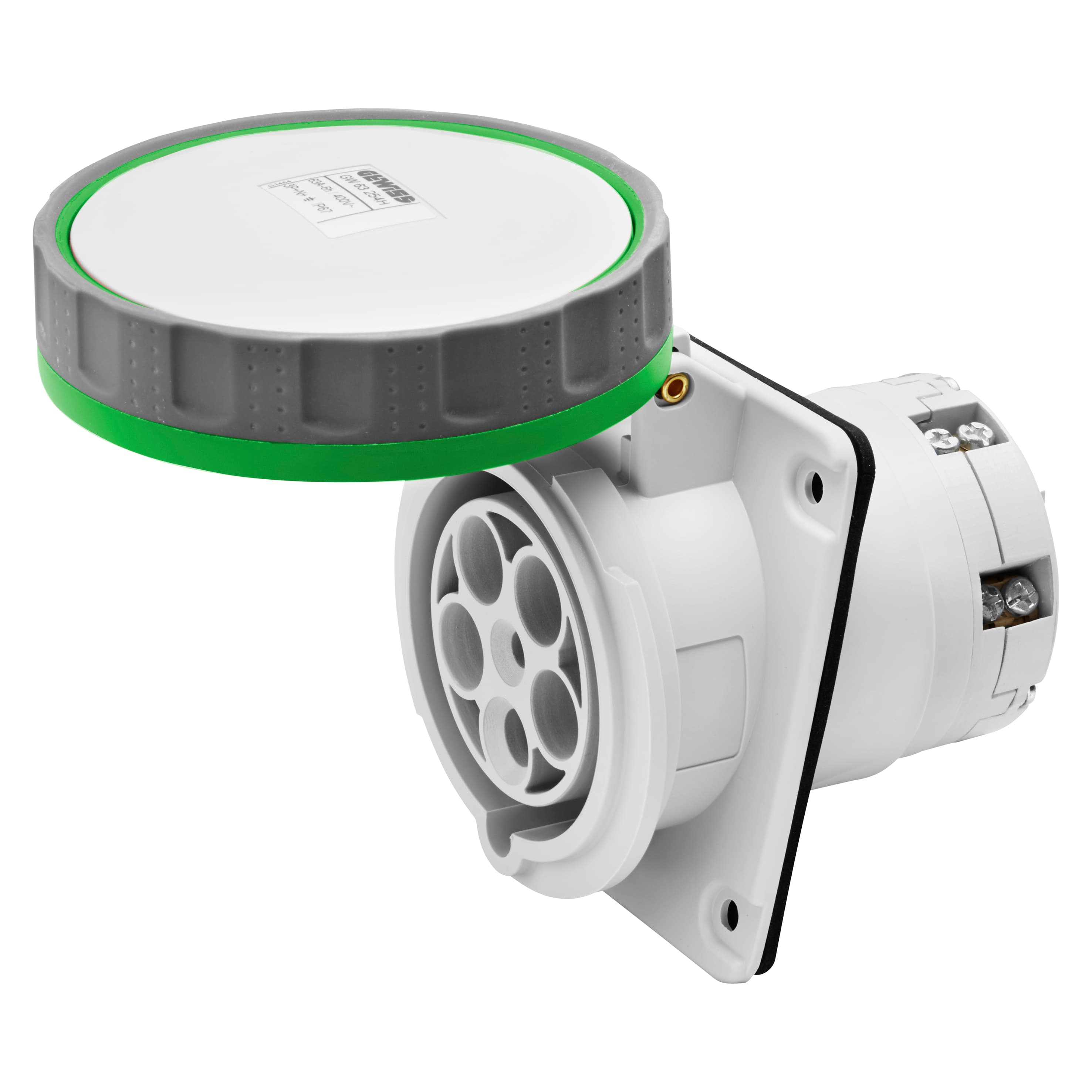

10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET HP - IP66/IP67 - 3P+N+E 125A >50V >300-500HZ - GREEN - 2H -

GEWISS

10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET HP - IP66/IP67 - 3P+N+E 125A >50V >300-500HZ - GREEN - 2H -

رقم القطعة: GW62976H

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET HP - IP66/IP67 - 3P+N+E 125A >50V >300-500HZ - GREEN - 2H - MANTLE TERMINAL

المواصفات

ColourGreen
Type10° angled flush-mounting socket-outlet
Glow Wire Test850 °C (active parts) - 650 °C (passive parts)
Ware Number85366990
Source URLhttps://www.gewiss.com/ww/en/products/product.1000002.1000073.GW62976H
GEWISS FamilyInstallation
GEWISS SeriesIEC 309 HP range-Plugs and socket-outlets IEC 309 Standard
GEWISS Taxonomy PathInstallation > IEC 309 HP range-Plugs and socket-outlets IEC 309 Standard
Datasheet URLhttps://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000002.1000073.GW62976H.pdf
Electrocod2211
Insulation resistance> 10 MΩ
Operating temperature-25 +55 °C
IP degreeIP66/IP67
Type of materialHalogen-free in compliance with EN 60754-2
Thermo-pressure with ball125 °C (active parts) - 80 °C (passive parts)
Frequency>300 - 500 Hz
Rated current (A)125
No. of poles3P+N+E
Mechanical resistanceIK09
Rated voltage>50 V
Reference h2
Terminal tightening capacity16-50 mm² flexible cables - 25-70 mm² rigid cables
Type of wiringMantle terminal
Total number of operations> 500
Breaking capacity at 1.1 Un156 A
Flange dimensions (mm)114x114
