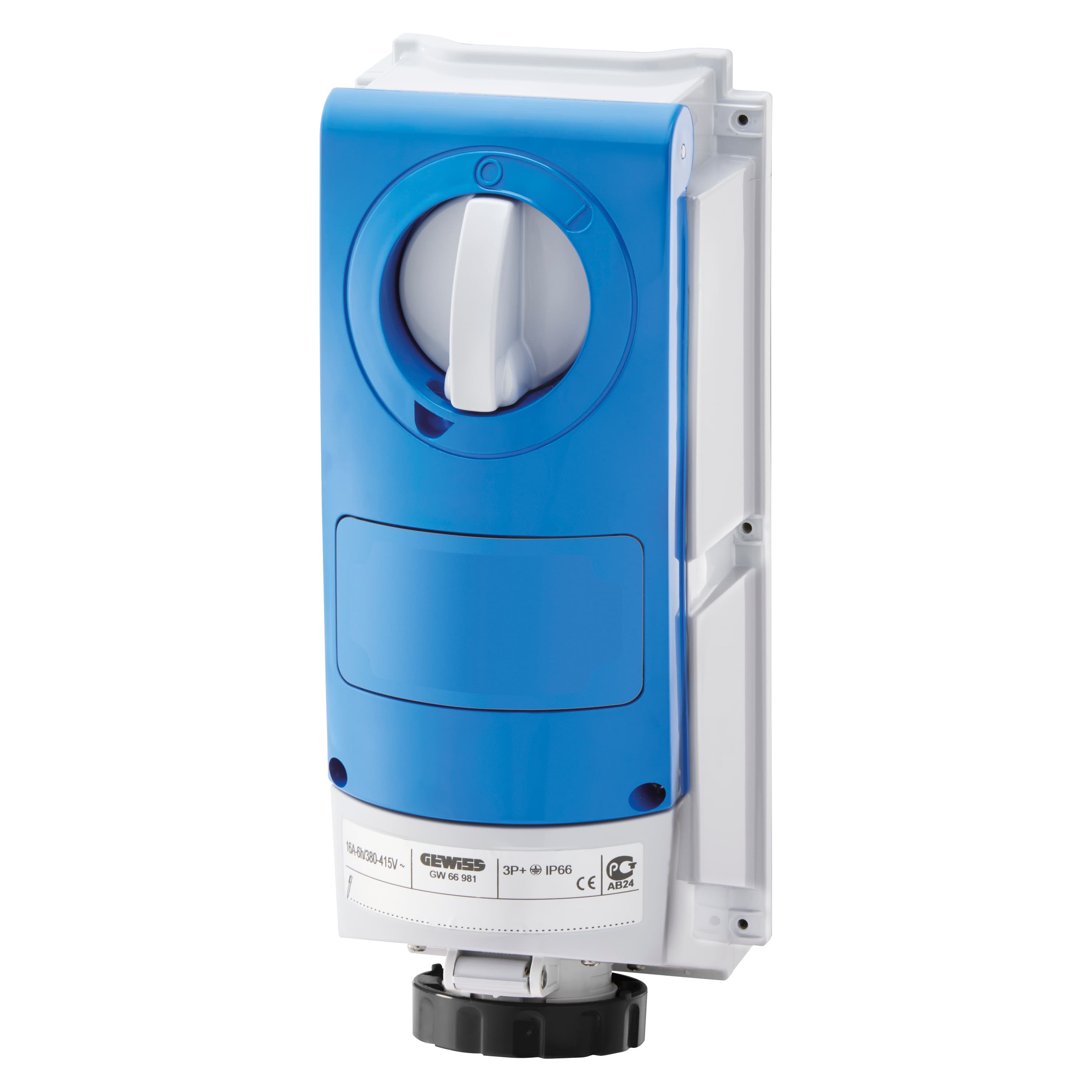

VERTICAL FIXED INTERLOCKED SOCKET OUTLET - WITHOUT BOTTOM - WITHOUT FUSE-HOLDER BASE - FOR HEAVY-DUT
رقم القطعة: GW66555
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
VERTICAL FIXED INTERLOCKED SOCKET OUTLET - WITHOUT BOTTOM - WITHOUT FUSE-HOLDER BASE - FOR HEAVY-DUTY USE - 3P+E 32A 480 - 500V - 50/60HZ 7H - IP66
المواصفات
| Colour | Black |
|---|---|
| Type | Vertical |
| Glow Wire Test | 850 °C |
| Ware Number | 85366990 |
| Source URL | https://www.gewiss.com/ww/en/products/product.1000002.1000076.GW66555 |
| GEWISS Family | Installation |
| GEWISS Series | IB Range-Interlocked socket-outlets IEC 309 standard |
| GEWISS Taxonomy Path | Installation > IB Range-Interlocked socket-outlets IEC 309 standard |
| Datasheet URL | https://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000002.1000076.GW66555.pdf |
| Electrocod | 2222 |
| Operating temperature | -25 +40 °C |
| IP degree | IP66 |
| Thermo-pressure with ball | 80 °C |
| Type of use | Heavy duty |
| Protection | NO (SBF) |
| Frequency | 50/60 Hz |
| Rated current (A) | 32 |
| No. of poles | 3P+E |
| Mechanical resistance | > IK10 |
| Rated voltage | 480 - 500 V |
| Reference h | 7 |
| With back-mounting box | No |
| Impact resistance at -20 °C | 20 J |
