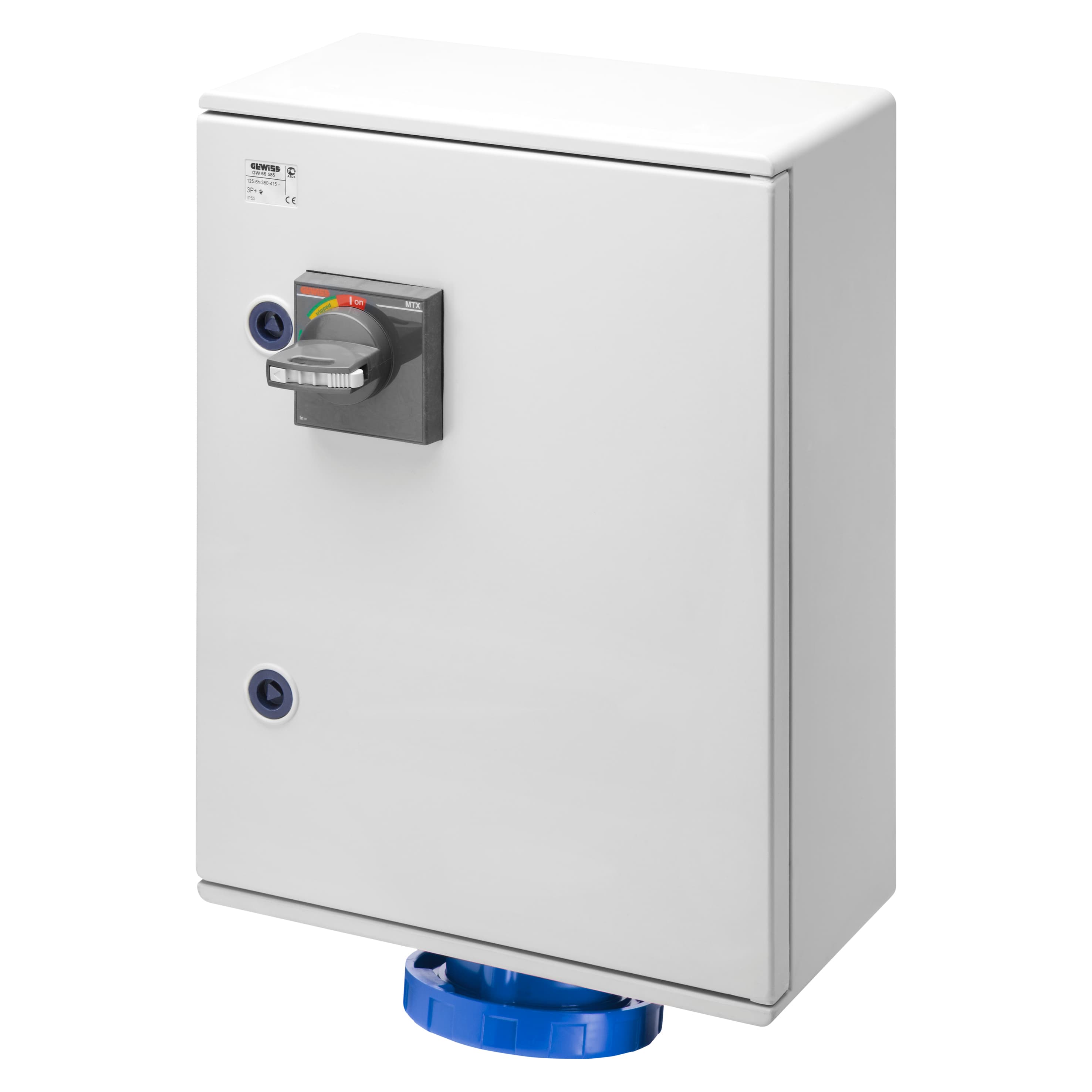

FIXED VERTICAL SOCKET OUTLET - SURFACE MOUNTING - MINIATURE CIRCUITE BREAKER -3P+N+E 125A 230V 9H -

GEWISS

FIXED VERTICAL SOCKET OUTLET - SURFACE MOUNTING - MINIATURE CIRCUITE BREAKER -3P+N+E 125A 230V 9H -

رقم القطعة: GW66584

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

FIXED VERTICAL SOCKET OUTLET - SURFACE MOUNTING - MINIATURE CIRCUITE BREAKER -3P+N+E 125A 230V 9H - IP66

المواصفات

ColourBlue
TypeVertical
Glow Wire Test850 °C (Socket) - 960 °C (Case)
Ware Number85366990
Source URLhttps://www.gewiss.com/ww/en/products/product.1000002.1000076.GW66584
GEWISS FamilyInstallation
GEWISS SeriesIB Range-Interlocked socket-outlets IEC 309 standard
GEWISS Taxonomy PathInstallation > IB Range-Interlocked socket-outlets IEC 309 standard
Datasheet URLhttps://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000002.1000076.GW66584.pdf
Electrocod2221
Operating temperature-25 +40 °C
IP degreeIP66
Thermo-pressure with ball200 °C
Type of useHeavy duty
ProtectionMCB
Frequency50/60 Hz
No. of poles3P+N+E
Mechanical resistanceIK10
Rated voltage200 - 250 V
Reference h9
Circuit breaker125 A 25 kA C characteristic
Terminal tightening capacity2.5-50 mm² flexible cables - 2.5-70 mm² rigid cables
Impact resistance at -20 °C20 J
Rated current InA (A)110
