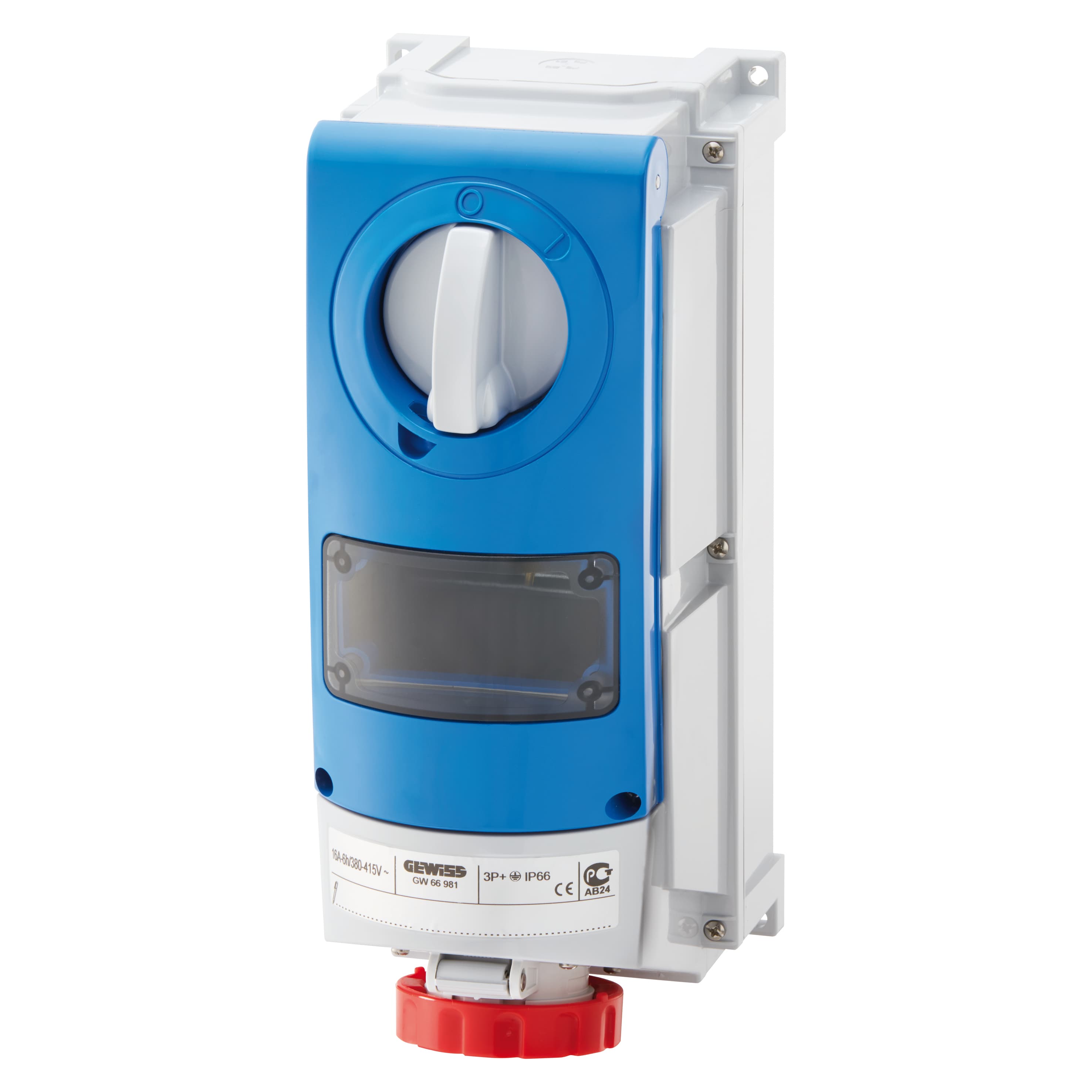

VERTICAL FIXED INTERLOCKED SOCKET OUTLET - WITH BOTTOM -FOR MOUNTING MODULAR DEVICES - FOR HEAVY-DUT
رقم القطعة: GW66982
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
VERTICAL FIXED INTERLOCKED SOCKET OUTLET - WITH BOTTOM -FOR MOUNTING MODULAR DEVICES - FOR HEAVY-DUTY USE - 3P+N+E 16A 346-415V-50/60HZ 6H-IP66
المواصفات
| Colour | Red |
|---|---|
| Type | Vertical |
| Glow Wire Test | 850 °C |
| Ware Number | 85366990 |
| Source URL | https://www.gewiss.com/ww/en/products/product.1000002.1000076.GW66982 |
| GEWISS Family | Installation |
| GEWISS Series | IB Range-Interlocked socket-outlets IEC 309 standard |
| GEWISS Taxonomy Path | Installation > IB Range-Interlocked socket-outlets IEC 309 standard |
| Datasheet URL | https://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000002.1000076.GW66982.pdf |
| Electrocod | 2222 |
| Operating temperature | -25 +40 °C |
| IP degree | IP66 |
| Thermo-pressure with ball | 80 °C |
| Type of use | Heavy duty |
| Protection | Suitable for modular apps. (6M) |
| Frequency | 50/60 Hz |
| Rated current (A) | 16 |
| No. of poles | 3P+N+E |
| Mechanical resistance | > IK10 |
| Rated voltage | 380 - 415 V |
| Reference h | 6 |
| With back-mounting box | Yes |
| Impact resistance at -20 °C | 20 J |
