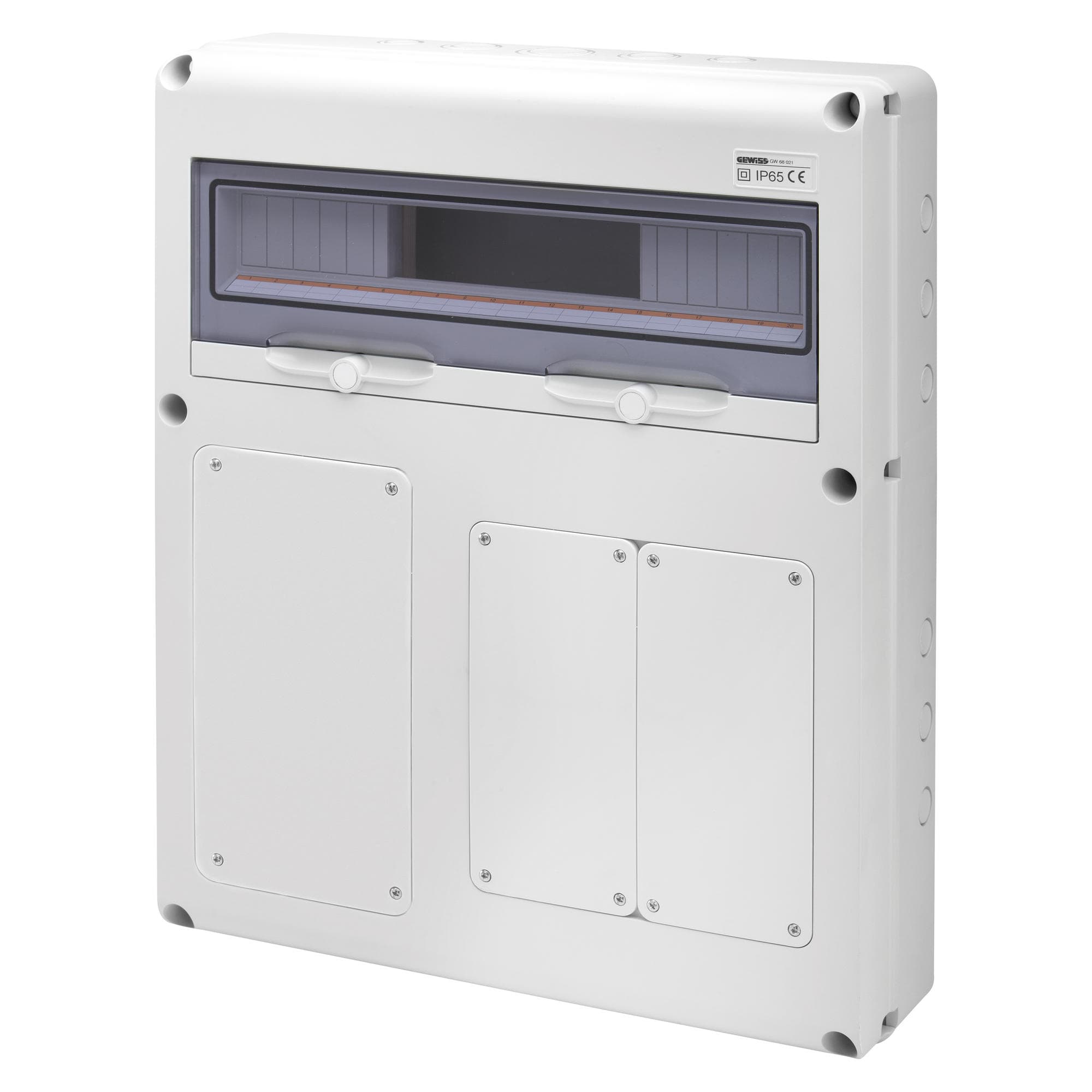

Q-DIN 20 MODULES - 1 FLANGE IB VERTICAL 63A IP67 + 2 IB VERTICAL 16/32A IP67 - IP65

GEWISS

Q-DIN 20 MODULES - 1 FLANGE IB VERTICAL 63A IP67 + 2 IB VERTICAL 16/32A IP67 - IP65

رقم القطعة: GW68022N

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Q-DIN 20 MODULES - 1 FLANGE IB VERTICAL 63A IP67 + 2 IB VERTICAL 16/32A IP67 - IP65

المواصفات

ColourGrey RAL 7035
Glow Wire Test650 °C
Ware Number85381000
Source URLhttps://www.gewiss.com/ww/en/products/product.1000002.1000076.GW68022N
GEWISS FamilyInstallation
GEWISS SeriesIB Range-Interlocked socket-outlets IEC 309 standard
GEWISS Taxonomy PathInstallation > IB Range-Interlocked socket-outlets IEC 309 standard
Datasheet URLhttps://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000002.1000076.GW68022N.pdf
Operating temperature-25 +40 °C
GEWISS Taxonomy PathsInstallation > IB Range-Interlocked socket-outlets IEC 309 standard | Installation > 68 Q-DIN Range-Distribution boards
GEWISS Series (all)IB Range-Interlocked socket-outlets IEC 309 standard | 68 Q-DIN Range-Distribution boards
IP degreeIP65
Thermo-pressure with ball70 °C
Insulation classII
Mechanical resistanceIK08
Accordance with StandardsEN 62208
Installation typeSurface-mounting
No. of modules EN 5002220
Dispersible power A (W)30
Dispersible power B (W)92
VersionEmpty
Houseable socket1 IB Vert. 63 A IP67 + 2 IB Vert. 16/32 A IP67
