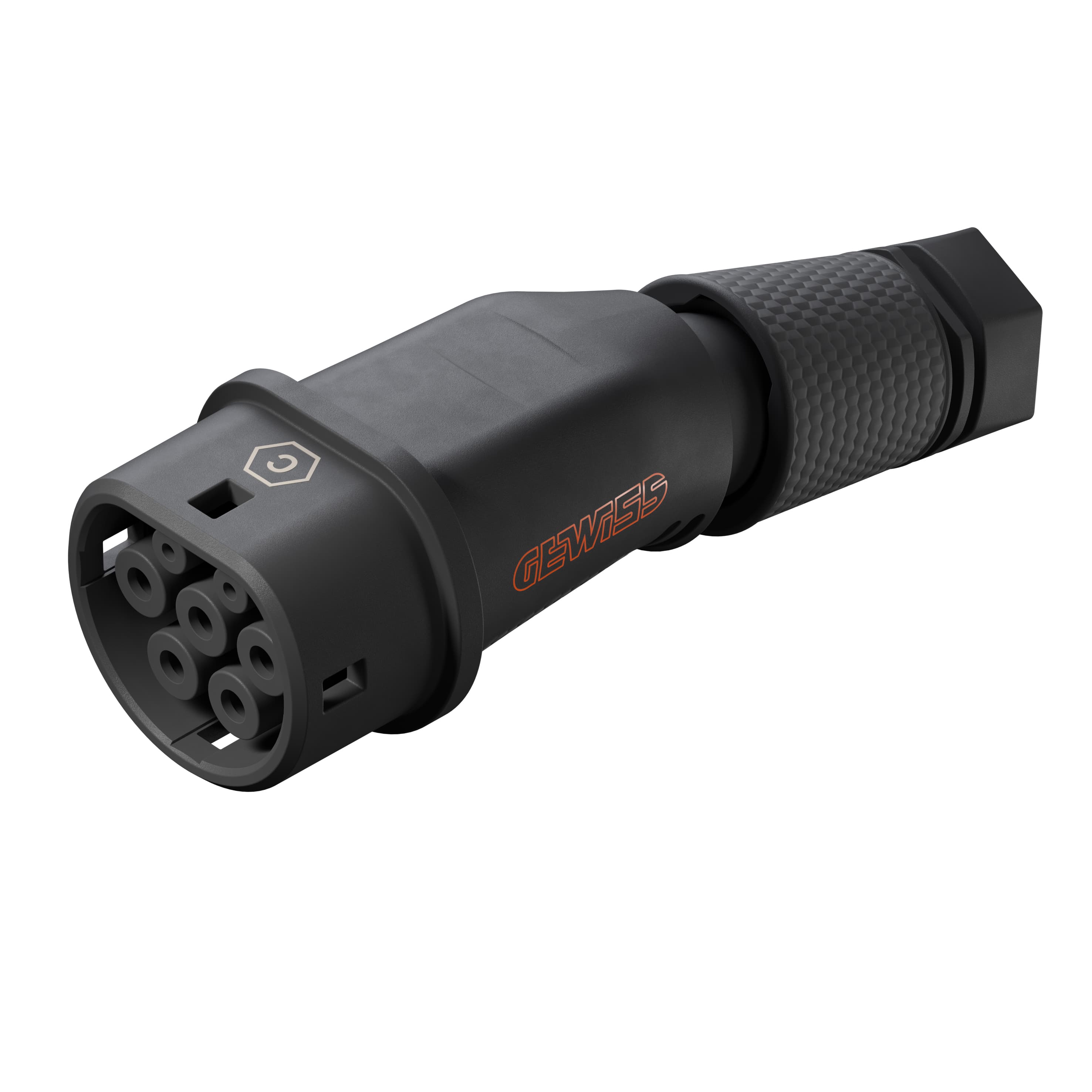

ELECTRIC VEHICLE CHARGING CONNECTOR - MOBILE - TYPE 2 - 3 POLES - 32 A - 22 kW

GEWISS

ELECTRIC VEHICLE CHARGING CONNECTOR - MOBILE - TYPE 2 - 3 POLES - 32 A - 22 kW

رقم القطعة: GWJ5104B

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

ELECTRIC VEHICLE CHARGING CONNECTOR - MOBILE - TYPE 2 - 3 POLES - 32 A - 22 kW

المواصفات

Glow Wire Test850°C (active parts) / 650°C (external)
Ware Number85369010
Source URLhttps://www.gewiss.com/ww/en/products/product.1007390.1007470.GWJ5104B
GEWISS FamilyMobility
GEWISS SeriesCOMPONENTS-Charging components for electric vehicles
GEWISS Taxonomy PathMobility > COMPONENTS-Charging components for electric vehicles
Datasheet URLhttps://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1007390.1007470.GWJ5104B.pdf
IP degreeIP55 (with sheath or cap)
Working temperature-30°C ÷ +50 °C
Stocking temperature-40°C ÷ +70°C
Mechanical resistanceIK10
Rated voltage500 V
Insulation voltage (Ui)500 V
Rated current32 A
Rated frequency (Hz)50/60 Hz
Number of poles7 (L1, L2, L3, N, PE, CP, PP)
Handle colourBlack RAL 9004
Overmold colour-
Cable gland and plug colourBlack RAL 9004
Wiring sectionUp to 6 mm² (L.N.PE); Up to 2.5 mm² (CP.PP
