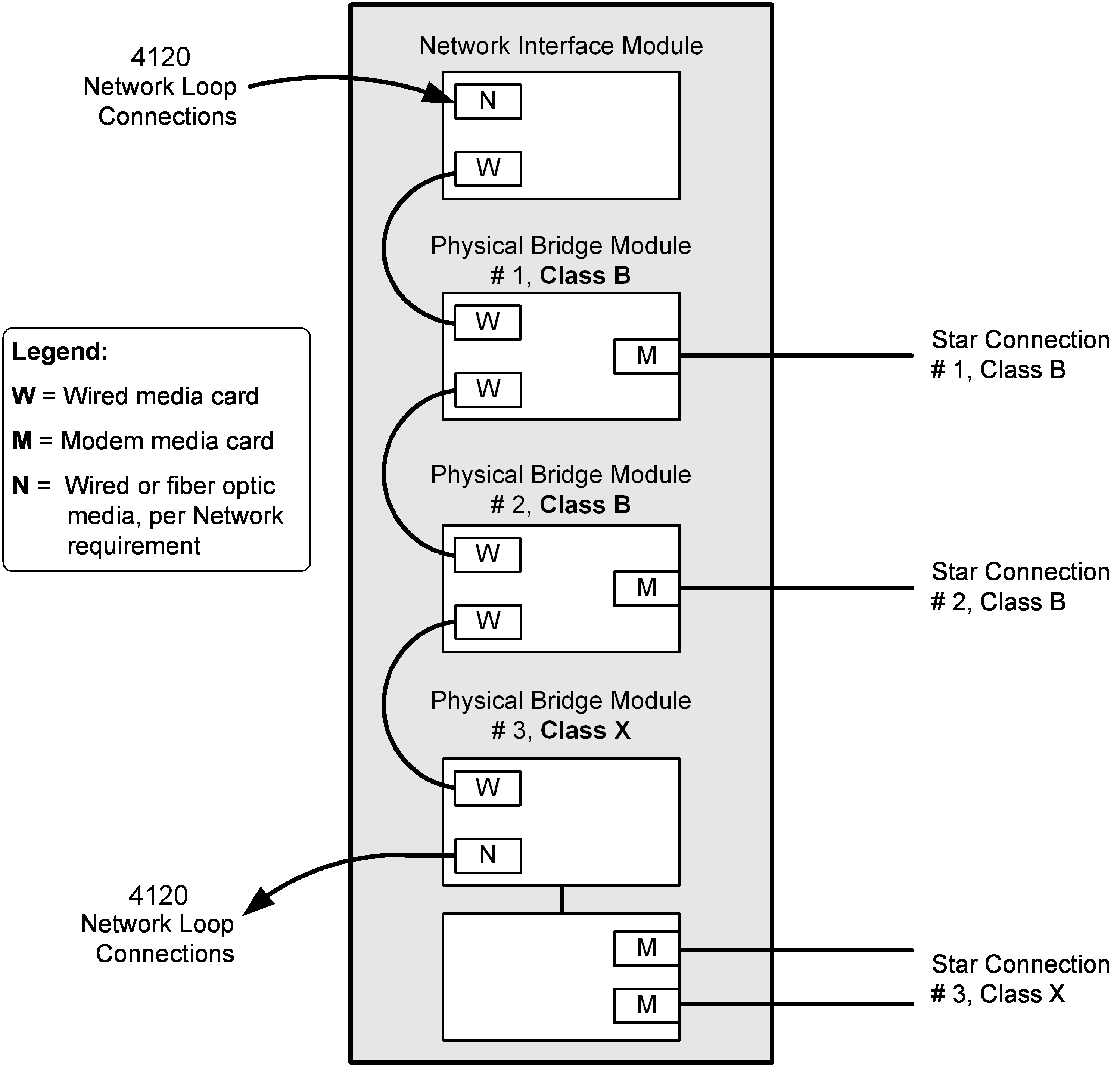

Style 4 Physical Bridges
رقم القطعة: 579-184
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Style 4 Physical Bridges
المواصفات
| Simplex Product Class | Fire Control Panels; Modules and Interfaces; Networking and Integration |
|---|---|
| Simplex Subcategory | Fiber Optic Interfaces; Network Communication Modules; Network Controllers; Network Interface Modules; Remote Annunciator Panels |
| Simplex Category | Fire alarm network; Network interface |
| Operating temperature | 32°F to 120°F (0°C to 49°C) |
| Maximum distance | 26 AWG = 9500 ft (2.85 km) |
| Characteristics | Private leased lines for analog data, point-to-point, full duplex, no line conditioning or signaling required, two wire line interface |
| Class B (Style 4) Connection | One, 2-wire RJ-11 Interface |
| Class X (Style 7) Connection | Two, 2-wire RJ-11 Interfaces |
| Throughput | Up to 38.4 kbps using MNP-5 compression and error correction |
| Operating humidity | Up to 93% RH, non-condensing at 90°F (32°C) maximum |
