Caterpillar

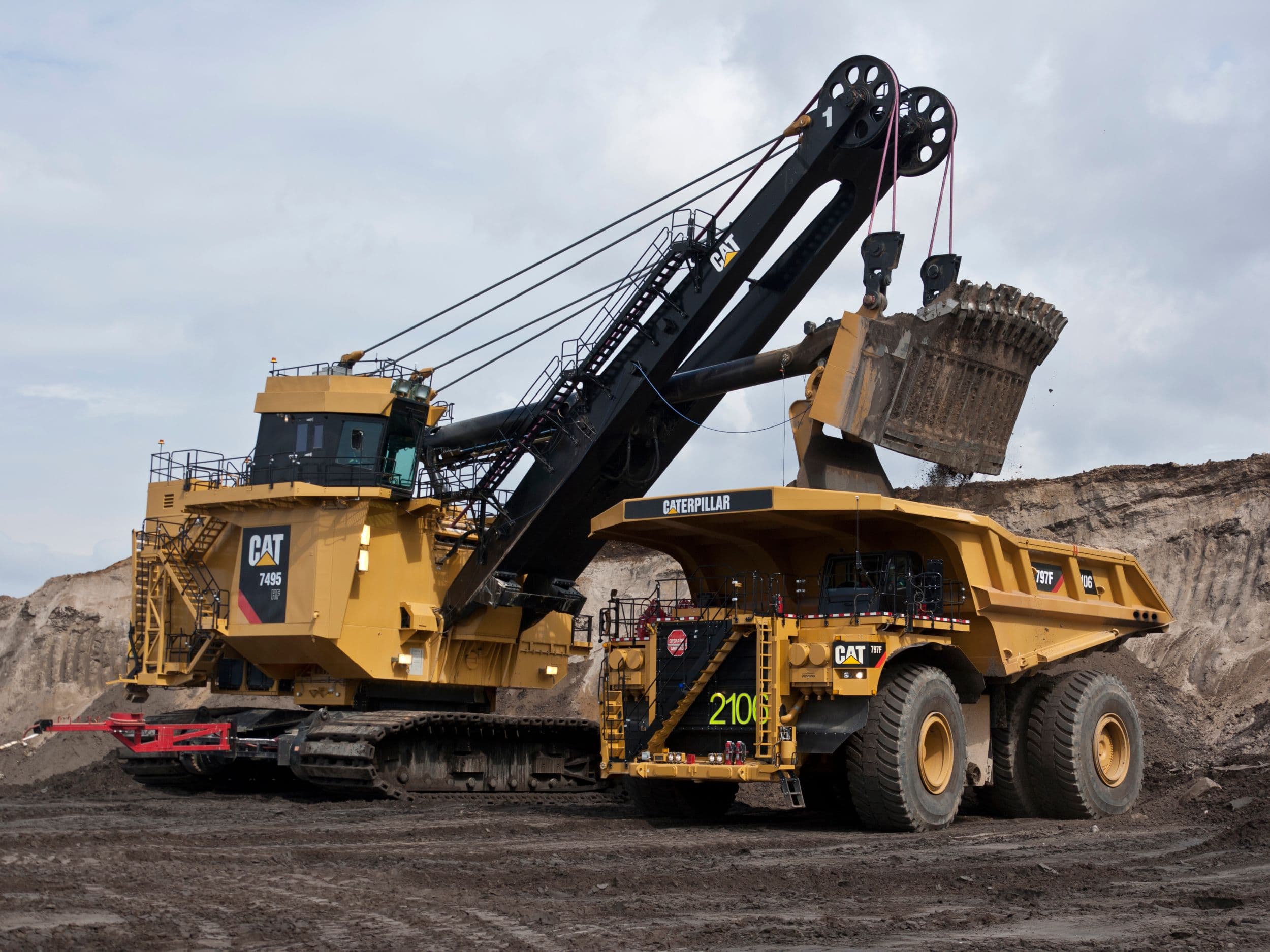

7495 HF Electric Rope Shovel

Name: 7495 HF Electric Rope Shovel
Brand: Caterpillar
SKU: CAT-18417986

رقم القطعة: CAT-18417986

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

7495 HF Electric Rope Shovel

المواصفات

Note (1)	These weights will vary slightly depending upon dipper and optional equipment selection
Note (2)	All specifications are based on a 45 m3 (59 yd3) dipper and standard 317.5 cm (125 in) crawlers.
Note	Dependent on application and material density
Model	7495 HF with HydraCrowd
Product Page	https://www.cat.com/en_US/products/new/equipment/electric-rope-shovels/electric-rope-shovels/18417986.html
Caterpillar Category	Electric Rope Shovels
Caterpillar Category Path	Products > Equipment > Electric Rope Shovels > Electric Rope Shovels > 7495 HF with HydraCrowd
Caterpillar Product Family	equipment
Type	Automatic, single-line system for open gear lubricant and grease
Caterpillar Product Page ID	18417986
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20260623-f5981-f24f7
Operating Weight	1435156 kg
Dipper Payload	109 t
Dipper Capacity	30.6-62.7 m3 (40-82 yd3)
Components (1)	Six pumps (four for open gear lubricant and two for grease) located in an insulated, heated, double-walled lube room
Dipper Payload (Available Dipper Payloads Up To 109 Tonnes [120 tons] When Specified)	109 t
Components (2)	External fast fill from lower level
Working Weight - With Dipper and Standard Links	1435156 kg
Ballast - Furnished By Customer	302614 kg
Planetary Propel	Dual-motor independent drive
Upper Works Overall Width - Including Standard Walkways	12.8 cm
Ground Bearing Pressure - Total Effective Bearing Area (317.5 cm/125 in) Treads	57 m2 (248 kPa); 614 ft2 (36 psi)
Swing	Two planetary gearboxes, each driven by a vertically mounted motor, are located on either side of the revolving frame. Dual-output pinion shafts from each gearbox engage the swing rack.
Hoist	A planetary gearbox with dual-output pinions provides the hoist torque transfer from the electric motor to the hoist drum gear.
Crawler Dimensions - Overall Width 317.5 cm (125 in) Treads	12.7 cm
Ground Bearing Pressure - Note	Ground bearing pressure is dependent upon many factors
Power Requirements - Average Power Demand	945-1322 kW
Power Requirements - Voltage	3 phase, 50/60 Hz, 7,200V
Power Requirements - 50 Hz	6,000V, 6,600V, 7,200V, 11,000V
Drive	IGBT Acutrol drive system
Power Requirements - 60 Hz	7,200V, 13,800V
System Voltage - Nominal	50/60 Hz, 7,200V
Radius of Level Floor	17 m
Dumping Height - With Clearance to Open Dipper Door	9 m
Power Requirements - Peak power	3778 kW
Cutting Height - Maximum	16.8 m
Rope Data - Hoist - No.	2
Rope Data - Boom Suspension - No.	4
Electrical — Note	Other voltage options available to suit customer requirements
Revolving Frame Tail Swing Radius	9.3 m
Rope Data - Dipper Trip - No.	1
Rope Data - Boom Suspension - Diameter	83 mm
Rope Data - Dipper Trip - Diameter	19 mm
Cutting Radius - Maximum	24.3 m
Rope Data - Note	High impact ropes available as an option
Components	One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilize dipper handle.
Rope Data - Hoist - Diameter	70 mm
Crowd (1)	HydraCrowd, hydraulic power skid, located at the front center of the revolving frame deck, powers a large hydraulic cylinder to move the dipper handle fore and aft.
Crowd (2)	(Optional) Rope Crowd, the crowd machinery is located at the front center of the revolving frame, consisting of motor, brake, drum and gearing. Plastic-impregnated crowd and retract ropes are used to move the dipper handle fore and aft.
Maximum Dumping Height	9 m
Dipper Capacities	30.6-62.7 m3 (40-82 yd3)
Dimensions (Approximate) - Optimal Working Ranges* — Note (1)	Optimal working ranges based on loading a Cat 797F truck.
Dimensions (Approximate) - Optimal Working Ranges* — Note (2)	*All specifications are based on a 45 m3 (59 yd3) dipper and standard 317.5 cm (125 in) crawlers.
