Caterpillar

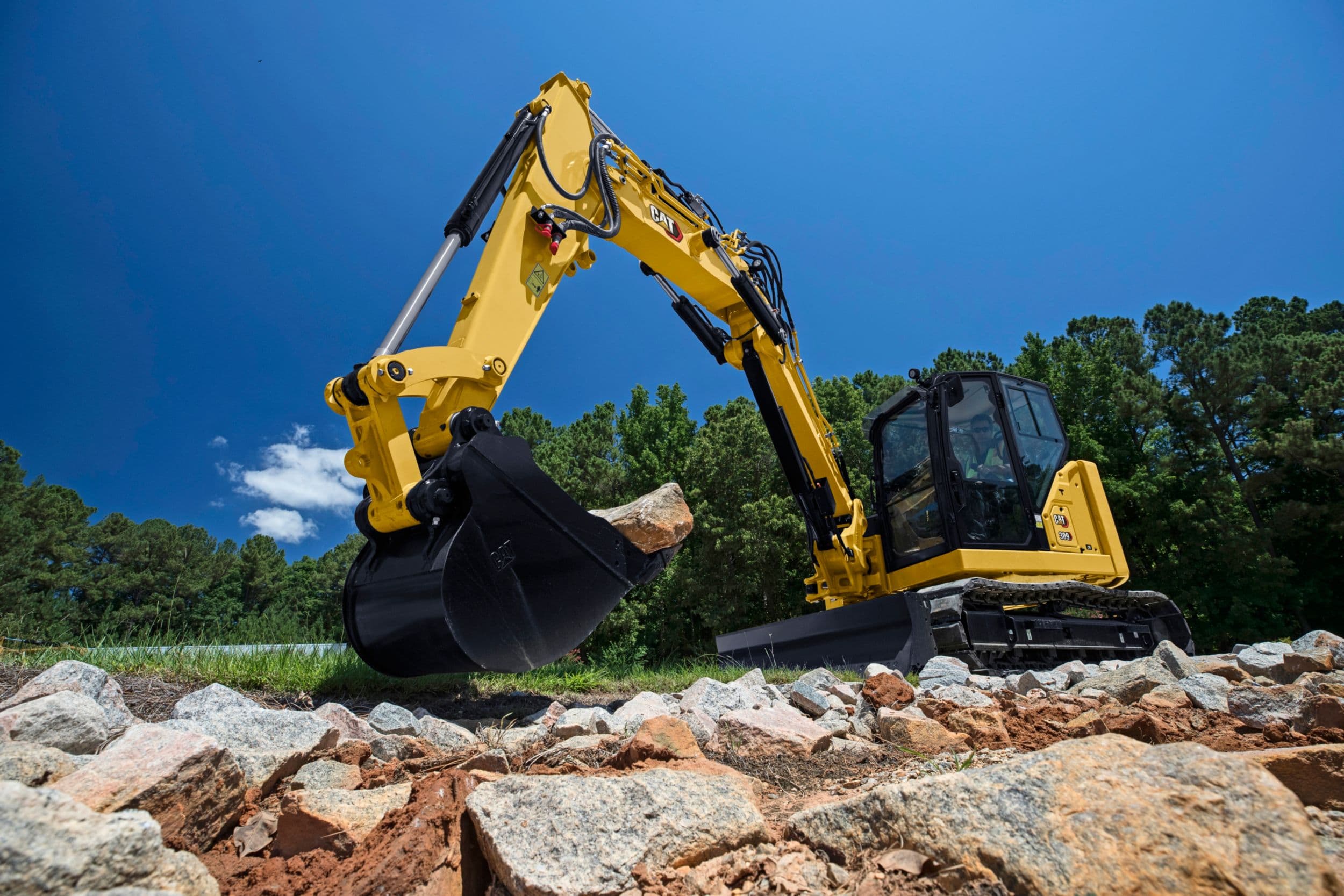

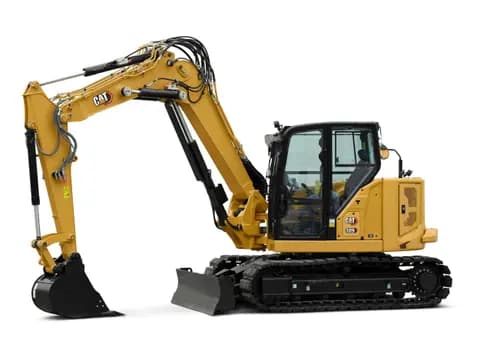

309 CR VAB Mini Hydraulic Excavator

Name: 309 CR VAB Mini Hydraulic Excavator
Brand: Caterpillar
SKU: CAT-130580

رقم القطعة: CAT-130580

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

309 CR VAB Mini Hydraulic Excavator

المواصفات

Engine Model	Cat® C2.8 Turbo
Bore	90 mm
Stroke	110 mm
Displacement	2.8 l
Note (1)	Advertised power is tested per the specified standard in effect at thetime of manufacture.
Note (2)	Net power advertised is the power available at the flywheel when the engine is at the rated speed of 2,400 rpm and the engine is installed with the factory configured fan, air intake system, exhaust system and alternator with a minimum alternator load.
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.90 kg (1.98 lb) or 1 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe).
Note	Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards.
Fuel Tank	147 l
Cooling System	10 l
Hydraulic System	110 l
Model	309 CR VAB
Product Page	https://www.cat.com/en_US/products/new/equipment/excavators/mini-excavators/130580.html
Caterpillar Category	Mini Excavators
Caterpillar Category Path	Products > Equipment > Excavators > Mini Excavators > 309 CR VAB
Caterpillar Product Family	equipment
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump
Caterpillar Product Page ID	130580
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20250226-b3b7e-23fdc
Height	431 mm
Gross Power - ISO 14396	55.4 kW
Operating Weight	10020 kg
Counterweight	250 kg
Dig Depth	3815 mm
Recyclability	96%
Hydraulic Tank	53 l
Engine Oil	8.8 l
Weights — Note (1)	*Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, standard stick, blade, and no bucket.
Net Power	51.2 kW
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	51.2 kW
Vertical Wall	2520 mm
Maximum Blade Height	408 mm
Maximum Reach	6515 mm
Weights — Note (2)	**Maximum Weight is based on steel tracks with rubber pads, (500 kg/1,103 lb) counterweight, operator, full fuel tank, standard stick, blade, and no bucket.
Track Belt/Shoe Width	450 mm
Maximum Dig Height	5220 mm
Tail Swing with Counterweight	1585 mm
Maximum Dump Clearance	3450 mm
Boom In Reach	3120 mm
Maximum Blade Depth	484 mm
Tail Swing without Counterweight	1450 mm
Stick Length	1820 mm
Ground Clearance	356 mm
Boom Swing - Right	50 degrees
Overall Shipping Length*	6495 mm
Cab Height	2541 mm
Boom Swing - Left	60 degrees
Steel Tracks with Pads	330 kg
Travel Speed - High	4.7 km/h
Travel Speed - Low	2.6 km/h
Ground Pressure - Minimum Weight	35.6 kPa
Maximum Traction Force - High Speed	33 kN
Ground Pressure - Maximum Weight	38.9 kPa
Maximum Traction Force - Low Speed	84.8 kN
Gradeability - Maximum	30 degrees
Pump Flow at 2,400 rpm	233 L/min
Operating Pressure - Travel	285 bar
Operating Pressure - Equipment	285 bar
Operating Pressure - Swing	250 bar
Digging Force - Bucket	62 kN
Digging Force - Stick - Standard	42.3 kN
Hydraulic System — Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Machine Swing Speed	10 r/min
Roll Over Protective Structure (ROPS)	ISO 12117-2:2008
Top Guard	ISO 10262:1998 (Level I)
Operator Sound Pressure (ISO 6396:2008)	72 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	99 dB(A)
Sound — Note	European Union Directive "2000/14/EC"
Width - Standard	2470 mm
Width - Wide	2640 mm
Counterweight (extra)	500 kg
Swing Bearing Height	756 mm
Maximum Auxiliary Circuit - Secondary - Flow at Pump	33 L/min
Boom Swing Right	935 mm
Maximum Auxiliary Circuit - Primary - Pressure at Pump	285 bar
Maximum Auxiliary Circuit - Secondary - Pressure at Pump	285 bar
Overall Track Width	2470 mm
Maximum Auxiliary Circuit - Primary - Flow at Pump	140 L/min
Maximum Operating Weight with Standard Stick**	10020 kg
Maximum Reach at Ground Level	6300 mm
Minimum Operating Weight with Standard Stick*	9190 kg
Overall Undercarriage Length	3200 mm
Boom Swing Left	605 mm
Specifications — Note	The 309 CR VAB specifications are based on a machine configured with a Long (L) Undercarriage.
Dimensions - VAB Out — Dig Depth	3460 mm
Standard Stick	35 kg
Dimensions - VAB Out — Maximum Reach at Ground Level	7715 mm
Dimensions - VAB Out — Vertical Wall	3725 mm
Dimensions - VAB Out — Boom in Reach	2710 mm
Dimensions - VAB Out — Maximum Reach	7885 mm
Dimensions - VAB Out — Maximum Dump Clearance	6285 mm
Dimensions - VAB Out — Maximum Dig Height	8180 mm
