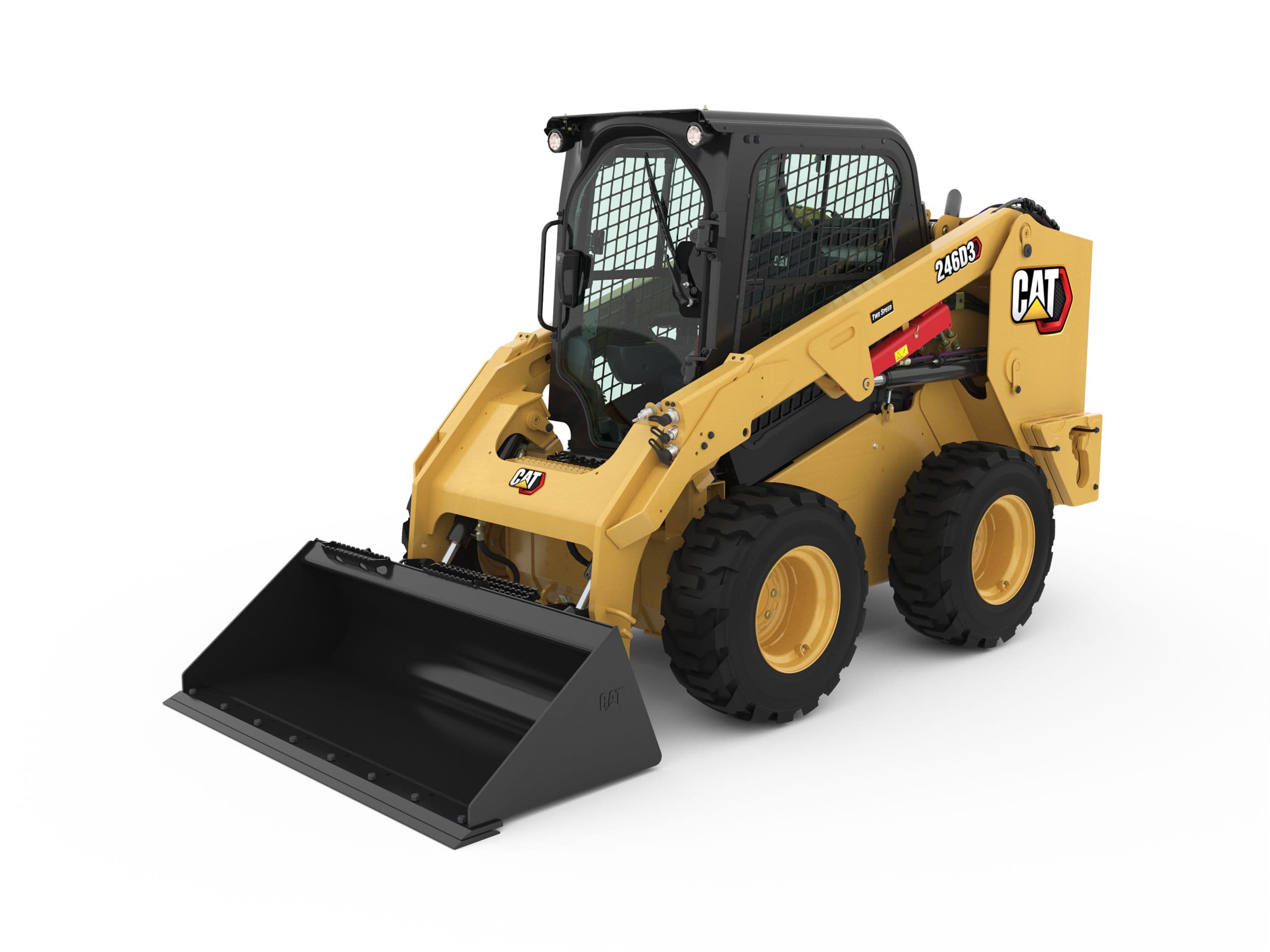

246D3 Skid Steer Loader

Name: 246D3 Skid Steer Loader
Brand: Caterpillar
SKU: CAT-30056688547513

رقم القطعة: CAT-30056688547513

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

246D3 Skid Steer Loader

المواصفات

Engine Model	Cat C3.3B DIT (turbo)
Gross Power - SAE J1995:2014	55.4 kW
Bore	94 mm
Stroke	120 mm
Displacement	3.3 l
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2)	*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (3)	**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1676 mm (68 in) low profile bucket, Cat PC 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Fuel Tank	105 l
Cooling System	14 l
Hydraulic System	52 l
Engine Crankcase	11 l
Model	246D3
Product Page	https://www.cat.com/en_US/products/new/equipment/skid-steer-and-compact-track-loaders/skid-steer-loaders/30056688547513.html
Caterpillar Category	Skid Steer Loaders
Caterpillar Category Path	Products > Equipment > Skid Steer and Compact Track Loaders > Skid Steer Loaders > 246D3
Caterpillar Product Family	equipment
Caterpillar Product Page ID	30056688547513
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20190508-c38a1-cf02d
Operating Weight	3392 kg
Hydraulic Tank	39 l
Ground Clearance	226 mm
Net Power - ISO 9249	54.9 kW
Wheel Base	1249 mm
Height - Top of Cab	2110 mm
Peak Torque - 1,500 rpm - SAE J1995	265 N·m
Net Power - SAE 1349	54.4 kW
Tipping Load	2000 kg
Breakout Force - Tilt Cylinder	3336 kg
Rated Operating Capacity with Optional Counterweight	1095 kg
Departure Angle	26°
Length - With Bucket on Ground	3708 mm
Maximum Dump Angle	39°
Length - Without Bucket	2993 mm
Maximum Reach - With Arms Parallel to Ground	1388 mm
Turning Radius from Center - Coupler	1401 mm
Maximum Overall Height	4032 mm
Turning Radius from Center - Bucket	2181 mm
Bucket Pin Height - Carry Position	200 mm
Rack Back Angle - Maximum Height	96°
Turning Radius from Center - Machine Rear	1806 mm
Reach - Maximum Lift/Dump	600 mm
Bucket Pin Height - Maximum Lift	3154 mm
Clearance at Maximum Lift and Dump	2465 mm
ROPS	ISO 3471:2008
FOPS	ISO 3449:2005 Level I
Travel Speed - Forward or Reverse - One Speed	12.5 km/h
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure	28000 kPa
Hydraulic Flow - Standard - Loader Hydraulic Pressure	23000 kPa
Hydraulic Flow - Standard - Loader Hydraulic Flow	86 L/min
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	33 kW
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow	121 L/min
Outside Cab***	101 dB(A)
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)	57 kW
Inside Cab**	81 dB(A)
Net Flywheel Power	54.4 kW
Rated Operating Capacity	1000 kg
Vehicle Width over Tires	1676 mm
Bumper Overhang - Behind Rear Axle	1083 mm
Chain Box - Each Side	12.7 l
Travel Speed - Forward or Reverse - Two Speed Option	17.7 km/h
